MavalPart #: 95405M

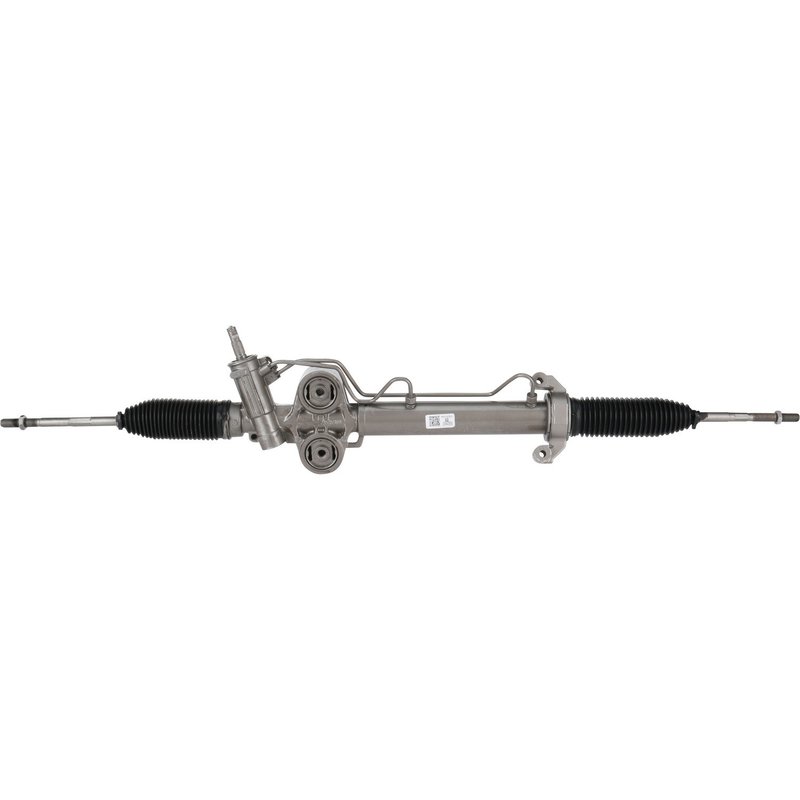

Maval 95405M Rack and Pinion Assembly
108 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$551.75Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Remanufactured Rack and Pinion
Fitment: Chevrolet and GMC, Sierra 1500 and Silverado 1500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Rack and Pinion Assembly options
Maval Remanufactured Rack and Pinion for Silverado and Sierra
The Maval 95405M remanufactured rack and pinion is a hydraulic steering gear built for select Chevrolet Silverado 1500 and GMC Sierra 1500 applications. It is a direct-fit steering replacement for 2007-2013 trucks listed below, with inner tie rods included and OE-style hydraulic port sizing for proper line routing.
Key Features
- Remanufactured hydraulic rack and pinion assembly
- Inner tie rods included
- 3.25 total turns lock to lock
- Input shaft diameter: 0.661 in. / 16.779 mm
- Input shaft length: 2.25 in. / 57.15 mm
- Rack length: 55 in. / 1397 mm
- Pressure port thread size: 12
- Return port thread size: 12
- Cross-reference: Cardone Reman 22-1036
Product Details
This Maval Remanufactured Rack and Pinion, part number 95405M, is built for hydraulic steering systems used on Silverado 1500 and Sierra 1500 trucks. It is listed for 2007-2011 Chevrolet Silverado 1500, 2009-2011 Chevrolet Silverado 1500 without tow package, 2012-2013 Chevrolet Silverado 1500 without tow package or off-road package, 2007-2011 GMC Sierra 1500 without towing package, and 2012-2013 GMC Sierra 1500 without tow package or off-road package, including select non-hybrid configurations. The same-size pressure and return ports require correct hose placement to avoid upper pinion seal damage, with the pressure line installed in the bottom port.
The Maval 95405M is a remanufactured rack and pinion assembly for drivers replacing worn steering components on Chevrolet Silverado 1500 and GMC Sierra 1500 models. It is a fitment-specific hydraulic steering gear with OE-style dimensions and port sizing for the listed applications.
Common Problems This Part Can Address
- Steering play or looseness in the wheel
- Hydraulic steering fluid leaks at the rack or pinion
- Rough, inconsistent, or noisy steering response
- Excessive steering effort from a worn steering gear
- Internal wear in the rack and pinion assembly
Installation Notes and Tips
- Fits 2007-2011 Chevrolet Silverado 1500, N/A.
- Fits 2009-2011 Chevrolet Silverado 1500, N/A, without tow package.
- Fits 2012-2013 Chevrolet Silverado 1500, N/A, without tow package and without off-road package.
- Fits 2007-2011 GMC Sierra 1500, N/A, without towing package.
- Fits 2012-2013 GMC Sierra 1500, N/A, without tow package and without off-road package; select listings also exclude hybrid models.
- Because the pressure and return ports are the same size, connect the pressure line to the bottom port as noted for these applications.
- Verify steering system configuration and vehicle options before installation.
Quality Assurance
Maval remanufactured steering components are rebuilt for direct replacement use in the specified applications. This part number 95405M is cataloged for the listed Chevrolet Silverado 1500 and GMC Sierra 1500 fitments and cross-references Cardone Reman 22-1036 for the same application.
| Brand | Maval |
|---|---|
| Part Number | 95405M |
| Position | Remanufactured Rack and Pinion |
| Type | Hydraulic |
| Total Turns Lock To Lock | 3.25 |
| Inner Tie Rods Included | Yes |
| Input Shaft Diameter | 0.661 |
| Input Shaft Diameter | 16.779 |
| Input Shaft Length | 2.25 |
| Input Shaft Length | 57.15 |
| New or Remanufactured | Remanufactured |
| Pressure Port Thread Size | 12 |
| Rack Length | 1397 |
| Rack Length | 55 |
| Return Port Thread Size | 12 |
This part fits 108 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Silverado 1500 | Crew Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | Chevrolet | Silverado 1500 | XFE | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Silverado 1500 | Extended Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Silverado 1500 | Standard Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | GMC | Sierra 1500 | Crew Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | GMC | Sierra 1500 | WT | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | SLT | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | SLE | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | SL | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | Denali | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | Standard Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | GMC | Sierra 1500 | XFE | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2013 | GMC | Sierra 1500 | Standard Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2013 | GMC | Sierra 1500 | Extended Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | Chevrolet | Silverado 1500 | Crew Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | Chevrolet | Silverado 1500 | XFE | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Silverado 1500 | Standard Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Silverado 1500 | Standard Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | Chevrolet | Silverado 1500 | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | Chevrolet | Silverado 1500 | Extended Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | GMC | Sierra 1500 | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | GMC | Sierra 1500 | Crew Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | GMC | Sierra 1500 | Denali | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | XFE | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | WT | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | SLT | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | SLE | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | SL | Crew Cab Pickup | RWD | N/A | (exc. Hybrid); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2012 | GMC | Sierra 1500 | Standard Cab Pickup | 4WD | N/A | (w/o Tow Package); (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | GMC | Sierra 1500 | Standard Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2012 | GMC | Sierra 1500 | Extended Cab Pickup | RWD | N/A | (w/o Off-Road Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion | |
| 2011 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2011 | GMC | Sierra 1500 | 4WD | N/A | Without Towing package; Reman Rack and Pinion Assembly | ||
| 2010 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | Silverado 1500 | LS | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2010 | GMC | Sierra 1500 | 4WD | N/A | Without Towing package; Reman Rack and Pinion Assembly | ||
| 2009 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | WT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LTZ | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | 4WD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | RWD | N/A | (w/o Tow Package); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620.; Remanufactured Rack and Pinion |
| 2009 | GMC | Sierra 1500 | 4WD | N/A | Without Towing package; Reman Rack and Pinion Assembly | ||
| 2008 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LS | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | Silverado 1500 | LT | Extended Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2008 | GMC | Sierra 1500 | 4WD | N/A | Without Towing package; Reman Rack and Pinion Assembly | ||
| 2007 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 | LTZ | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | RWD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 | WT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | Silverado 1500 | LT | Crew Cab Pickup | 4WD | N/A | Pressure and return ports must be connected properly to prevent damage to the upper pinion seal due to high pressure; install pressure line in bottom port and consult warning label 640620.; Remanufactured Rack and Pinion |
| 2007 | GMC | Sierra 1500 | 4WD | N/A | Without Towing package; Reman Rack and Pinion Assembly |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
1920748922-1036
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
