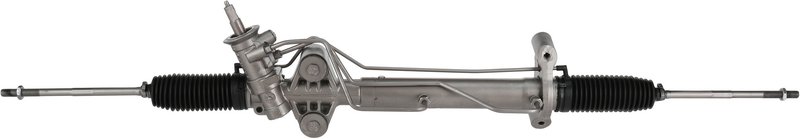

Maval 95437M Rack and Pinion Assembly

Maval 95437M Remanufactured Rack and Pinion

The Maval 95437M is a remanufactured rack and pinion assembly for select Chevrolet Express 1500 and GMC Savana 1500/2500 applications. Built with steel and aluminum casting materials and supplied with inner tie rods included, it is specified for direct steering system replacement where precise rack travel and port/thread dimensions matter.

Key Features

• Remanufactured rack and pinion assembly from Maval
• Part number 95437M for application matching and catalog lookup
• Inner tie rods included
• Steel and aluminum casting construction
• 4 mounting holes with 101.6 mm (4 in.) spacing
• 3.25 total turns lock to lock
• O-ring hose port type
• Pressure port thread size: M18 x 1.5
• Return port thread size: M16 x 1.5
• Rack length: 1358.9 mm (53.5 in.)

Product Details

Maval 95437M is a remanufactured steering rack built for vehicles that use the listed mounting, shaft, and hydraulic port specifications. The assembly measures 1358.9 mm in rack length, uses a 19.96 mm input shaft diameter, and has a 44.45 mm input shaft length with 61.09 mm thread length. Its 3.25 turns lock to lock supports steering response consistent with the original application, while the included inner tie rods simplify parts matching during steering service. This part cross-references Cardone Reman 22-1018 for the same application.

Fitment

• Fits 2014 Chevrolet Express 1500, N/A
• Fits 2003-2014 GMC Savana 1500, N/A
• Fits 2003-2013 Chevrolet Express 1500, N/A
• Fits 2003-2006 Chevrolet Express 2500, N/A; w/7300lb GVW
• Fits 2003-2006 GMC Savana 2500, N/A
• Fits 2003-2005 Chevrolet Express 2500, N/A

Common Replacement Reasons

• Excessive steering play or looseness
• Fluid leakage at the rack or hydraulic ports
• Binding, rough steering, or inconsistent wheel return
• Worn internal rack components or tie rod wear
• Noise during steering input

Installation Notes

Verify the mounting hole count, mounting-hole spacing, input shaft dimensions, and pressure/return port thread sizes before installation. Confirm hydraulic hose port type is O-ring and compare the rack length and lock-to-lock specification against the original unit. For Chevrolet Express 1500 and GMC Savana applications, matching the vehicle year and GVW notes is important for correct steering system fitment.

Quality Assurance

Maval remanufactured steering components are rebuilt to restore serviceable rack and pinion function for the listed applications. Part number 95437M is cataloged for direct replacement use in the specified Chevrolet Express and GMC Savana fitments.
