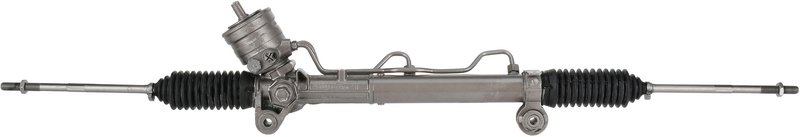

Maval 95472M Rack and Pinion Assembly
Maval 95472M Remanufactured Rack and Pinion
Maval 95472M is a remanufactured rack and pinion assembly for select Buick Lucerne and Cadillac DTS applications. It is built with inner tie rods included and uses an O-ring hose port design for direct steering system service.
The Maval remanufactured rack and pinion line focuses on restoring steering gear function with application-specific fitment and OE-style port and shaft dimensions. This 95472M unit is specified with 2.25 total turns lock to lock, a steel and aluminum casting, and mounting dimensions that match the listed vehicles.
Key Features
- Remanufactured rack and pinion assembly
- Inner tie rods included
- 2.25 total turns lock to lock
- Steel and aluminum casting material
- O-ring hose port type
- Pressure port thread size: M18 x 1.5
- Return port thread size: M16 x 1.5
- Rack length: 50.63 in. (1285.88 mm)
- Input shaft diameter: 0.66 in. (16.76 mm)
- Mounting hole quantity: 2
Vehicle Fitment
- Fits 2008-2011 Buick Lucerne, N/A, with 17 inch wheels; reman rack and pinion assembly.
- Fits 2006-2011 Cadillac DTS, N/A, with soft ride suspension FE1; excludes limo and hearse; with 17 inch tires; 2.25 pinion turns lock to lock.
- Fits 2006-2007 Buick Lucerne, N/A, with firm ride suspension FL1; with 19 inch tires; 2.25 pinion turns lock to lock.
Detailed Description
This Maval 95472M rack and pinion assembly is a direct steering gear replacement for the listed Buick Lucerne and Cadillac DTS models. It is engineered around the specified rack length, mounting-hole spacing, input shaft dimensions, and port thread sizes to match the original steering layout on those vehicles. This part cross-references Cardone Reman 22-1034 for the same application.
Use this remanufactured rack and pinion when servicing steering systems on a 2008-2011 Buick Lucerne, a 2006-2011 Cadillac DTS with FE1 soft ride suspension, or a 2006-2007 Buick Lucerne with FL1 firm ride suspension. The 95472M part number is also a useful reference when verifying steering gear replacement for these exact fitments.
Common Repair Uses
- Steering play or looseness in the wheel
- Fluid leakage at rack seals or hose ports
- Uneven or inconsistent steering response
- Excessive steering effort during turns
- Noise from worn steering gear components
Installation Notes and Tips
Confirm wheel and suspension configuration before ordering, since fitment varies by Lucerne and DTS trim and tire setup. Verify the pressure and return port thread sizes, input shaft diameter, and mounting-hole spacing against the original steering gear before installation. After replacement, perform a professional alignment and inspect the steering system for leaks and proper centering.
Quality Assurance
Maval remanufactured steering components are rebuilt to restore proper rack and pinion operation for the listed applications. Verify all vehicle-specific details, including suspension package and wheel or tire size, to ensure correct installation of part number 95472M.
| Brand | Maval |
|---|---|
| Part Number | 95472M |
| Position | Reman Rack and Pinion Assembly |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 2.25 |
| Inner Tie Rods Included | Yes |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 16.75 |
| Distance Between Mounting Holes | 425.45 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.66 |
| Input Shaft Diameter | 16.76 |
| Input Shaft Length | 1.13 |
| Input Shaft Length | 28.58 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length | 1285.88 |
| Rack Length | 50.63 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.38 |
| Thread Length | 60.33 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | 4.6L | V8 | N/A | With 17 inch wheels; Reman Rack and Pinion Assembly |
| 2011 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2010 | Buick | Lucerne | 4.6L | V8 | N/A | With 17 inch wheels; Reman Rack and Pinion Assembly |
| 2010 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2009 | Buick | Lucerne | 4.6L | V8 | N/A | With 17 inch wheels; Reman Rack and Pinion Assembly |
| 2009 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2008 | Buick | Lucerne | 4.6L | V8 | N/A | With 17 inch wheels; Reman Rack and Pinion Assembly |
| 2008 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2007 | Buick | Lucerne | 4.6L | V8 | N/A | (w/Firm Ride Suspension FL1); (w/19" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2007 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2006 | Buick | Lucerne | 4.6L | V8 | N/A | (w/Firm Ride Suspension FL1); (w/19" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2006 | Cadillac | DTS | N/A | (w/soft ride suspension FE1); (Exc. Limo and Hearse); (w17" Tires); 2.25 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
