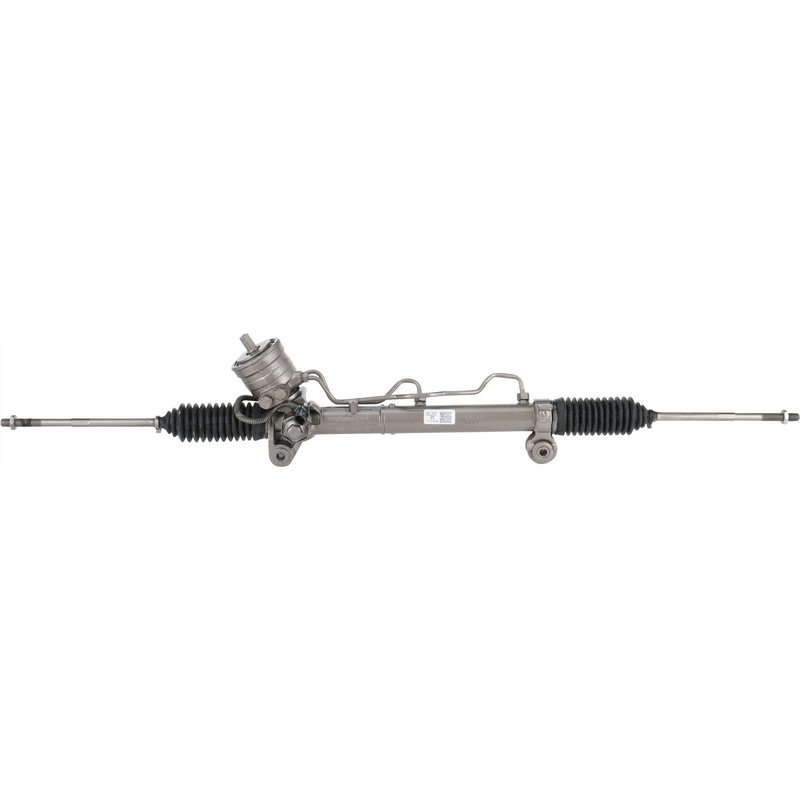

Maval 95473M Rack and Pinion Assembly
Maval Remanufactured Rack and Pinion 95473M
The Maval 95473M remanufactured rack and pinion assembly is built for direct steering system replacement on select Buick Lucerne and Cadillac DTS applications. It is a remanufactured rack and pinion assembly with inner tie rods included, steel and aluminum casting materials, and O-ring hose ports for a service-ready steering repair.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Part number 95473M for application matching and ordering
- Inner tie rods included
- 2 mounting holes with 16.75 in. / 425.45 mm mounting-hole spacing
- 2.13 total turns lock to lock
- Input shaft diameter: 0.66 in. / 16.76 mm
- Input shaft length: 1.13 in. / 28.58 mm
- Pressure port thread size: M18 x 1.5
- Return port thread size: M16 x 1.5
- Rack length: 50.63 in. / 1285.88 mm
Product Details
Maval’s remanufactured rack and pinion line focuses on restoring steering gear function with application-specific dimensions and port configurations. This 95473M unit uses an O-ring hose port type and a steel/aluminum casting construction, with thread lengths and shaft dimensions listed to support accurate fitment verification before installation. It cross-references Cardone Reman 22-1033 for the same application.
Vehicle Fitment
- Fits 2008-2011 Buick Lucerne, with 18 inch wheels; reman rack and pinion assembly.
- Fits 2007 Buick Lucerne, with 19 inch tires; with Sport Suspension FE3; 2.12 pinion turns lock to lock; remanufactured rack and pinion.
- Fits 2006 Buick Lucerne, with 18 inch tires; with Sport Suspension FE3; 2.12 pinion turns lock to lock; remanufactured rack and pinion.
- Fits 2006-2011 Cadillac DTS, with 18 inch tires; except limo and hearse; with Sport Suspension FE3; 2.12 pinion turns lock to lock; remanufactured rack and pinion.
Common Steering Issues This Part Addresses
- Excessive steering play or loose steering feel
- Internal rack wear that affects steering response
- Leaking steering gear seals or hydraulic connections
- Uneven steering effort during turns
- Noise or binding from a worn rack and pinion assembly
Installation Notes
Verify wheel size, suspension package, and port/thread dimensions against the vehicle before installation. Confirm the input shaft diameter, mounting-hole spacing, and hose port type match the original steering gear on the Buick Lucerne or Cadillac DTS application. After installation, perform a full alignment and inspect the hydraulic system for proper routing and sealing.
Quality Assurance
This Maval remanufactured rack and pinion assembly is built as a steering replacement component for the listed applications and is identified by part number 95473M. Use the fitment notes and dimensional specifications to confirm application accuracy before service.
| Brand | Maval |
|---|---|
| Part Number | 95473M |
| Position | Reman Rack and Pinion Assembly |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 2.13 |
| Inner Tie Rods Included | Yes |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 16.75 |
| Distance Between Mounting Holes | 425.45 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.66 |
| Input Shaft Diameter | 16.76 |
| Input Shaft Length | 1.13 |
| Input Shaft Length | 28.58 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length | 1285.88 |
| Rack Length | 50.63 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.38 |
| Thread Length | 60.33 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Buick | Lucerne | 4.6L | V8 | N/A | With 18 inch wheels; Reman Rack and Pinion Assembly |
| 2011 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2010 | Buick | Lucerne | 4.6L | V8 | N/A | With 18 inch wheels; Reman Rack and Pinion Assembly |
| 2010 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2009 | Buick | Lucerne | 4.6L | V8 | N/A | With 18 inch wheels; Reman Rack and Pinion Assembly |
| 2009 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2008 | Buick | Lucerne | 4.6L | V8 | N/A | With 18 inch wheels; Reman Rack and Pinion Assembly |
| 2008 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2007 | Buick | Lucerne | 4.6L | V8 | N/A | (w/19" Tires); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2007 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion | ||
| 2006 | Buick | Lucerne | 4.6L | V8 | N/A | (w/18" Tires); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2006 | Cadillac | DTS | N/A | (w/18" Tires); (Exc. Limo and Hearse); (w/Sport Suspension FE3); 2.12 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
