OE Quality
60-Day Returns

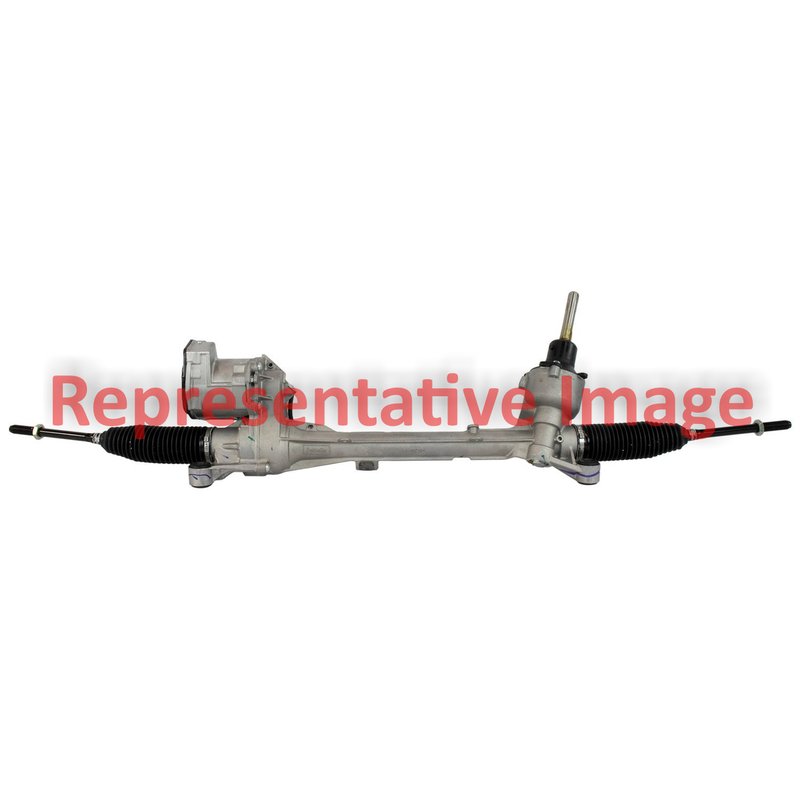

Maval 95479M Rack and Pinion Assembly
Remanufactured Steering Rack for 2009 F-150
This Maval remanufactured rack and pinion assembly is built for the 2009 Ford F-150 and is identified by part number 95479M. It is a direct steering gear replacement for trucks with the listed factory application, with tie rod ends included and OE-style mounting dimensions.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Fits 2009 Ford F-150, N/A position
- Part number 95479M for application matching
- Aluminum casting material for the rack housing
- 2 mounting holes with 16.94 in. / 430.23 mm spacing
- 3.13 total turns lock to lock
- O-ring hose port type and 0.438 in. return port ID
- Input shaft diameter: 0.72 in. / 18.39 mm
- Input shaft length: 1.94 in. / 49.2 mm
- Tie rod ends included
Product Details
Maval 95479M is a remanufactured rack and pinion assembly for the 2009 Ford F-150, built around the original steering geometry and connection points. The aluminum housing, 55.5 in. rack length, and 3.03 in. thread length support a factory-style replacement fit, while the O-ring hose ports and specified input shaft dimensions help confirm proper system matching. This part cross-references Cardone Reman 22-2038 and OE number 9L3Z-3504A for the same application.
Common Steering Issues This Part Can Address
- Excessive steering play or loose steering feel
- Fluid leakage at rack or hose port connections
- Uneven steering response caused by worn internal rack components
- Noisy steering operation from a failing rack and pinion assembly
- Difficulty maintaining consistent steering control on the road
Installation Notes and Tips
Verify the 2009 Ford F-150 application against the vehicle’s steering configuration before installation. Match the mounting hole spacing, input shaft dimensions, hose port type, and return port size to the original unit before removal. After installation, perform a full alignment and inspect the power steering system for leaks and proper steering wheel centering.
Quality Assurance
This Maval remanufactured rack and pinion assembly is produced as a steering replacement component for the listed Ford F-150 application. Use the part number 95479M and the OE cross-reference information to confirm correct selection before service.
| Brand | Maval |
|---|---|
| Part Number | 95479M |
| Position | Remanufactured Rack and Pinion |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 3.13 |
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 16.94 |
| Distance Between Mounting Holes | 430.23 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.72 |
| Input Shaft Diameter | 18.39 |
| Input Shaft Length | 1.94 |
| Input Shaft Length | 49.2 |
| Rack Length | 1409.7 |
| Rack Length | 55.5 |
| Return Port ID Size | 0.438 |
| Thread Length | 3.03 |
| Thread Length | 77.06 |
| Tie Rod Ends Included | Yes |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Wheel Base | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Ford | F-150 | 133.0" | N/A | Fits all models.; Remanufactured Rack and Pinion |
| 2009 | Ford | F-150 | 126.0" | N/A | Fits all models.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
