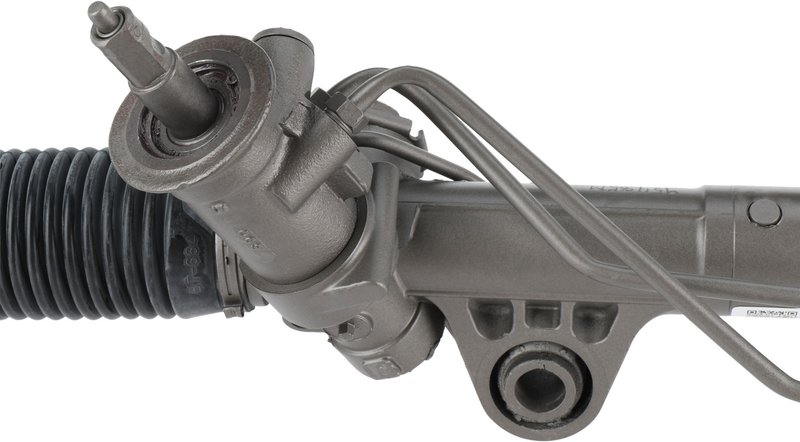

Maval 95485M Rack and Pinion Assembly

Overview of Maval Remanufactured Rack and Pinion Assembly

The Maval Remanufactured Rack and Pinion Assembly (Part Number 95485M) is designed specifically for Chevrolet and GMC trucks, including the Sierra 1500, Sierra 1500 Classic, Silverado 1500, and Silverado 1500 Classic models. This steering gear component ensures precise control and reliable performance for your vehicle's steering system.

• Remanufactured rack and pinion assembly for Chevrolet and GMC trucks
• Constructed with durable aluminum casting material
• Includes tie rod ends for complete installation
• Features 2 mounting holes with a 14.93 mm distance between holes
• Input shaft diameter of 16.8 mm and length of 43 mm
• Pressure port thread size M18 x 1.5 and return port thread size M16 x 1.5
• Total turns lock to lock: 3.3 for responsive steering

Details on the Remanufactured Rack and Pinion Product Line

The Maval Remanufactured Rack and Pinion product line offers a cost-effective alternative to new steering assemblies by restoring original components to meet strict quality standards. This remanufactured assembly maintains the integrity of the original design, including the aluminum casting and precise thread specifications, ensuring compatibility and performance for Chevrolet Sierra and Silverado 1500 series trucks.

Technical Specifications and Features

This rack and pinion assembly features an aluminum casting material that provides strength while reducing weight. The assembly includes two mounting holes spaced 14.93 mm apart, ensuring a secure fit. The input shaft measures 16.8 mm in diameter and 43 mm in length, designed to match factory specifications. The hose ports utilize O-ring connections for reliable sealing, with pressure and return port thread sizes of M18 x 1.5 and M16 x 1.5 respectively. The rack length is 50.55 inches (1284 mm), and the total turns lock to lock is 3.3, offering precise steering response. Tie rod ends are included for a complete replacement solution.

Common Applications and Problem Resolution

• Restores steering control in Chevrolet Sierra 1500 and Silverado 1500 trucks
• Replaces worn or leaking rack and pinion assemblies
• Addresses excessive play or steering wheel vibration
• Fixes fluid leaks from pressure or return ports
• Improves steering response and handling stability

Installation Notes and Tips

Installation of the Maval 95485M rack and pinion assembly requires proper alignment and torque specifications to ensure optimal performance. Verify the mounting hole spacing and input shaft dimensions match your vehicle’s requirements. Use compatible O-ring seals on hose ports to prevent leaks. It is recommended to have a professional perform wheel alignment after installation to maintain steering accuracy and tire wear.

Quality Assurance and Warranty Information

This remanufactured rack and pinion assembly undergoes rigorous testing to meet OEM standards for fit, form, and function. The aluminum casting and thread specifications are restored to original factory tolerances. While specific warranty details are not provided, remanufactured parts typically come with limited warranties covering defects in workmanship and materials. Consult the product documentation or supplier for exact warranty terms.
