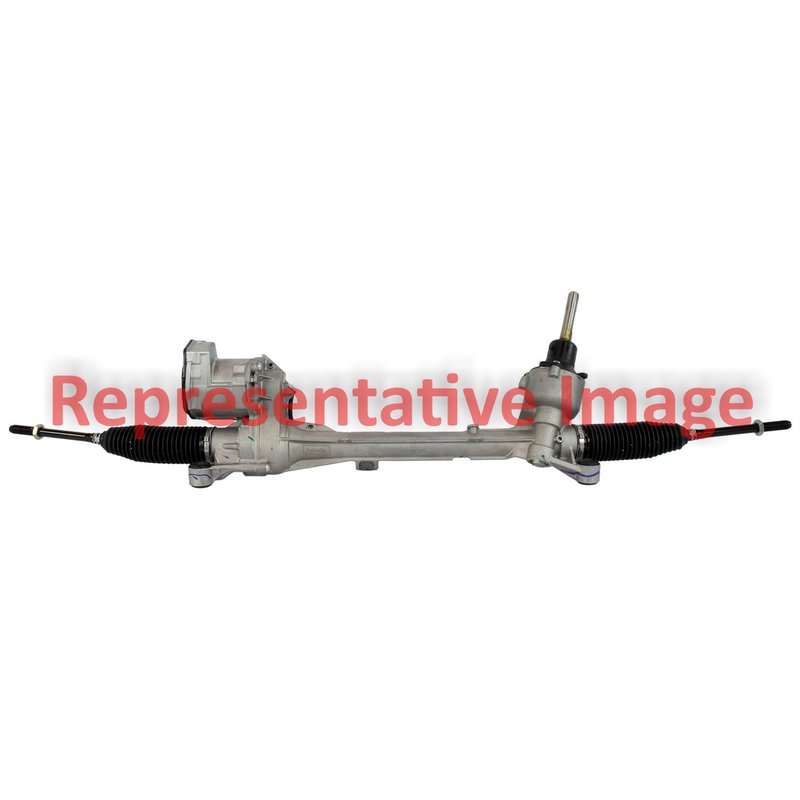

Maval 95489M Rack and Pinion Assembly

Remanufactured Steering Rack for Saturn Vue

This Maval remanufactured rack and pinion assembly is built for 2008-2009 Saturn Vue models without Steering Gear Control (opt D9P). Part number 95489M is a direct-fit steering gear replacement for restoring steering response and rack operation in the Saturn Vue platform.

Maval’s Remanufactured Rack and Pinion line focuses on steering gear assemblies rebuilt to match the original application requirements. For buyers searching for a remanufactured rack and pinion for 2008-2009 Saturn Vue, 95489M provides the key OE-style dimensions and port specifications needed for a proper replacement.

• Brand: Maval
• Part number: 95489M
• Remanufactured rack and pinion assembly
• Fits 2008-2009 Saturn Vue, N/A, without Steering Gear Control (opt D9P)
• 2 mounting holes
• 2.75 total turns lock to lock
• Steel and aluminum casting material
• Rack length: 48.38 in. (1228.73 mm)
• Input shaft diameter: 0.65 in. (16.59 mm)
• Input shaft length: 1.5 in. (38.1 mm)
• Pressure port thread size: M18 x 1.5
• Return port thread size: M16 x 1.5
• O-ring hose port type
• Tie rod ends included: Yes

This part cross-references Cardone Reman 22-1050 for the same application. It is also associated with OE reference 25832593 for the Saturn Vue steering rack and pinion application.

Detailed Application and Function

Use this rack and pinion assembly to replace a worn or leaking steering gear in a 2008-2009 Saturn Vue without Steering Gear Control (opt D9P). The 48.38-inch rack length, 2 mounting holes, and O-ring hose ports help match the original steering system layout, while the M18 x 1.5 pressure port and M16 x 1.5 return port support correct hydraulic connection points. If you are searching for a remanufactured steering rack for Saturn Vue 2008-2009, 95489M is the application-specific part to compare against your original unit.

Common Issues This Part Addresses

• Steering play or looseness at the wheel
• Fluid leakage from the rack and pinion assembly
• Rough, inconsistent, or delayed steering response
• Internal wear in the steering gear housing or seals
• Noise or binding from a failing steering rack

Installation Notes and Tips

Verify the vehicle is a 2008-2009 Saturn Vue without Steering Gear Control (opt D9P) before ordering. Compare the original rack length, input shaft dimensions, port thread sizes, and mounting-hole spacing to confirm match-up with 95489M. After installation, the steering system should be inspected, bled, and aligned according to service procedures.

Quality Assurance

This Maval remanufactured rack and pinion is rebuilt for the specified Saturn Vue application and uses steel and aluminum construction with application-matched steering connections. Confirm all fitment details against the original steering gear before installation.
