Home› Steering > Steering, Gear and Related Components› Maval 95494M Rack and Pinion Assembly
Maval 95494M Rack and Pinion AssemblyOE Quality 60-Day Returns
Part #: 95494M

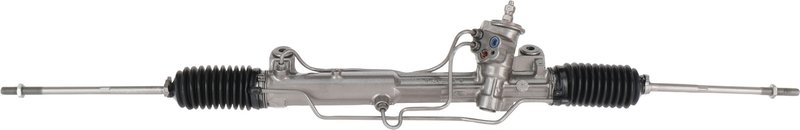

Maval 95494M Rack and Pinion Assembly

Reman Rack and Pinion Assembly
24 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$541.33Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Reman Rack and Pinion Assembly
Fitment: Ford, Focus
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Rack and Pinion Assembly options

Maval Remanufactured Rack and Pinion for Ford Focus

The Maval 95494M is a remanufactured rack and pinion assembly for select Ford Focus models with the correct steering and tie rod thread configuration. Built with an aluminum casting and supplied with tie rod ends included, it is a direct-fit steering gear replacement for 2006-2011 Ford Focus applications listed below.

Key Features

  • Remanufactured rack and pinion assembly from Maval
  • Fits select 2006-2011 Ford Focus models with application-specific notes
  • Aluminum casting material for the steering gear housing
  • O-ring hose port type
  • 2.88 total turns lock to lock
  • Input shaft diameter: 0.73 in. / 18.42 mm
  • Input shaft length: 1.19 in. / 30.15 mm
  • Rack length: 50.88 in. / 1292.23 mm
  • Distance between mounting holes: 15.63 in. / 396.88 mm
  • Tie rod ends included

Product Details

Maval Remanufactured Rack and Pinion 95494M is built for steering service on the Ford Focus platform where the original rack has wear, internal leakage, or steering play. This rack and pinion assembly uses an aluminum housing, O-ring hose ports, and the specified input shaft and mounting dimensions to match the listed vehicle applications. It cross-references Cardone Reman 22-2004 for the same application.

Compatible With 2006 Ford Focus, N/A, from 12/06/2005 with M14x1.5 tie rod thread. Compatible With 2007-2008 Ford Focus, N/A, all models from 12/6/05 with M14 x 1.5 tie rod threads. Compatible With 2009-2011 Ford Focus, N/A, from 12/05/2005. The Maval 95494M part number is also referenced by OE number 8S4Z 3504ARM.

Common Steering Issues This Part Can Address

  • Excessive steering wheel play or looseness
  • Fluid leakage from the steering rack assembly
  • Rough, inconsistent, or noisy steering operation
  • Worn internal rack components affecting steering response
  • Damage to the original rack housing or ports

Installation Notes and Tips

Verify the vehicle build date and tie rod thread specification before ordering, since the listed Ford Focus applications depend on production date and M14 x 1.5 tie rod threads on certain models. Confirm hose port style, mounting hole spacing, and input shaft dimensions against the original unit before installation. After replacement, perform a professional alignment and inspect the steering system for leaks and proper centering.

Quality Assurance

This Maval remanufactured steering rack is built as a replacement assembly for the listed Ford Focus applications and is identified by part number 95494M. Use the fitment notes and interchange references to confirm the correct application before installation.

BrandMaval
Part Number95494M
PositionReman Rack and Pinion Assembly
Mounting Hole Quantity2
Total Turns Lock To Lock2.88
Casting MaterialAluminum
Distance Between Mounting Holes15.63
Distance Between Mounting Holes396.88
Hose Port TypeO-ring
Input Shaft Diameter0.73
Input Shaft Diameter18.42
Input Shaft Length1.19
Input Shaft Length30.15
Rack Length1292.23
Rack Length50.88
Return Port ID Size0.386
Thread Length2.75
Thread Length69.85
Tie Rod Ends IncludedYes

This part fits 24 vehicles. Search below:

YearMakeModelSubmodelPositionNotes
2011FordFocusN/AFrom 12/05/2005; Reman Rack and Pinion Assembly
2010FordFocusN/AFrom 12/05/2005; Reman Rack and Pinion Assembly
2009FordFocusN/AFrom 12/05/2005; Reman Rack and Pinion Assembly
2008FordFocusSEN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2008FordFocusSESN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2008FordFocusSportN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2008FordFocusAmbienteN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2008FordFocusSTN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2008FordFocusSN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusAmbienteN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSTN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusLX AusteroN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSEN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSE TipicoN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSESN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2007FordFocusSportN/A(All Models); Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusLX AusteroN/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusSE TipicoN/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusZX4 STN/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusZXWN/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusZX5N/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusZX3N/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion
2006FordFocusZX4N/Afrom 12/06/2005; w/M14x1.5 Tie Rod Thread; Models from 12/6/05 with M14 x 1.5 tie rod threads.; Remanufactured Rack and Pinion

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

22-20048S4Z 3504ARM

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
