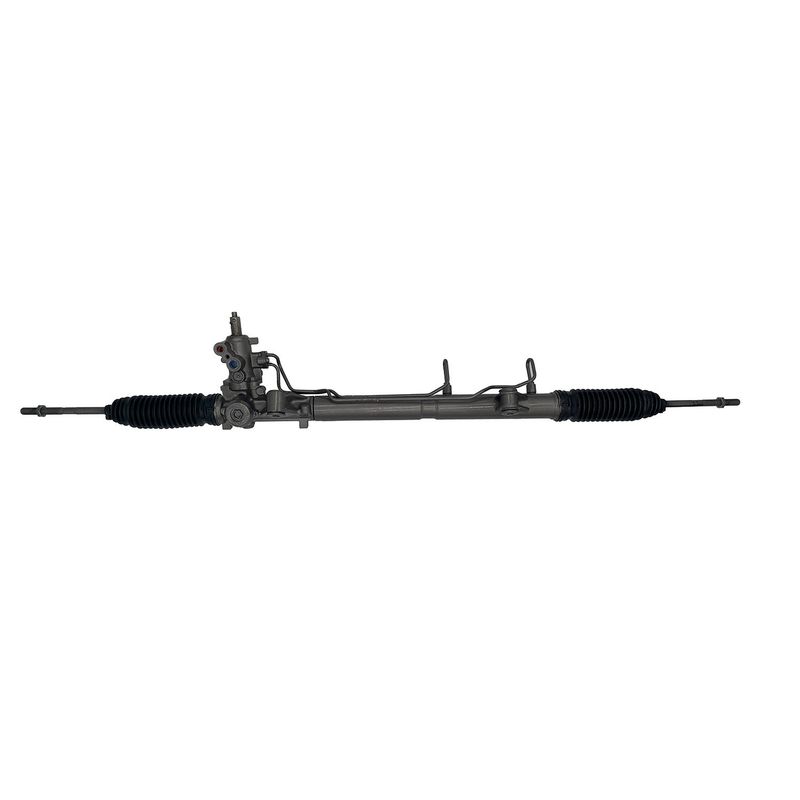

Maval 95509M Rack and Pinion Assembly

Remanufactured Rack and Pinion for Lincoln MKS

This Maval remanufactured rack and pinion assembly is built for steering service on the 2009 Lincoln MKS. Part number 95509M is a direct-fit steering gear assembly with tie rod ends included and O-ring hose ports for a clean replacement on the original hydraulic steering setup.

Key Features

• Remanufactured rack and pinion assembly from Maval
• Fits 2009 Lincoln MKS, N/A
• Part number 95509M
• Steel and aluminum casting materials
• 2 mounting holes with 17 in. / 431.8 mm spacing
• 3 turns lock to lock for steering response matching the original design
• Input shaft diameter: 0.73 in. / 18.42 mm
• Input shaft length: 1.38 in. / 34.93 mm
• Rack length: 54.25 in. / 1377.95 mm
• O-ring hose port type with 0.436 return port ID
• Tie rod ends included

Product Details

The Maval 95509M remanufactured rack and pinion is engineered for the 2009 Lincoln MKS steering system and follows the original mounting and connection layout. With a 54.25-inch rack length, 2 mounting holes, and O-ring hose ports, this assembly is specified for accurate replacement of the steering gear in Lincoln MKS applications. The Maval remanufactured rack and pinion product line focuses on steering gear replacement units built to match OE-style dimensions and connection points for service work on hydraulic steering systems.

This part cross-references Cardone Reman 22-2003 for the same application.

What This Part Helps Address

• Excessive steering play or looseness in the steering wheel
• Fluid leakage at the rack and pinion housing or hose ports
• Uneven or inconsistent steering response
• Noise or binding from a worn steering gear assembly
• Restoring steering control on a 2009 Lincoln MKS

Installation Notes and Tips

Verify the input shaft diameter, mounting hole spacing, hose port type, and rack length against the original unit before installation. Because this assembly uses O-ring hose ports and includes tie rod ends, confirm the vehicle’s steering lines and front-end geometry are inspected during replacement. Professional alignment is recommended after installation on the Lincoln MKS.

Quality Assurance

Maval remanufactured steering components are rebuilt to support replacement of worn rack and pinion assemblies with attention to fitment-critical dimensions and connection points. Part number 95509M is listed for the 2009 Lincoln MKS and is intended to match the original steering configuration for that application.
