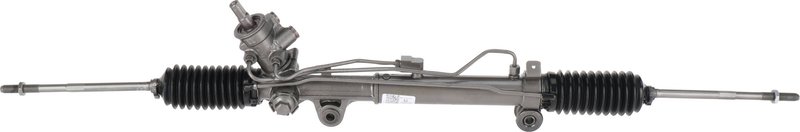

Maval 95527M Rack and Pinion Assembly
Maval Remanufactured Rack and Pinion for Impala
The Maval 95527M remanufactured rack and pinion is a direct-fit steering gear assembly for select Chevrolet Impala applications. It is built for 2012-2013 Chevrolet Impala and 2014-2016 Chevrolet Impala Limited models with the specified suspension packages and the same-size pressure and return ports.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Fits 2012-2013 Chevrolet Impala, N/A
- Fits 2014-2016 Chevrolet Impala Limited, N/A
- 2.68 pinion turns lock to lock
- Pressure and return ports are the same size; pressure line installs in the bottom port
- Cross-reference: Cardone Reman 22-1143
- Part number: 95527M
Detailed Description
This Maval remanufactured rack and pinion assembly is engineered for Chevrolet Impala and Chevrolet Impala Limited steering systems that use soft ride suspension FE1, ride and handling suspension FE2, or special handling suspension 7B3. The 95527M is a fitment-specific steering gear replacement for vehicles that require the same-size port configuration and the listed pinion travel specification. This part number, 95527M, is a practical replacement choice when servicing steering response, fluid sealing, or internal rack wear on these applications.
Compatible With 2012-2013 Chevrolet Impala and 2014-2016 Chevrolet Impala Limited, this rack and pinion assembly should be matched carefully to the vehicle’s suspension and hydraulic line routing. The Maval 95527M is intended for direct replacement use in the confirmed applications listed above.
What It Is Used For
- Steering play or looseness in the rack and pinion assembly
- Hydraulic fluid leakage from worn internal seals
- Heavy, inconsistent, or noisy steering operation
- Loss of steering precision on Impala and Impala Limited models
- Replacement of a worn steering gear on the confirmed applications
Installation Notes and Tips
Install the pressure line in the bottom port. The pressure and return ports are the same size, so crossed lines can damage the upper pinion seal due to high system pressure. Refer to warning label 640620 during installation. Verify suspension code and line routing before installation on any Chevrolet Impala or Chevrolet Impala Limited application. Part number 95527M should be matched to the exact vehicle configuration listed in the fitment data.
Quality Assurance
Maval remanufactured steering components are rebuilt for service replacement use and application-specific fitment. This part cross-references Cardone Reman 22-1143 for the same application.
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Chevrolet | Impala Limited | N/A | (w/soft ride suspension FE1); (w/Ride and handling Suspension FE2); (w/special handling Suspension 7B3); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620. 2.68 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2015 | Chevrolet | Impala Limited | N/A | (w/soft ride suspension FE1); (w/Ride and handling Suspension FE2); (w/special handling Suspension 7B3); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620. 2.68 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2014 | Chevrolet | Impala Limited | N/A | (w/soft ride suspension FE1); (w/Ride and handling Suspension FE2); (w/special handling Suspension 7B3); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620. 2.68 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2013 | Chevrolet | Impala | N/A | (w/soft ride suspension FE1); (w/Ride and handling Suspension FE2); (w/special handling Suspension 7B3); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620. 2.68 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
| 2012 | Chevrolet | Impala | N/A | (w/soft ride suspension FE1); (w/Ride and handling Suspension FE2); (w/special handling Suspension 7B3); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in bottom port. Refer to warning label 640620. 2.68 Pinion turns lock to lock.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
