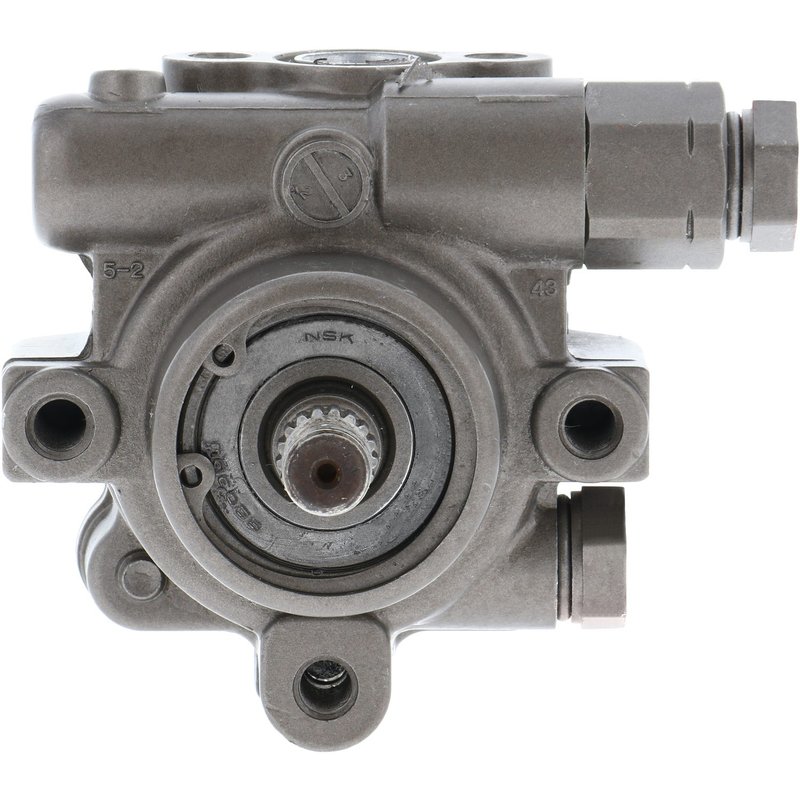

Maval 96169M Power Steering Pump

Maval 96169M Remanufactured Power Steering Pump

The Maval 96169M is a remanufactured power steering pump built for Mazda steering systems that use a remote reservoir setup. It is a direct-fit replacement for select Mazda 626, Millenia, MX-6, and MX-3 applications, with construction and porting details matched to the original hydraulic layout.

Key Features

• Remanufactured power steering pump for hydraulic steering systems
• Remote reservoir design; reservoir is not included
• Aluminum housing for durable pump construction
• Threaded outlet with 14x1.5 outlet thread size
• O-ring hose port type with hose barb inlet attachment
• Outlet attachment uses a threaded connection; pulley is not included
• Pulley attachment type is bolt-on
• Compatible with Mazda 626, Mazda Millenia, Mazda MX-6, and Mazda MX-3 applications

Product Details

This Maval remanufactured power steering pump, part number 96169M, is built for vehicles that require a remote reservoir configuration and a single threaded outlet. The aluminum housing supports the pump assembly, while the O-ring hose port and hose barb inlet match the hydraulic connection style used in the listed Mazda applications. This part cross-references Cardone Reman 21-5862 for the same application.

Compatible With 1996-2002 Mazda 626, without reservoir; reman power steering pump. Compatible With 1995-2000 Mazda Millenia, remanufactured power steering pump. Compatible With 1996-1997 Mazda MX-6, without reservoir; reman power steering pump. Compatible With 1992-1995 Mazda MX-3, remanufactured power steering pump. The Maval 96169M is also referenced by part numbers 5196 and EA03-32-600D.

What This Pump Helps Address

• Loss of power assist at the steering wheel
• Whining or groaning from a worn hydraulic pump
• Fluid leakage from the pump body or outlet connection
• Low steering pressure caused by internal wear
• Steering effort that becomes heavy or inconsistent

Installation Notes and Tips

Verify that the vehicle uses a remote reservoir setup before ordering. This pump does not include a pulley, reservoir, reservoir cap, or mounting hardware. On 1995-2000 Mazda Millenia and 1992-1995 Mazda MX-3 applications, transfer the sensor and related components from the original pump to the replacement pump exactly as required by the vehicle; incorrect transfer can lead to shaft seal failure from excessive pressure. Confirm the outlet thread size, hose port type, and pulley attachment style against the original unit before installation.

Quality Assurance

Maval remanufactured power steering components are rebuilt to restore hydraulic steering function for the listed Mazda applications. Part number 96169M is intended as a service replacement for vehicles that match the original pump configuration and connection points.
