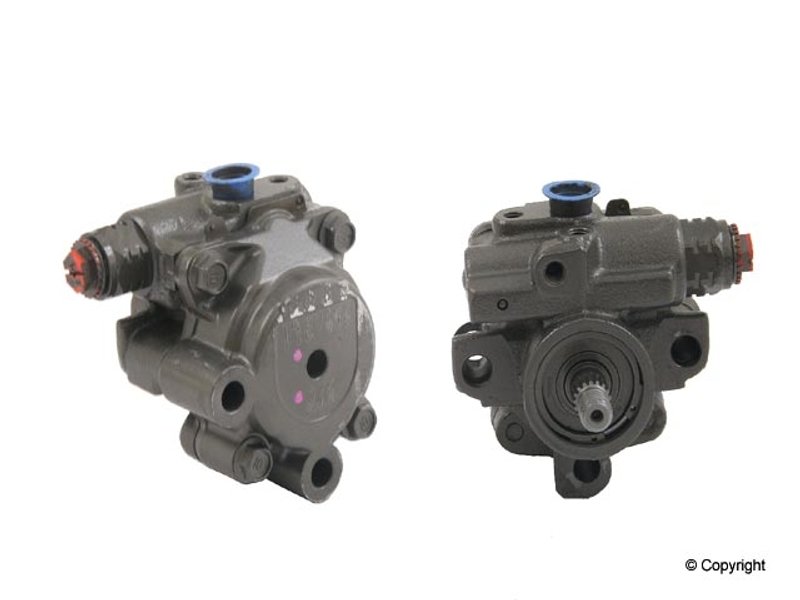

Maval 96216M Power Steering Pump
Remanufactured Power Steering Pump for Lexus
This Maval remanufactured power steering pump is built for select Lexus applications and is identified by part number 96216M. It is a direct-fit steering component for 1992-2000 Lexus SC300 and 1993-1997 Lexus GS300 applications, with OE-style connection points and a cast iron/aluminum housing.
The Maval Remanufactured Power Steering Pump line focuses on restoring core steering function with application-specific fitment and serviceable design details. For Lexus SC300 and Lexus GS300 owners, 96216M provides a remanufactured replacement that uses a threaded outlet, hose barb inlet, and bolt-on pulley attachment type.
Key Features
- Remanufactured power steering pump for Lexus steering systems
- Part number 96216M for accurate catalog matching
- Fits 1992-2000 Lexus SC300 and 1993-1997 Lexus GS300
- Outlet attachment type: threaded, with 16x1.5 outlet thread size
- Inlet attachment type: hose barb
- Housing material: cast iron/aluminum
- No pulley included
- No reservoir included
- No mounting hardware included
Detailed Description
Maval 96216M is a remanufactured power steering pump engineered for Lexus vehicles that use a threaded outlet and hose barb inlet configuration. It is listed for 1992-2000 Lexus SC300 and 1993-1997 Lexus GS300, making it a targeted replacement for drivers searching for a remanufactured power steering pump for Lexus SC300 or Lexus GS300 steering repair. The pump uses a seat-style hose port, a 16x1.5 outlet thread size, and a bolt-on pulley attachment type. Reservoir transfer is required, and the supplied new O-ring must be installed during service.
This part cross-references Cardone Reman 21-5235 for the same application.
What It Helps Address
- Low or inconsistent power steering assist
- Noise from a worn or contaminated pump assembly
- Fluid leakage at the pump or return fitting
- Steering effort that increases during turns or parking maneuvers
- Service replacement for a damaged original Lexus power steering pump
Installation Notes and Tips
- Transfer the reservoir correctly during installation.
- Use the new O-ring included in the box.
- Inspect and clean the reservoir before reuse.
- Replace the O-ring between the pump and return fitting to help prevent noise and leakage.
- Make sure the reservoir screen is free of contaminants before reassembly.
Quality Assurance
Maval remanufactured steering components are rebuilt for application-specific replacement use. Confirm fitment by year, make, and model before installation. Part number 96216M is listed for the Lexus SC300 and Lexus GS300 applications shown above.
This part fits 14 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1999 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1998 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1997 | Lexus | GS300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1997 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1996 | Lexus | GS300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1996 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1995 | Lexus | GS300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1995 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1994 | Lexus | GS300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1994 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1993 | Lexus | GS300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1993 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1992 | Lexus | SC300 | N/A | Reservoir needs to be transferred correctly. A new O-ring, included in the box, needs to be used. Reservoir needs to be inspected and cleaned.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
