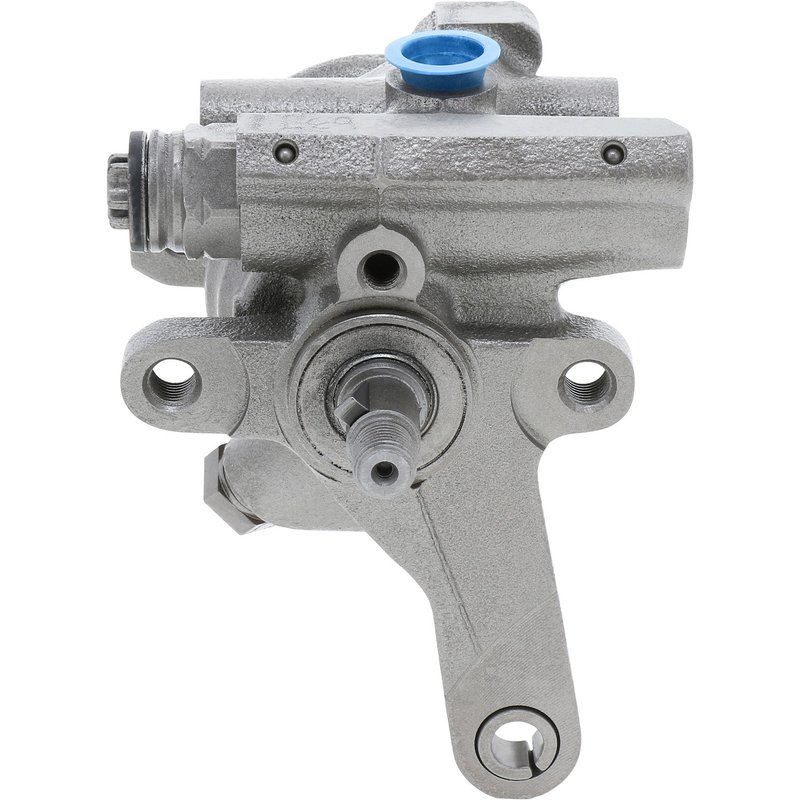

Maval 9625M Power Steering Pump - Front

Maval 9625M Remanufactured Power Steering Pump

The Maval 9625M remanufactured power steering pump is built for Toyota steering systems that require a threaded outlet, hose barb inlet, and cast iron housing. It is a direct replacement for select Toyota Celica and Corolla applications, including models that use a transfer sensor on the original pump.

Key Features

• Remanufactured power steering pump for select Toyota applications
• Cast iron housing for durable pump construction
• Threaded outlet with 16x1.5 outlet thread size
• Single outlet design with seat-style hose port type
• Hose barb inlet attachment type
• No pulley included; bolt-on pulley attachment type
• No reservoir, remote reservoir, or reservoir cap included

Product Details

This Maval remanufactured power steering pump is engineered for vehicles that need a replacement pump with the correct outlet and inlet configuration. The 9625M is listed for 1990-1993 Toyota Celica, 1994-1997 Toyota Celica, and 1988-1992 Toyota Corolla applications. This part cross-references Cardone Reman 21-5224 for the same application. The Maval 9625M is also associated with OE reference 44320-20240.

Maval’s Remanufactured Power Steering Pump line focuses on replacement units that match the original hydraulic connection style and mounting interface used in the vehicle’s steering system. For Toyota Celica and Toyota Corolla applications, that means attention to the threaded outlet, hose barb inlet, and pump housing format needed for proper steering assist operation.

What It Helps Address

• Hard steering effort from a worn or failing pump
• Noise caused by internal pump wear or pressure loss
• Fluid leakage from a damaged pump housing or shaft seal area
• Loss of hydraulic assist in Toyota Celica or Corolla steering systems
• Incorrect replacement fitment when the outlet and inlet styles do not match

Installation Notes

Fits 1990-1993 Toyota Celica, N/A; Fits 1994-1997 Toyota Celica, Front; Fits 1988-1992 Toyota Corolla, N/A. On listed Toyota Celica applications, the original pump sensor, spring, and plunger must be transferred to the replacement pump. If that sensor assembly is not transferred correctly, high pressure can damage the shaft seal. Verify pulley style, hose connections, and outlet thread size before installation.

Quality Assurance

This remanufactured pump is built as a service replacement for the original Toyota steering pump configuration and is intended to restore proper hydraulic steering function when installed on the listed applications.
