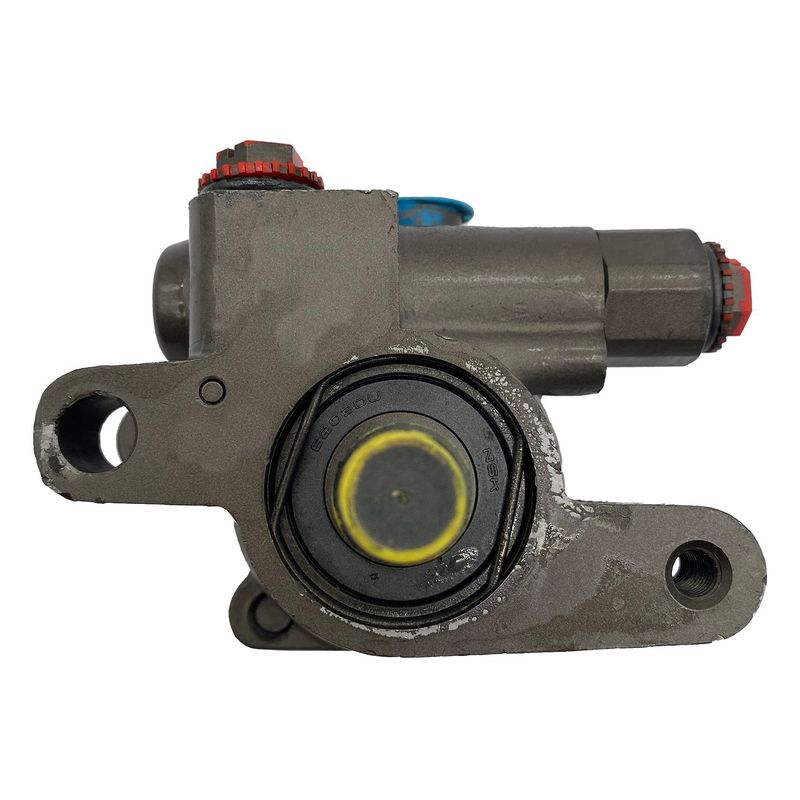

Maval 96330M Power Steering Pump

Remanufactured Power Steering Pump for Hyundai and Kia

The Maval 96330M remanufactured power steering pump is built for select Hyundai Sonata and Kia Magentis and Optima applications that use a remote reservoir setup. It is a direct replacement for vehicles that require a threaded outlet, O-ring hose port, and hose barb inlet connection.

Maval’s Remanufactured Power Steering Pump line focuses on OE-style replacement units for hydraulic steering systems, making this pump a practical choice when restoring steering assist on covered Hyundai and Kia models.

• Remanufactured power steering pump for hydraulic steering systems
• Remote reservoir design; reservoir not included
• Outlet attachment type: threaded with 16x1.5 outlet thread size
• Hose port type: O-ring
• Inlet attachment type: hose barb
• Housing material: cast iron/aluminum
• Pulley not included; bolt-on pulley attachment type
• Mounting hardware not included

Detailed Product Information

This Maval power steering pump, part number 96330M, is engineered for applications that use a remote reservoir and a single outlet connection. It is listed for 2001-2006 Kia Magentis, 2006 Kia Optima, 2001-2005 Hyundai Sonata, and 2001-2005 Kia Optima, with the 2000 Hyundai Sonata application noted from 4/2000. For the Hyundai Sonata and Kia Optima applications with a sensor-equipped original pump, the sensor must be transferred from the original unit to the replacement pump.

This part cross-references Cardone Reman 21-5257 for the same application. The 96330M is also referenced against OE-style numbers used in this vehicle group, including 57100-38100 and MAHLE 5727.

Common Steering Issues This Pump Can Address

• Loss of power steering assist
• Whining or groaning noise from the steering pump
• Fluid leakage at the pump outlet or hose connection
• Heavy or inconsistent steering effort
• Poor hydraulic pressure in the steering system

Installation Notes and Tips

Verify that the vehicle uses a remote reservoir configuration before ordering. Confirm the threaded outlet, O-ring hose port, and hose barb inlet match the original pump connections. Transfer the sensor from the original pump on listed Hyundai Sonata and Kia Optima applications where required, and reuse the original pulley if the vehicle setup calls for one because the pulley is not included.

Quality Assurance

This remanufactured pump is built as a replacement steering component for covered Hyundai and Kia applications. Its cast iron/aluminum housing and OE-style connection points support proper fitment when matched to the original system configuration.
