OE Quality
60-Day Returns

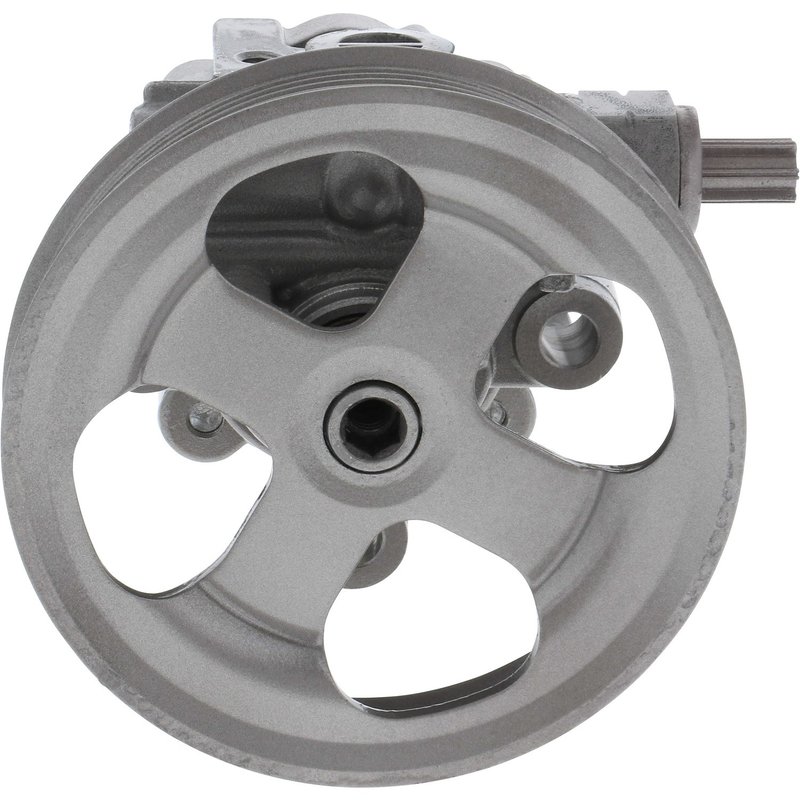

Maval 96348M Power Steering Pump
Overview of the Maval Remanufactured Power Steering Pump
The Maval Remanufactured Power Steering Pump 96348M is designed for reliable steering performance in Lexus and Toyota vehicles. Specifically compatible with Lexus Land Cruiser, LX470, and Toyota Tundra models, this pump ensures consistent hydraulic pressure for smooth steering control.
- Remanufactured power steering pump for Lexus and Toyota vehicles
- Aluminum housing for durability and heat dissipation
- Threaded outlet attachment with 16x1.5 thread size
- Single outlet with O-ring hose port type for secure connections
- Inlet attachment type is hose barb for easy hose fitting
- Press-on pulley attachment (pulley not included)
- No reservoir or remote reservoir included
Detailed Product Description
This Maval Remanufactured Power Steering Pump (part number 96348M) features a robust aluminum housing that provides strength while helping to dissipate heat generated during operation. The pump includes a single outlet with a threaded attachment type, sized at 16x1.5, ensuring a tight and leak-resistant connection. The hose port uses an O-ring type seal, which enhances the reliability of the hydraulic system. The inlet is designed with a hose barb attachment, simplifying installation with compatible power steering hoses. Note that the pulley is not included with this pump; it uses a press-on pulley attachment type, allowing for easy pulley installation or reuse of the existing pulley.
Compatible Vehicles and Applications
This power steering pump is compatible with select Lexus and Toyota models, including the Lexus Land Cruiser, Lexus LX470, and Toyota Tundra. It is ideal for replacing worn or failing power steering pumps in these vehicles to restore proper steering function and hydraulic pressure.
- Restores hydraulic pressure for smooth steering response
- Replaces noisy or leaking power steering pumps
- Addresses steering difficulty or stiffness issues
- Eliminates fluid leaks from damaged pump housings or seals
- Prevents power steering failure during vehicle operation
Installation Notes and Tips
When installing the Maval Remanufactured Power Steering Pump 96348M, ensure the pulley is properly aligned and pressed onto the pump shaft, as the pulley is not included. Verify that the hose connections match the hose barb inlet and threaded outlet specifications. Use appropriate O-ring seals to prevent leaks at the hose ports. Bleed the power steering system after installation to remove air and ensure optimal pump performance.
Quality Assurance and Warranty
The Maval Remanufactured Power Steering Pump is built to meet OEM standards for fit and function. The aluminum housing and precise attachment types contribute to long-term durability. While specific warranty details are not provided, remanufactured parts typically come with limited warranties covering defects in materials and workmanship. Confirm warranty terms with the supplier before installation.
This part fits 13 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Lexus | LX470 | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2007 | Toyota | Land Cruiser | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2006 | Lexus | LX470 | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2006 | Toyota | Land Cruiser | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2006 | Toyota | Tundra | Crew Cab Pickup | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 2005 | Lexus | LX470 | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2005 | Toyota | Land Cruiser | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2005 | Toyota | Tundra | Crew Cab Pickup | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 2004 | Lexus | LX470 | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2004 | Toyota | Land Cruiser | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2004 | Toyota | Tundra | Crew Cab Pickup | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 2003 | Lexus | LX470 | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |
| 2003 | Toyota | Land Cruiser | N/A | If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
