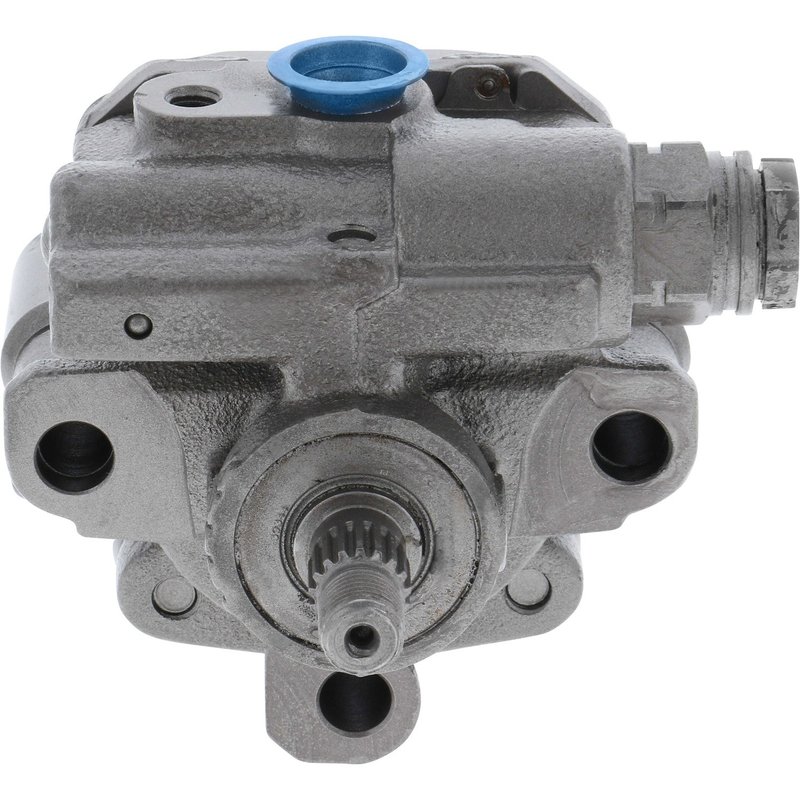

Maval 96353M Power Steering Pump
Overview of Maval Remanufactured Power Steering Pump 96353M
The Maval Remanufactured Power Steering Pump 96353M is designed specifically for Lexus and Toyota vehicles, including the 4Runner and GX470 models. This power steering pump offers a reliable solution for restoring steering performance without the need for a new unit.
- Remanufactured power steering pump for Lexus and Toyota 4Runner, GX470
- Cast iron and aluminum housing for durability
- Threaded outlet attachment with 16x1.5 thread size
- Remote reservoir compatible design
- Hose barb inlet attachment and seat-type hose port
- Single outlet with bolt-on pulley attachment (pulley not included)
Detailed Product Description
This Maval Remanufactured Power Steering Pump 96353M features a robust housing made from cast iron and aluminum, ensuring strength and resistance to wear. The pump includes a single outlet with a threaded attachment type sized at 16x1.5, designed for secure and leak-free connections. The inlet uses a hose barb attachment, and the hose port type is seat, which supports proper hose sealing and fitment. This pump is compatible with a remote reservoir setup, which is common in Lexus 4Runner and Toyota GX470 power steering systems. Note that the pulley is not included but attaches via a bolt-on method, allowing for easy installation of the existing pulley.
About the Remanufactured Power Steering Pump Line
The Maval Remanufactured Power Steering Pump line focuses on providing cost-effective, environmentally friendly alternatives to new power steering pumps. Each pump undergoes a thorough remanufacturing process to restore core functionality and reliability. The 96353M model maintains OEM specifications for fitment and performance, making it a practical replacement for Lexus and Toyota 4Runner and GX470 vehicles requiring power steering pump service.
Common Applications and Issues Addressed
- Restores steering assist in Lexus 4Runner and Toyota GX470 models
- Replaces failing or noisy power steering pumps
- Solves fluid leakage issues related to outlet or inlet connections
- Addresses loss of power steering pressure due to worn pump components
- Compatible with remote reservoir power steering systems
Installation Notes and Tips
When installing the Maval 96353M power steering pump, ensure the pulley is transferred from the original pump as it is not included. Verify that the outlet and inlet hose connections match the threaded and hose barb fittings respectively. Properly secure the pump using existing mounting points, as mounting hardware is not provided. Bleed the power steering system after installation to remove air and ensure optimal performance.
Quality Assurance and Warranty
This remanufactured power steering pump is built to meet or exceed OEM standards for fit and function. The cast iron and aluminum housing provides durability under normal operating conditions. While specific warranty details are not provided, remanufactured parts typically come with limited warranties covering defects in workmanship and materials. Confirm warranty terms with the supplier prior to purchase.
| Brand | Maval |
| Part Number | 96353M |
| Position | Remanufactured Power Steering Pump |
| Pulley Included | No |
| Outlet Attachment Type | Threaded |
| Mounting Hardware Included | No |
| Outlet Quantity | 1 |
| Reservoir Included | No |
| Remote Reservoir | Yes |
| Hose Port Type | Seat |
| Housing Material | Cast iron/aluminum |
| Inlet Attachment Type | Hose barb |
| Outlet Thread Size | 16x1.5 |
| Pulley Attachment Type | Bolt-on |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2009 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2008 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2008 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2007 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2007 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2006 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2006 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2005 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2005 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2004 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2004 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2003 | Lexus | GX470 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | ||
| 2003 | Toyota | 4Runner | 4.7L | V8 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
