OE Quality
60-Day Returns

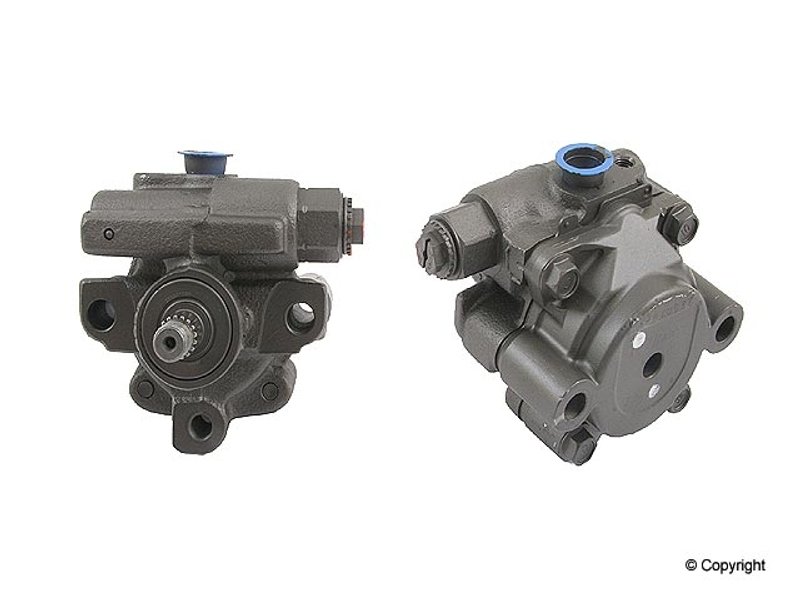

Maval 96380M Power Steering Pump
Overview of the Maval Remanufactured Power Steering Pump 96380M
The Maval Remanufactured Power Steering Pump 96380M is designed specifically for Lexus and Toyota vehicles, including the Highlander, RX300, and RX330 models. This power steering pump provides reliable hydraulic pressure to assist steering performance without the need for a pulley or reservoir included.
- Remanufactured power steering pump for Lexus and Toyota vehicles
- Compatible with Highlander, RX300, and RX330 models
- Threaded outlet attachment with a 16x1.5 thread size
- Remote reservoir design with no reservoir or reservoir cap included
- Housing made from durable cast iron and aluminum materials
- Inlet attachment type is hose barb; outlet uses seat hose port
- Single outlet quantity with bolt-on pulley attachment type
- Mounting hardware and pulley not included
Detailed Product Description
This Maval Remanufactured Power Steering Pump 96380M is engineered to meet the hydraulic steering needs of select Lexus and Toyota vehicles. The pump features a cast iron and aluminum housing that balances strength and weight. It includes a single outlet with a threaded attachment type sized at 16x1.5, ensuring secure hose connections. The inlet uses a hose barb fitting, and the outlet hose port type is seat style, designed for compatibility with factory steering systems. The pump is designed for use with a remote reservoir, which is not included, and does not come with a pulley or mounting hardware, allowing for flexible installation options depending on the vehicle’s existing components.
About the Remanufactured Power Steering Pump Line
The Maval Remanufactured Power Steering Pump line focuses on restoring original equipment performance through careful remanufacturing processes. This product line offers a cost-effective alternative to new pumps while maintaining functional integrity and fitment accuracy. The 96380M model is part of this line, providing a reliable replacement option for power steering systems in Lexus Highlander, RX300, and RX330 vehicles.
Common Applications and Issues Addressed
- Restores hydraulic pressure for smooth steering response
- Replaces failing or noisy power steering pumps
- Eliminates steering fluid leaks from worn pump seals
- Resolves reduced steering assist or heavy steering effort
- Addresses pump failure due to worn internal components
Installation Notes and Tips
- Verify compatibility with Lexus Highlander, RX300, or RX330 before installation
- Ensure the remote reservoir is properly connected as it is not included
- Use existing pulley and mounting hardware or source separately as needed
- Check all hose connections for secure fitment with hose barb inlet and threaded outlet
- Bleed the power steering system after installation to remove air
Quality Assurance and Warranty
The Maval Remanufactured Power Steering Pump 96380M undergoes thorough testing to meet performance standards consistent with OEM specifications. While specific warranty details are not provided here, remanufactured pumps typically include limited warranties covering defects in materials and workmanship. It is recommended to confirm warranty terms at the point of purchase.
This part fits 13 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Toyota | Highlander | 3.3L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2005 | Lexus | RX330 | N/A | (Nut Retained Pulley); If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 2005 | Toyota | Highlander | 3.3L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2004 | Lexus | RX330 | N/A | (Nut Retained Pulley); If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; If O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 2004 | Toyota | Highlander | 3.3L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2003 | Lexus | RX300 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 2003 | Toyota | Highlander | 3.0L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2002 | Lexus | RX300 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 2002 | Toyota | Highlander | 3.0L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2001 | Lexus | RX300 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 2001 | Toyota | Highlander | 3.0L | V6 | GAS | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
| 2000 | Lexus | RX300 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump | |||
| 1999 | Lexus | RX300 | N/A | If O-ring between pump and return fitting is not replaced, noise and leakage will occur, reservoir screen must be free of all contaminants.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
