OE Quality
60-Day Returns

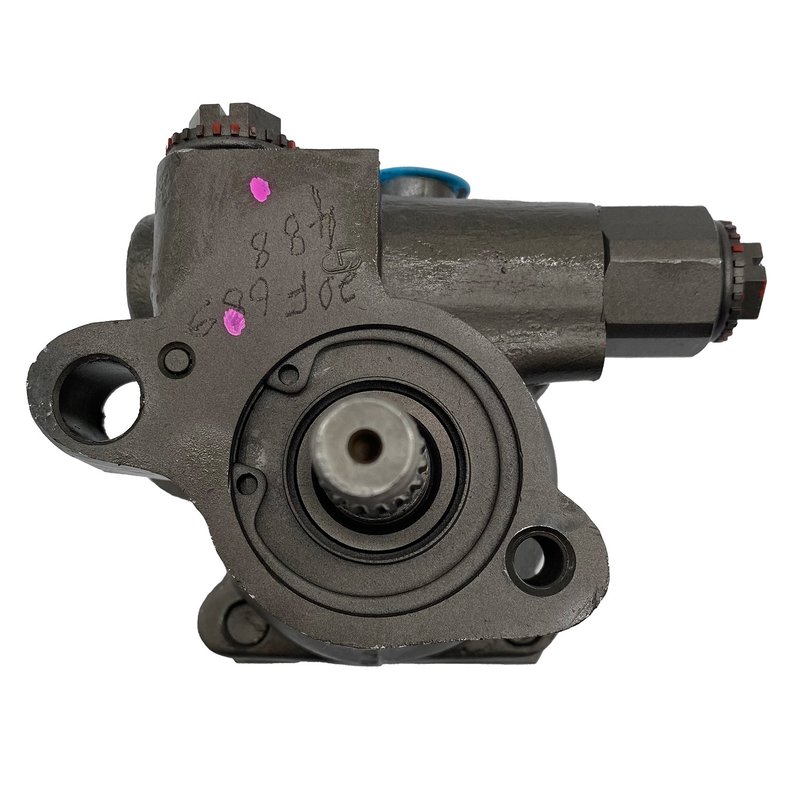

Maval 96488M Power Steering Pump
Remanufactured Power Steering Pump for Hyundai Sonata
This Maval remanufactured power steering pump is built for 1996-1998 Hyundai Sonata applications with a spline type shaft. It is a remote reservoir design with a threaded outlet and hose barb inlet, making it a direct-match replacement for the specified steering system layout.
Part number 96488M is a practical OE-style replacement for Hyundai Sonata power steering service, with the key connection points and housing materials matched to the application. The pump is also cross-referenced to Monroe Shocks & Struts 21-5110 for the same application.
Key Features
- Brand: Maval remanufactured power steering pump
- Part number: 96488M
- Fits 1996-1998 Hyundai Sonata, N/A
- Remote reservoir configuration
- Outlet attachment type: threaded
- Outlet thread size: 16x1.5
- Hose port type: O-ring
- Inlet attachment type: hose barb
- Housing material: cast iron/aluminum
- Pulley included: no
- Mounting hardware included: no
- Pulley attachment type: bolt-on
Product Details
The Maval 96488M remanufactured power steering pump is specified for 1996, 1997, and 1998 Hyundai Sonata models with a spline type shaft. Its remote reservoir layout and single threaded outlet support the original steering system configuration, while the cast iron/aluminum housing provides the structural format used in this application. Part number 96488M is a focused replacement choice when servicing a Hyundai Sonata power steering pump with the correct port style and outlet thread size.
Common Steering Problems This Pump Can Address
- Loss of power steering assist
- Whining or groaning noise from the pump
- Fluid leakage at the pump connections or housing
- Rough or inconsistent steering effort
- Pressure loss in the hydraulic steering circuit
Installation Notes and Tips
Transfer the sensor from the original pump to the replacement pump exactly as required for this Hyundai Sonata application. If the sensor and related components are not moved correctly, the shaft seal can fail from excessive pressure. Verify the spline type shaft, threaded outlet connection, O-ring hose port, and 16x1.5 outlet thread size before installation.
Quality Assurance
This Maval remanufactured power steering pump is built as a replacement component for the listed Hyundai Sonata applications and is identified by part number 96488M. Confirm all steering connections and transferred sensor components during installation to maintain proper system operation.
| Brand | Maval |
|---|---|
| Part Number | 96488M |
| Position | Remanufactured Power Steering Pump |
| Pulley Included | No |
| Outlet Attachment Type | Threaded |
| Mounting Hardware Included | No |
| Outlet Quantity | 1 |
| Reservoir Included | No |
| Remote Reservoir | Yes |
| Reservoir Cap Included | No |
| Hose Port Type | O-ring |
| Housing Material | Cast iron/aluminum |
| Inlet Attachment Type | Hose barb |
| Outlet Thread Size | 16x1.5 |
| Pulley Attachment Type | Bolt-on |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1998 | Hyundai | Sonata | 3.0L | V6 | N/A | (w/Spline Type Shaft); Pump is equipped with a sensor that needs to be transferred from the original pump to the replacement pump. If this sensor and components are not transferred correctly, the shaft seal my fail as a result of high pressure.; Remanufactured Power Steering Pump |
| 1997 | Hyundai | Sonata | 3.0L | V6 | N/A | (w/Spline Type Shaft); Pump is equipped with a sensor that needs to be transferred from the original pump to the replacement pump. If this sensor and components are not transferred correctly, the shaft seal my fail as a result of high pressure.; Remanufactured Power Steering Pump |
| 1996 | Hyundai | Sonata | 3.0L | V6 | N/A | (w/Spline Type Shaft); Pump is equipped with a sensor that needs to be transferred from the original pump to the replacement pump. If this sensor and components are not transferred correctly, the shaft seal my fail as a result of high pressure.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
