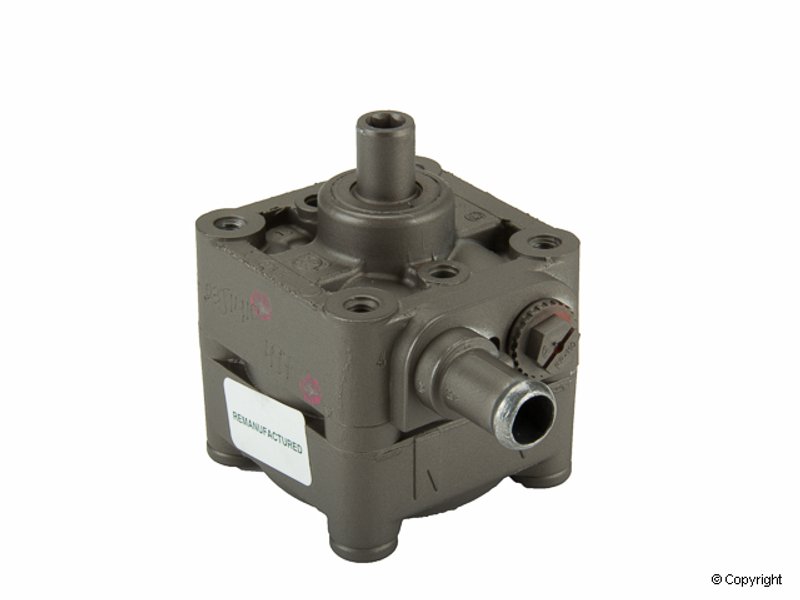

Maval 96497M Power Steering Pump

Overview of the Maval Remanufactured Power Steering Pump

The Maval Remanufactured Power Steering Pump 96497M is designed specifically for Volvo S80 and XC90 models. This pump provides reliable steering assistance by maintaining hydraulic pressure, ensuring smooth and responsive steering performance.

• Compatible with Volvo S80 and XC90 models
• Aluminum housing for durability and heat dissipation
• Threaded outlet attachment with 16x1.5 thread size
• Remote reservoir design with O-ring hose port type
• Inlet attachment type: hose barb
• Press-on pulley attachment (pulley not included)
• Mounting hardware and reservoir cap not included

Details on the Remanufactured Power Steering Pump Line

The Remanufactured Power Steering Pump line by Maval offers a cost-effective alternative to new pumps by restoring core components to meet original equipment specifications. This ensures that the 96497M pump maintains performance and reliability standards suitable for Volvo vehicles, focusing on essential features like aluminum housing and precise attachment types for seamless integration.

Technical Description and Features

This power steering pump features an aluminum housing that provides strength and efficient heat dissipation, critical for maintaining hydraulic fluid integrity. The pump includes a single outlet with a threaded attachment type sized at 16x1.5, designed for secure connection to the steering system. The inlet uses a hose barb fitting, and the hose port employs an O-ring type seal to prevent leaks. The pulley attachment is press-on style, but note that the pulley itself is not included. Additionally, this pump is designed with a remote reservoir system, although the reservoir and its cap are not part of the package. Mounting hardware is also not included, so ensure compatibility with existing components during installation.

Common Applications and Problem Resolution

• Restores hydraulic pressure for smooth steering response in Volvo S80 and XC90
• Replaces worn or leaking power steering pumps causing steering noise or difficulty
• Addresses fluid leaks due to damaged outlet or inlet fittings
• Eliminates steering wheel vibration caused by pump failure
• Improves steering system reliability without replacing the entire assembly

Installation Notes and Tips

When installing the Maval 96497M power steering pump, verify that the existing pulley is compatible with the press-on attachment type, as the pulley is not included. Ensure all hose connections use the correct O-ring seals and hose barb fittings to prevent leaks. Since mounting hardware and reservoir components are not included, retain original parts or source replacements as needed. Properly bleed the power steering system after installation to remove air and ensure optimal performance.

Quality Assurance and Warranty

The Maval Remanufactured Power Steering Pump 96497M undergoes thorough remanufacturing processes to meet OEM standards for fit and function. The aluminum housing and precise attachment specifications contribute to long-term durability. Warranty details should be confirmed with the distributor or installer, as coverage may vary based on remanufacturing policies.
