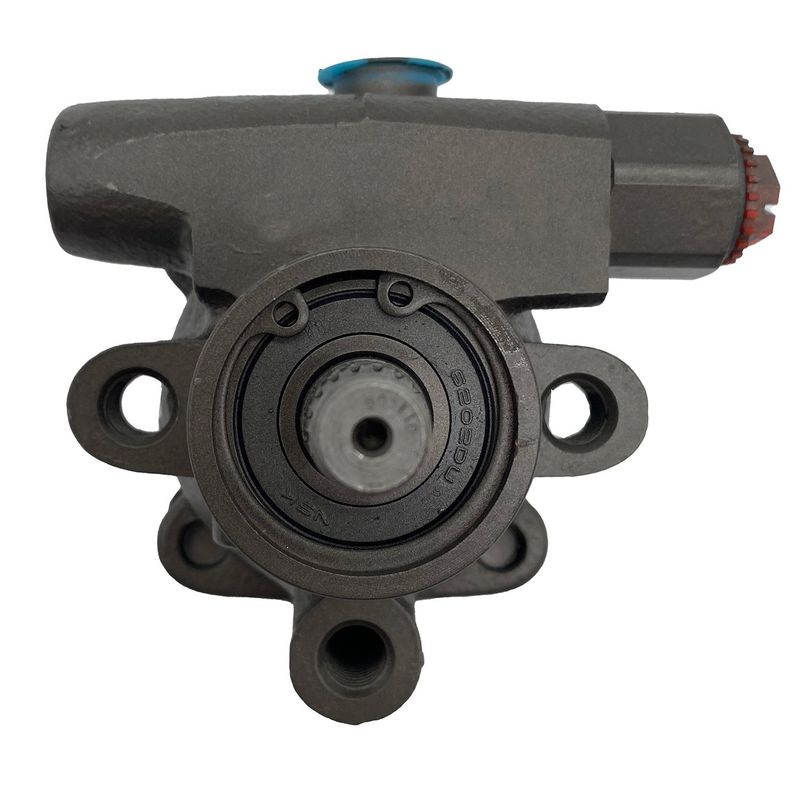

Maval 9671M Power Steering Pump
Maval 9671M Remanufactured Power Steering Pump
The Maval 9671M remanufactured power steering pump is built for select Nissan 240SX applications with remote reservoir steering systems. It is a direct-fit replacement for 1989 and 1990 Nissan 240SX models, including 1990 vehicles built to 7/90, and is specified with a threaded outlet, O-ring hose port, and hose barb inlet.
Key Features
- Remanufactured power steering pump for select Nissan 240SX applications
- Remote reservoir design
- Cast iron housing for durable pump construction
- Threaded outlet with 16x1.5 outlet thread size
- O-ring hose port type for the outlet connection
- Hose barb inlet attachment type
- Bolt-on pulley attachment type
- No pulley included
- No reservoir included
Product Details
Maval 9671M is a remanufactured power steering pump for Nissan 240SX models that use a remote reservoir setup. The pump features a cast iron housing, one outlet, and a threaded outlet connection sized 16x1.5. This part cross-references Cardone Reman 21-5728 for the same application. Maval 9671M is also listed with interchange references 5161 and 49110-40F00.
Compatible With 1989 Nissan 240SX and 1990 Nissan 240SX, to 7/90. Use this part number when replacing a worn or leaking pump on a Nissan 240SX with the matching remote reservoir steering configuration.
Common Issues This Part May Address
- Power steering fluid leaks from the pump body or outlet connection
- Hard steering effort caused by a failing pump
- Whining or groaning noise from the power steering system
- Loss of hydraulic pressure in the steering circuit
- Steering assist that becomes inconsistent during operation
Installation Notes
Verify the vehicle uses a remote reservoir power steering setup before installation. Confirm the outlet thread size, hose port type, and inlet attachment style match the original pump. Because no pulley is included, reuse or source the correct pulley for the application, and confirm pulley attachment type is bolt-on. Mounting hardware is not included.
Quality Assurance
This Maval remanufactured power steering pump is built as a replacement component for the specified Nissan 240SX fitment. Confirm all connection points and system layout against the original unit before installation to ensure proper fit and function.
| Brand | Maval |
|---|---|
| Part Number | 9671M |
| Position | Remanufactured Power Steering Pump |
| Pulley Included | No |
| Outlet Attachment Type | Threaded |
| Mounting Hardware Included | No |
| Housing Material | Cast iron |
| Outlet Quantity | 1 |
| Reservoir Included | No |
| Remote Reservoir | Yes |
| Hose Port Type | O-ring |
| Inlet Attachment Type | Hose barb |
| Outlet Thread Size | 16x1.5 |
| Pulley Attachment Type | Bolt-on |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1990 | Nissan | 240SX | N/A | to 7/90; Remanufactured Power Steering Pump |
| 1989 | Nissan | 240SX | N/A | Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
