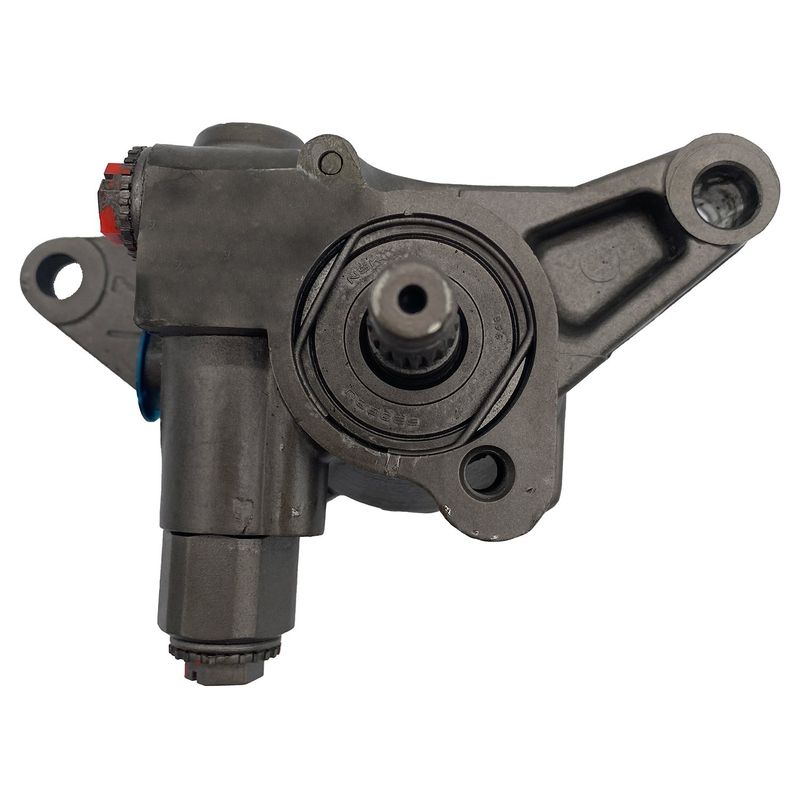

Maval 96744M Power Steering Pump

Remanufactured Power Steering Pump for Hyundai and Kia

The Maval 96744M remanufactured power steering pump is built for select Hyundai Santa Fe and Kia Sedona applications that use a remote reservoir setup. It features a cast iron and aluminum housing, a threaded outlet, and a hose barb inlet for the specified steering system configuration.

As part of Maval’s Remanufactured Power Steering Pump line, this unit is rebuilt for direct replacement use in vehicles that require the original pump style and sensor transfer procedure noted in the fitment data. The Maval 96744M is a practical choice when replacing a worn pump on a Hyundai Santa Fe or Kia Sedona with the correct OE-style connections.

Key Features

• Remanufactured power steering pump
• Remote reservoir design
• Cast iron and aluminum housing
• Threaded outlet with 16x1.5 outlet thread size
• O-ring hose port type
• Hose barb inlet attachment type
• Bolt-on pulley attachment type
• Pulley not included
• Reservoir not included
• Mounting hardware not included

Detailed Description

The Maval 96744M power steering pump is engineered for vehicles that use a remote reservoir and a single outlet connection. It is listed for 2003-2004 Hyundai Santa Fe, 2005 Hyundai Santa Fe without reservoir, 2006 Hyundai Santa Fe with sensor transfer required, and 2002-2005 Kia Sedona without reservoir. This part number, 96744M, is also a useful reference when searching for a remanufactured steering pump for these specific Hyundai Santa Fe and Kia Sedona applications.

This part cross-references Monroe Shocks & Struts (e.g., 21-5354, 57100-26500) for the same application.

What It Helps Address

• Hard or inconsistent steering effort
• Noise from a worn power steering pump
• Loss of hydraulic pressure in the steering system
• Fluid leakage at the pump housing or outlet connection
• Poor steering assist on Hyundai Santa Fe or Kia Sedona models

Installation Notes and Tips

Verify the vehicle’s reservoir configuration before installation, since this pump is listed without a reservoir and is specified for remote reservoir systems. Transfer the sensor from the original pump on the 2003-2004 and 2006 Hyundai Santa Fe applications exactly as directed in the fitment notes; incorrect transfer can lead to shaft seal failure from excessive pressure. Confirm the outlet thread size, hose port type, and pulley attachment style match the original unit before installation.

Quality Assurance

This remanufactured Maval power steering pump is built to replace the original pump in the listed applications and is intended to meet the connection and configuration requirements of those vehicles. Part number 96744M should be matched to the vehicle’s original steering pump setup for proper fitment.
