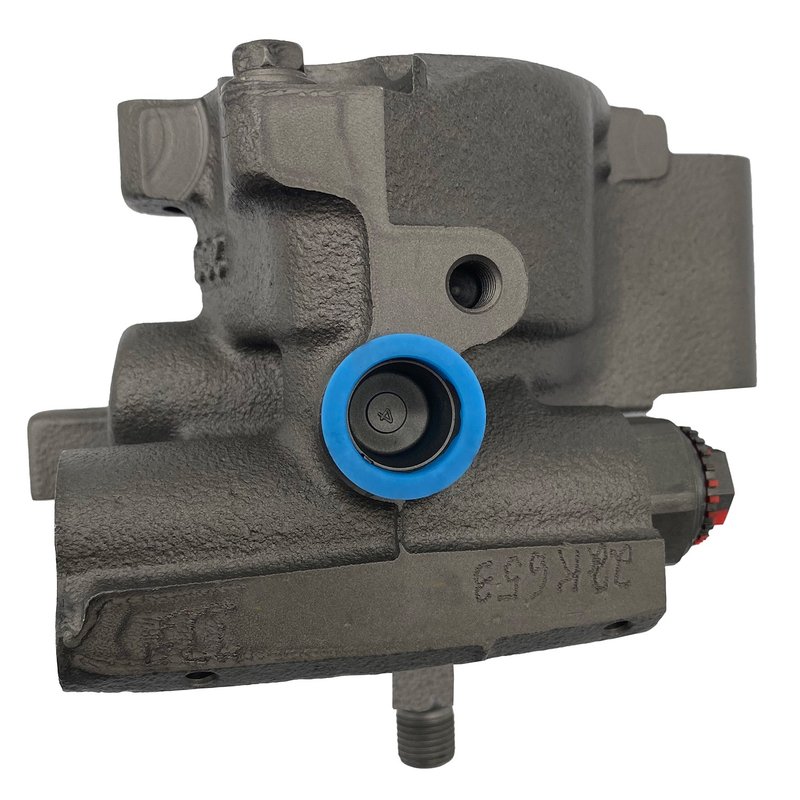

Maval 96775M Power Steering Pump - Front
| Brand | Maval 96775M |
|---|---|
| Position | Front |
| Pulley Included | No |
| Outlet Attachment Type | Threaded |
| Housing Material | Cast iron |
| Outlet Quantity | 1 |
| Reservoir Included | No |
| Remote Reservoir | Yes |
| Hose Port Type | Seat |
| Inlet Attachment Type | Hose barb |
| Outlet Thread Size | 16x1.5 |
| Pulley Attachment Type | Bolt-on |
| Product line | Remanufactured Power Steering Pump |
| Fits | Lexus · 2 vehicles |
Remanufactured unit. A cost-effective replacement for restoring steering assist.
Cast iron housing. Built with a durable housing for dependable operation.
Threaded outlet. Seat-style port and hose-barb inlet simplify connections.
Cross-references Cardone Reman 21-5230 and 44320-32160 for the same application. See all 2.
Remanufactured Power Steering Pump for Lexus ES250
The Maval 96775M remanufactured power steering pump is built for 1990-1991 Lexus ES250 front applications. It features a cast iron housing, a threaded outlet, and a hose barb inlet with a remote reservoir setup for the correct steering system configuration.
Key Features
- Remanufactured power steering pump from Maval
- Fits 1990-1991 Lexus ES250, front
- Cast iron housing for durable pump construction
- Remote reservoir design with no reservoir included
- Threaded outlet attachment type with 16x1.5 outlet thread size
- Hose barb inlet attachment type and seat-style hose port
- Pulley not included; bolt-on pulley attachment type
Product Details
The Maval Remanufactured Power Steering Pump line focuses on OE-style replacement components for steering service. Part number 96775M is configured for Lexus ES250 models with a remote reservoir system and a single threaded outlet, making it a direct-match option for the specified front application. This part cross-references Cardone Reman 21-5230 for the same application. The Maval 96775M is also referenced by OE number 44320-32160.
Common Steering Issues This Pump Can Address
- Low or inconsistent power steering assist
- Whining or pump noise from a worn hydraulic unit
- Fluid leakage at the pump outlet or return connection
- Steering effort that increases during low-speed turns
- Loss of steering response caused by internal pump wear
Installation Notes and Tips
For 1990-1991 Lexus ES250 front applications, replace the O-ring between the pump and return fitting to prevent noise and leakage. Clean the reservoir screen thoroughly before installation so contaminants do not circulate through the steering system. Verify the threaded outlet, hose barb inlet, and remote reservoir layout match the vehicle before installation. Part number 96775M does not include a pulley or reservoir.
Quality Assurance
This remanufactured Maval power steering pump is built as a service replacement for the listed Lexus ES250 applications and is intended to restore proper hydraulic steering operation when installed to the correct system configuration.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1991 | Lexus | ES250 | Base | Front | (All Models); If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
| 1990 | Lexus | ES250 | Base | Front | (All Models); If the O-ring between the pump and return fitting is not replaced, noise and leakage will occur. In addition, reservoir screen needs to be free of all contaminants.; Remanufactured Power Steering Pump |
