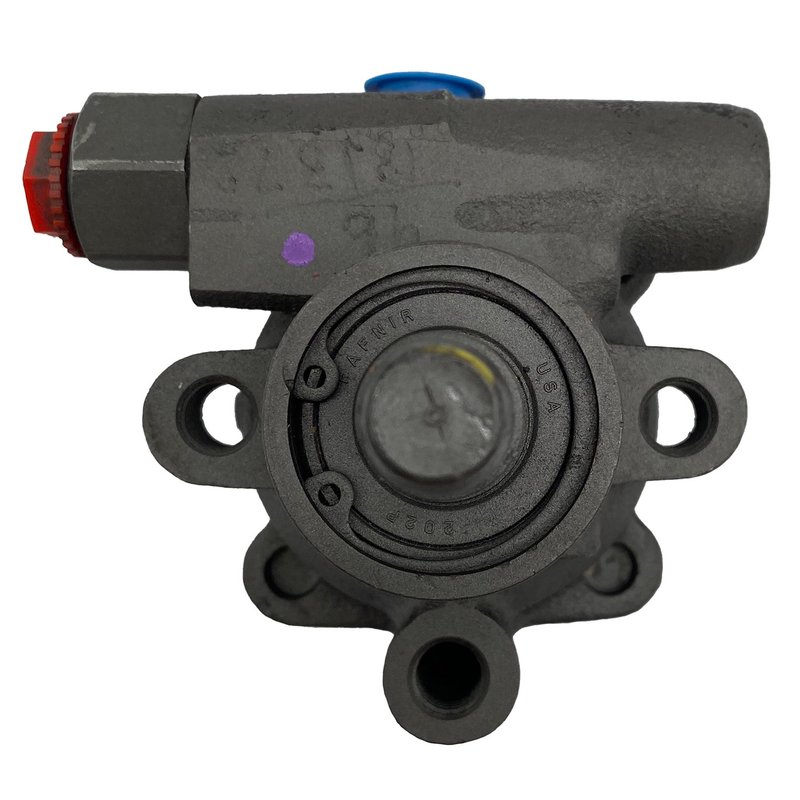

Maval 9696M Power Steering Pump
Remanufactured Power Steering Pump for Mazda 626
The Maval 9696M remanufactured power steering pump is built for 1983-1987 Mazda 626 applications with a 17 spline shaft. It uses a cast iron housing, a remote reservoir setup, and a threaded outlet connection to support proper hydraulic steering performance.
This Maval remanufactured power steering pump, part number 9696M, is a direct-fit steering component for Mazda 626 models in the listed years. It is supplied without a pulley and without a reservoir, so the original pulley must be transferred using the proper pulley removal and installation tool.
Key Features
- Remanufactured power steering pump from Maval
- Fits 1983-1987 Mazda 626, N/A
- Cast iron housing for durable pump construction
- Remote reservoir design
- 1 threaded outlet with 16x1.5 outlet thread size
- Hose barb inlet attachment type
- Seat-style hose port type
- Pulley attachment type: bolt-on
- Pulley not included
- Mounting hardware not included
Product Details
Built for hydraulic steering systems, the 9696M is a remanufactured power steering pump intended for Mazda 626 vehicles equipped with the specified 17 spline shaft configuration. The threaded outlet and hose barb inlet support the original-style hose connections, while the remote reservoir layout matches applications that use a separate fluid reservoir. This part cross-references Cardone Reman 21-5621 for the same application.
Common Steering Issues This Pump Can Address
- Hard steering effort at low speeds
- Whining or groaning from a worn pump
- Loss of hydraulic pressure in the steering system
- Fluid leakage from a failing pump assembly
- Inconsistent steering assist during turns
Installation Notes and Tips
Verify the vehicle has the correct 17 spline shaft before installation. Transfer the original pulley with the proper pulley removal and installation tool, since the pulley is not included. Confirm hose routing, outlet thread size, and reservoir configuration before final assembly. This part is listed for 1983-1987 Mazda 626, N/A, and the fitment should be matched to the vehicle’s steering system configuration.
Quality Assurance
Maval remanufactured steering components are rebuilt to restore serviceable operation for the listed application. Part number 9696M is intended for direct replacement use on the specified Mazda 626 fitment.
| Brand | Maval |
|---|---|
| Part Number | 9696M |
| Position | Remanufactured Power Steering Pump |
| Pulley Included | No |
| Outlet Attachment Type | Threaded |
| Mounting Hardware Included | No |
| Housing Material | Cast iron |
| Outlet Quantity | 1 |
| Reservoir Included | No |
| Remote Reservoir | Yes |
| Reservoir Cap Included | No |
| Hose Port Type | Seat |
| Inlet Attachment Type | Hose barb |
| Outlet Thread Size | 16x1.5 |
| Pulley Attachment Type | Bolt-on |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1987 | Mazda | 626 | N/A | (All w/17 Spline Shaft); Pulley needs to be transferred with proper pulley removal/install tool.; Remanufactured Power Steering Pump |
| 1986 | Mazda | 626 | N/A | (All w/17 Spline Shaft); Pulley needs to be transferred with proper pulley removal/install tool.; Remanufactured Power Steering Pump |
| 1985 | Mazda | 626 | N/A | (All w/17 Spline Shaft); Pulley needs to be transferred with proper pulley removal/install tool.; Remanufactured Power Steering Pump |
| 1984 | Mazda | 626 | N/A | (All w/17 Spline Shaft); Pulley needs to be transferred with proper pulley removal/install tool.; Remanufactured Power Steering Pump |
| 1983 | Mazda | 626 | N/A | (All w/17 Spline Shaft); Pulley needs to be transferred with proper pulley removal/install tool.; Remanufactured Power Steering Pump |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
