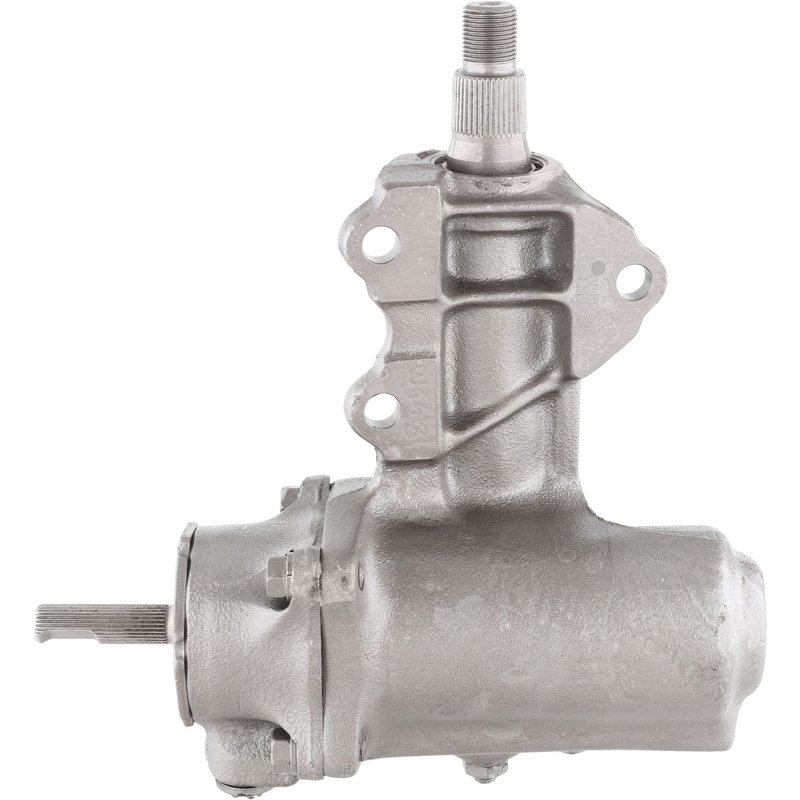

Maval 98155M Steering Gear Box
OE Quality 60-Day Returns
Maval
 Remanufactured Gearbox

Maval 98155M Steering Gear Box

Brand Maval 98155M
Output Shaft Diameter 1.19
Output Shaft Diameter 30.1
Input Shaft Diameter 0.57
Input Shaft Diameter 14.48
Total Turns Lock To Lock 4.0 to 4.3
Hose Port Type O-ring & annealed washer
Input Shaft Type Splined, whistle notch
Mounting Hole Quantity 3
Pressure Port Thread Size M14 x 1.5
Pump Rotation Standard
Return Port ID Size 0
Return Port Thread Size M16 x 1.5
Steering Input Shaft Spline Quantity 30
Product line Remanufactured Gearbox
Fits Chevrolet, Geo, and Suzuki · 55 vehicles

Remanufactured design. Built as a direct replacement steering gear box for supported applications.

OE-style connections. Uses O-ring and annealed washer ports with standard hydraulic thread sizes.

Precise steering travel. Listed at 4.0 to 4.3 turns lock to lock for the specified fitments.

Cross-references Cardone Reman 27-8461 and 48600-77E500 for the same application. See all 2.

$469.00Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $469.00
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Gear Box options

Overview

This Maval remanufactured steering gear box is built for direct replacement in supported applications. It is a fitment-based solution for restoring steering response on vehicles such as the Chevrolet Tracker, Suzuki Sidekick, and Geo Tracker.

Part number 98155M identifies this steering gear box for the listed applications. The remanufactured design and OE-style port and shaft specifications make it a practical choice when replacing a worn steering gear.

Key Features

  • Remanufactured steering gear box for direct replacement use
  • 30-spline steering input shaft with splined, whistle-notch design
  • O-ring and annealed washer hose port type
  • Standard pump rotation
  • Three mounting holes for the specified applications
  • Part number 98155M for ordering and fitment reference

Detailed Description

Maval 98155M is a remanufactured steering gear box engineered around the original connection points and hydraulic port layout used in the listed fitments. It features a 1.19-inch output shaft diameter, a 0.57-inch input shaft diameter, M14 x 1.5 pressure port threads, and M16 x 1.5 return port threads. Total steering travel is listed at 4.0 to 4.3 turns lock to lock.

Compatible With 1990-1998 Chevrolet Tracker, 1990-1997 Geo Tracker, 1992-1998 Suzuki Sidekick, and 1996-1998 Suzuki X-90. Use part number 98155M when matching the steering gear box to the correct application. This part cross-references Cardone Reman 27-8461 for the same application.

What It Is Used For

  • Replacing a worn or leaking steering gear box
  • Restoring steering feel with excessive play
  • Addressing hydraulic port or shaft wear issues
  • Correcting steering response problems in supported vehicles

Installation Notes

Verify the input shaft spline count, port thread sizes, and mounting configuration before installation. Confirm the vehicle application against the fitment list for Chevrolet Tracker, Suzuki Sidekick, Suzuki X-90, and Geo Tracker models. Professional installation and system inspection are recommended after replacement.

Quality Assurance

Maval remanufactured steering components are rebuilt to match the original application requirements for the listed fitments. Part number 98155M is specified for the supported vehicles and can be used to confirm the correct steering gear box before ordering.

Related reading

This part fits 55 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelNotes
1998ChevroletTrackerBaseFits all models.; Remanufactured Gearbox
1998ChevroletTrackerDeluxFits all models.; Remanufactured Gearbox
1998ChevroletTrackerLSiFits all models.; Remanufactured Gearbox
1998ChevroletTrackerLuxFits all models.; Remanufactured Gearbox
1998SuzukiSidekickJLX SportFits all models.; Remanufactured Gearbox
1998SuzukiSidekickJS SportFits all models.; Remanufactured Gearbox
1998SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1998SuzukiSidekickJX SportFits all models.; Remanufactured Gearbox
1998SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1998SuzukiX-90BaseFits all models.; Remanufactured Gearbox
1998SuzukiX-90SEFits all models.; Remanufactured Gearbox
1997GeoTrackerBaseFits all models.; Remanufactured Gearbox
1997GeoTrackerLSiFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJAFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJLX SportFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJX SportFits all models.; Remanufactured Gearbox
1997SuzukiSidekickJS SportFits all models.; Remanufactured Gearbox
1997SuzukiX-90BaseFits all models.; Remanufactured Gearbox
1996GeoTrackerBaseFits all models.; Remanufactured Gearbox
1996GeoTrackerLSiFits all models.; Remanufactured Gearbox
1996SuzukiSidekickJAFits all models.; Remanufactured Gearbox
1996SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1996SuzukiSidekickJX SportFits all models.; Remanufactured Gearbox
1996SuzukiSidekickJLX SportFits all models.; Remanufactured Gearbox
1996SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1996SuzukiX-90BaseFits all models.; Remanufactured Gearbox
1995GeoTrackerBaseFits all models.; Remanufactured Gearbox
1995GeoTrackerLSiFits all models.; Remanufactured Gearbox
1995SuzukiSidekickJLXFits all models.; Remanufactured Gearbox
1995SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1995SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1994GeoTrackerBaseFits all models.; Remanufactured Gearbox
1994GeoTrackerLSiFits all models.; Remanufactured Gearbox
1994SuzukiSidekickJLXFits all models.; Remanufactured Gearbox
1994SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1994SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1993GeoTrackerBaseFits all models.; Remanufactured Gearbox
1993GeoTrackerLSiFits all models.; Remanufactured Gearbox
1993SuzukiSidekickBaseFits all models.; Remanufactured Gearbox
1993SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1993SuzukiSidekickJLXFits all models.; Remanufactured Gearbox
1993SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1992GeoTrackerBaseFits all models.; Remanufactured Gearbox
1992GeoTrackerLSiFits all models.; Remanufactured Gearbox
1992SuzukiSidekickJLXFits all models.; Remanufactured Gearbox
1992SuzukiSidekickJSFits all models.; Remanufactured Gearbox
1992SuzukiSidekickJXFits all models.; Remanufactured Gearbox
1991ChevroletTrackerBaseFits all models.; Remanufactured Gearbox
1991GeoTrackerBaseFits all models.; Remanufactured Gearbox
1991GeoTrackerLSiFits all models.; Remanufactured Gearbox
1990ChevroletTrackerBaseFits all models.; Remanufactured Gearbox
1990GeoTrackerBaseFits all models.; Remanufactured Gearbox
1990GeoTrackerLSiFits all models.; Remanufactured Gearbox
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 27-846148600-77E500
