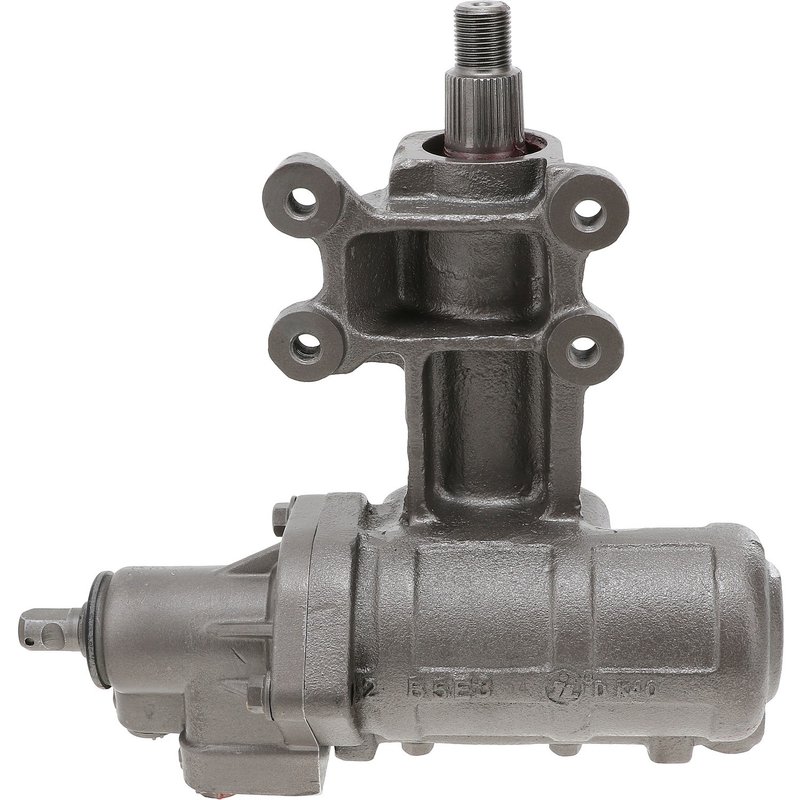

Maval 98183M Steering Gear Box

Maval Remanufactured Steering Gear Box 98183M

The Maval 98183M remanufactured steering gear box is built for Jeep Wrangler steering systems that need precise gear engagement and OE-style port and shaft dimensions. It is a direct-fit remanufactured gearbox for select 2007-2018 Jeep Wrangler applications, including 2018 Jeep Wrangler JK and 2017 Jeep Wrangler.

Key Features

• Remanufactured steering gear box from Maval
• Part number 98183M for accurate ordering and replacement matching
• 32-spline output shaft with 1.25 in. (31.75 mm) diameter
• 0.71 in. (18.03 mm) input shaft diameter
• 2.93 total turns lock to lock
• M18x1.50 pressure port thread size and inlet size
• M16x1.50 return port thread size and outlet size
• 4 mounting holes for the specified steering gear mounting pattern

Product Details

Maval 98183M is a remanufactured gearbox for Jeep Wrangler steering applications that require the listed shaft, port, and mounting specifications. The gear box uses a 32-spline output shaft, a 1.25-inch output shaft diameter, and a 0.71-inch input shaft diameter, with 2.93 turns lock to lock for steering response consistent with the application. The M18x1.50 pressure port and M16x1.50 return port help match the original hydraulic connection layout on compatible Jeep Wrangler models. This part cross-references Monroe Shocks & Struts (e.g., 27-5208, 52126348AC) for the same application.

Compatible With 2018 Jeep Wrangler JK, N/A; 2017 Jeep Wrangler, N/A; and 2007-2016 Jeep Wrangler, N/A (LHD w/ 4 door). Search terms such as Jeep Wrangler steering gear box replacement, remanufactured Jeep Wrangler gearbox, and 2007-2018 Jeep Wrangler steering gear box are commonly used for this application. The Maval 98183M part number is also useful when matching a replacement steering gearbox to the original unit.

Common Problems This Part Addresses

• Excessive steering play or looseness at the steering wheel
• Uneven or delayed steering response
• Hydraulic steering gear leakage at the pressure or return ports
• Worn internal gear components affecting steering feel
• Replacement needs after steering box wear on Jeep Wrangler models

Installation Notes and Tips

Verify the output shaft spline count, shaft diameters, port thread sizes, and mounting hole layout before installation. Confirm the vehicle configuration matches the listed fitment, including the 2007-2016 Jeep Wrangler LHD 4-door application. After installation, inspect hydraulic connections for proper thread engagement and check steering operation through the full lock-to-lock range.

Quality Assurance

This Maval remanufactured steering gear box is rebuilt to restore the specified steering gear function for the listed Jeep Wrangler applications. Use the part number 98183M and the published dimensions to confirm the correct replacement before installation.
