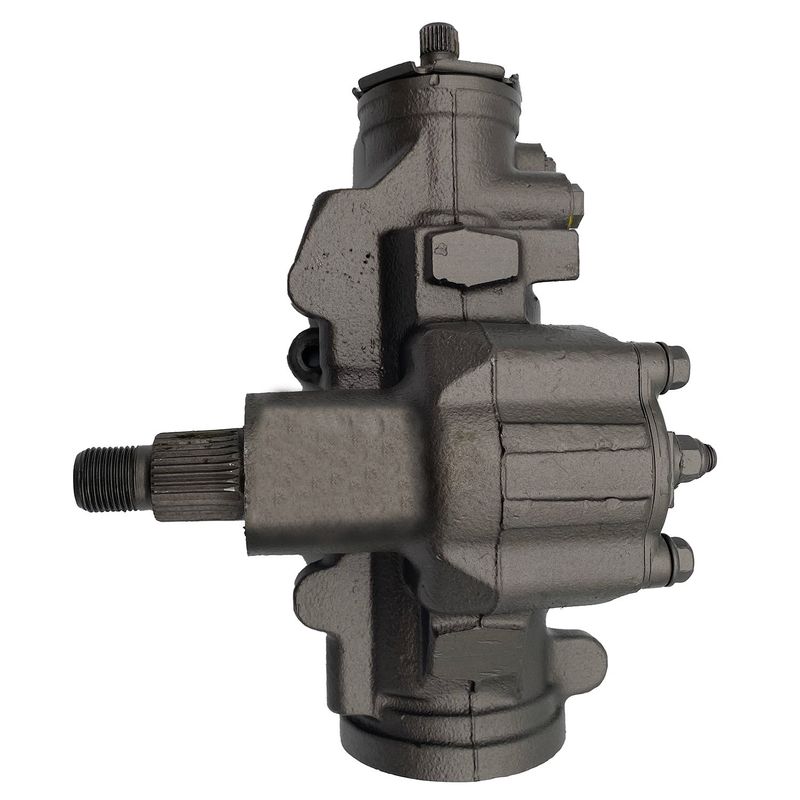

Maval 9833M Steering Gear Box
OE Quality 60-Day Returns
Maval
 Remanufactured Gearbox

Maval 9833M Steering Gear Box

Brand Maval 9833M
Output Shaft Diameter 1.25
Output Shaft Diameter 31.75
Input Shaft Diameter 0.73
Input Shaft Diameter 18.42
Total Turns Lock To Lock 2.6
Hose Port Type O-ring
Input Shaft Type Splined, single flat
Number of Mounting Holes 3
Pitman Arm Included No
Pressure Port Thread Size M18 x 1.5
Pump Rotation Reverse
Return Port Thread Size M16 x 1.5
Steering Input Shaft Spline Quantity 25
Product line Remanufactured Gearbox
Fits Chevrolet and GMC · 20 vehicles

Remanufactured gearbox. Restored for dependable steering performance.

Splined input shaft. Single-flat design for secure engagement.

O-ring hose ports. Helps provide a tight, leak-resistant connection.

Cross-references Cardone Reman 27-7558 and 26087044 for the same application. See all 2.

$456.77Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $456.77
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Steering Gear Box options

Remanufactured steering gear box for Astro and Safari

The Maval 9833M remanufactured steering gear box is built for direct replacement in select Chevrolet Astro and GMC Safari applications. It is specified with a 2.6 total turns lock to lock, reverse pump rotation, and O-ring hose ports for a service-ready steering repair.

Key features

  • Remanufactured steering gear box from Maval Remanufactured Gearbox
  • Part number 9833M for catalog and interchange lookup
  • 25-spline steering input shaft with splined, single-flat input design
  • 1.25 in. output shaft diameter and 0.73 in. input shaft diameter
  • 3 mounting holes for the listed steering gear application
  • Pressure port thread size: M18 x 1.5
  • Return port thread size: M16 x 1.5
  • Hose port type: O-ring
  • Pitman arm not included

Detailed description

Maval 9833M is a remanufactured steering gearbox engineered for vehicles that use the listed shaft, port, and mounting specifications. It is a fitment-based replacement for 1985-1994 Chevrolet Astro and 1985-1994 GMC Safari models, making it a practical choice when restoring steering response in these vans. This part cross-references Cardone Reman 27-7558 for the same application.

The Maval Remanufactured Gearbox line focuses on replacement steering components built around OE-style dimensions and connection points. For buyers searching for a remanufactured steering gear box for Chevrolet Astro or GMC Safari, 9833M provides the key dimensional details needed to verify application match before installation.

What it is used for

  • Replacing a worn steering gear box with excessive play
  • Addressing steering looseness or delayed steering response
  • Correcting fluid leakage at the steering gear ports
  • Restoring proper steering feel in Astro and Safari vans
  • Matching a remanufactured gearbox to the listed shaft and port specifications

Installation notes and tips

Verify the steering input shaft type, 25-spline count, mounting hole count, and pressure/return port thread sizes before installation. Confirm reverse pump rotation and compare the output shaft diameter and lock-to-lock specification against the removed unit. Pitman arm is not included, so reuse or replacement should be confirmed separately based on the vehicle setup.

Quality assurance

This Maval steering gear box is remanufactured for replacement use and should be matched to the vehicle by part number and physical specifications. Confirm fitment for 1985-1994 Chevrolet Astro and 1985-1994 GMC Safari before ordering.

  • Fits 1985-1994 Chevrolet Astro, N/A
  • Fits 1985-1994 GMC Safari, N/A

Related reading

This part fits 20 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
1994ChevroletAstroRemanufactured Gearbox
1994GMCSafariRemanufactured Gearbox
1993ChevroletAstroRemanufactured Gearbox
1993GMCSafariRemanufactured Gearbox
1992ChevroletAstroRemanufactured Gearbox
1992GMCSafariRemanufactured Gearbox
1991ChevroletAstroRemanufactured Gearbox
1991GMCSafariRemanufactured Gearbox
1990ChevroletAstroRemanufactured Gearbox
1990GMCSafariRemanufactured Gearbox
1989ChevroletAstroRemanufactured Gearbox
1989GMCSafariRemanufactured Gearbox
1988ChevroletAstroRemanufactured Gearbox
1988GMCSafariRemanufactured Gearbox
1987ChevroletAstroRemanufactured Gearbox
1987GMCSafariRemanufactured Gearbox
1986ChevroletAstroRemanufactured Gearbox
1986GMCSafariRemanufactured Gearbox
1985ChevroletAstroRemanufactured Gearbox
1985GMCSafariRemanufactured Gearbox
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 27-755826087044
