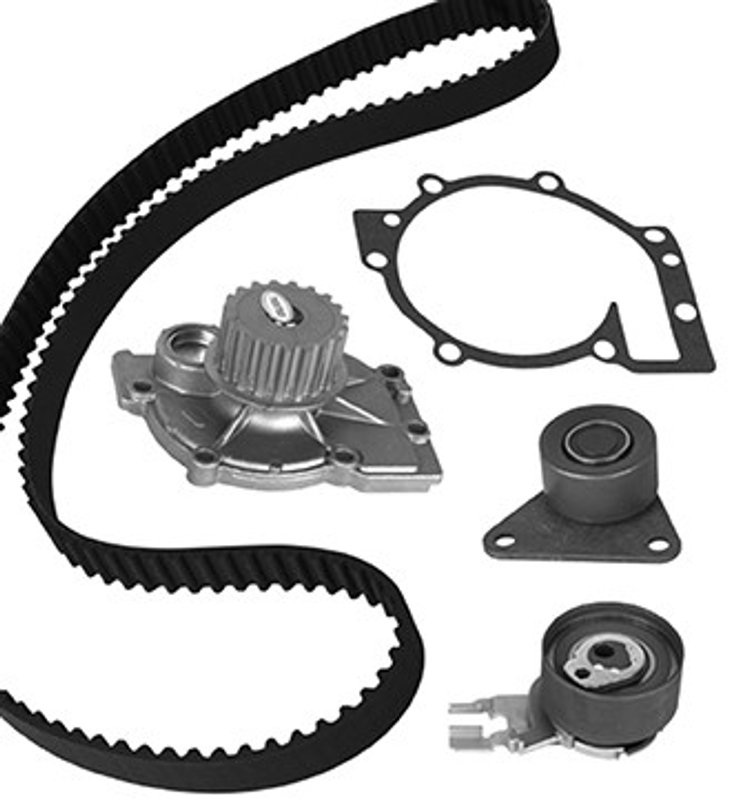

Metelli KP1019-2 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump

Metelli KP1019-2 is an engine timing belt kit with water pump for select Volvo applications. It combines the timing belt, tensioner, idler, water pump, and gasket in one service package for maintenance on Volvo C30, C70, V50, S60, S40, V70, XC70, S80, and XC90 models.

Built with an aluminium housing, metal impeller, roller/ball bearing design, and included pulley and seal, this kit is specified for timing system service where accurate belt tracking and coolant circulation are required.

Key Features

• Metelli KP1019-2 engine timing belt kit with water pump
• Includes water pump, timing belt, tensioner, idler, and gasket
• Aluminium pump housing with metal impeller
• Roller/ball bearing construction for the pump assembly
• 7-vane impeller design
• Timing belt specification: 142 teeth and 23 mm width
• Pulley included with 19 teeth and 26.8 mm width
• Gasket or seal included

Product Details

This Metelli timing belt kit is built for Volvo engine service where the belt drive and coolant pump are serviced together. The water pump uses a metal impeller and aluminium housing, while the timing belt and tensioning components are matched to the listed application requirements. KP1019-2 is a direct-fit service part for vehicles including Volvo C30, C70, V50, S60, S40, V70, XC70, S80, and XC90 within the stated year ranges. This part cross-references Continental TB331LK2 for the same application.

Common Service Issues Addressed

• Timing belt wear, cracking, or loss of tension
• Water pump leakage or coolant seepage
• Noise from a worn tensioner or idler bearing
• Coolant circulation problems caused by pump wear
• Service interval replacement on Volvo timing drive systems

Installation Notes and Tips

Verify engine code and build range before ordering, especially for Volvo S60, V70, XC70, S80, and XC90 applications that note engines starting from Eng# 3188689. Replace the timing belt system as a complete service to keep belt tracking, tension, and coolant pump operation aligned. Confirm pulley and gasket placement during installation and follow the vehicle manufacturer’s timing marks and torque specifications.

Quality Assurance

Metelli supplies this kit as a new replacement part with the listed pump, belt, tensioner, idler, pulley, and seal specifications. The product is engineered for the stated Volvo fitments and timing service requirements.
