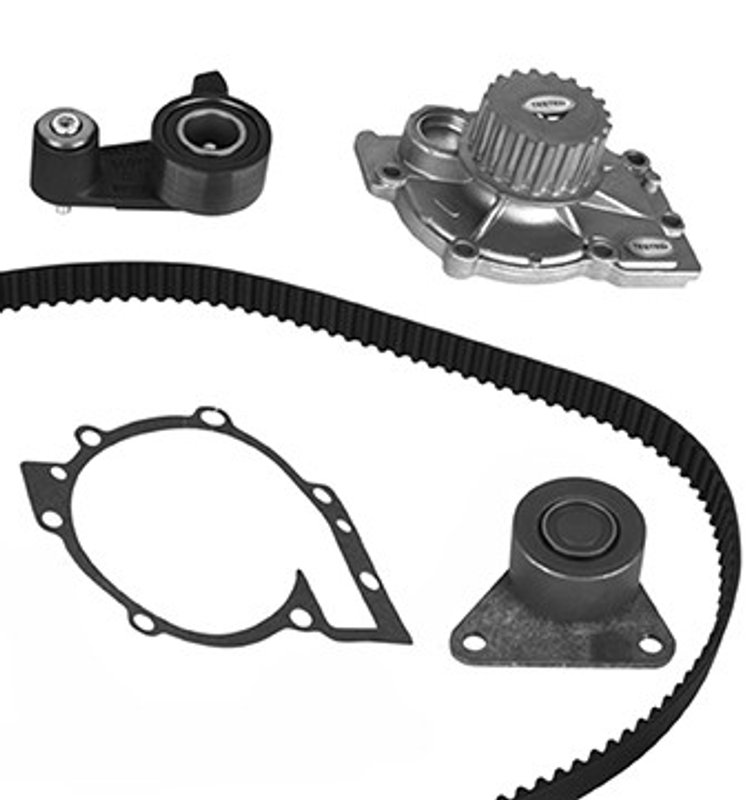

Metelli KP1019-3 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump

Metelli KP1019-3 is an engine timing belt kit with water pump for selected Volvo applications. It combines the timing belt, tensioner, one idler, and water pump components needed for service work on the timing system, with fitment listed for 1998-2002 Volvo C70 and 2000 Volvo S40.

The Metelli Water Pump, Timing Belt, Tensioner, 1 Idler line is built for timing service applications where belt drive condition and coolant circulation are serviced together. This kit includes a metal impeller water pump with an aluminum housing, pulley, gasket or seal, and a roller/ball bearing design for the pump assembly.

Key Features

• Metelli KP1019-3 engine timing belt kit with water pump
• Fits 1998-2002 Volvo C70 and 2000 Volvo S40
• Water pump housing material: aluminum
• Impeller material: metal with 7 vanes
• Timing belt specification: 148 teeth, 23 mm width
• Water pump includes pulley and gasket or seal
• New replacement part

Detailed Description

Metelli KP1019-3 is a timing service kit for Volvo engines that require coordinated replacement of the belt drive and water pump. The kit is listed for 1998-2002 Volvo C70, including engines identified with engine number 1266127, and for 2000 Volvo S40 with engine number 1219110. This part cross-references Bosch 41928 and Continental TB252LK1 for the same application.

Built around a metal impeller water pump with an aluminum housing, this kit also includes a timing belt, tensioner, one idler, and gasket. The pump assembly uses a roller/ball bearing design, a 72 mm impeller outside diameter, a 30 mm bearing outside diameter, and a pulley with 19 teeth and 26.8 mm width. The timing belt is specified at 148 teeth and 23 mm width, supporting direct replacement service on the listed Volvo C70 and Volvo S40 applications.

Common Service Issues Addressed

• Timing belt wear, cracking, or loss of tension
• Water pump leakage at the housing or seal area
• Coolant circulation problems caused by pump wear
• Noise from worn tensioner or idler components
• Service interval replacement on Volvo C70 and Volvo S40 timing systems

Installation Notes and Tips

Verify engine number and application details before installation, especially on the 1998-2002 Volvo C70 and 2000 Volvo S40 listings. Replace the timing components as a matched set during scheduled service, and confirm pulley alignment, belt routing, and coolant system sealing before returning the vehicle to service.

Quality Assurance

Metelli supplies new replacement engine components built to support timing system service with the specified pump, belt, tensioner, and idler configuration. The included gasket or seal and pulley help support a complete installation on the listed Volvo applications.
