Metelli KP1355-1 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump

Metelli KP1355-1 is an engine timing belt kit with water pump for select Volkswagen applications. It combines timing components and cooling system service parts in one replacement package, helping restore proper camshaft timing and water pump operation during scheduled maintenance.

Key Features

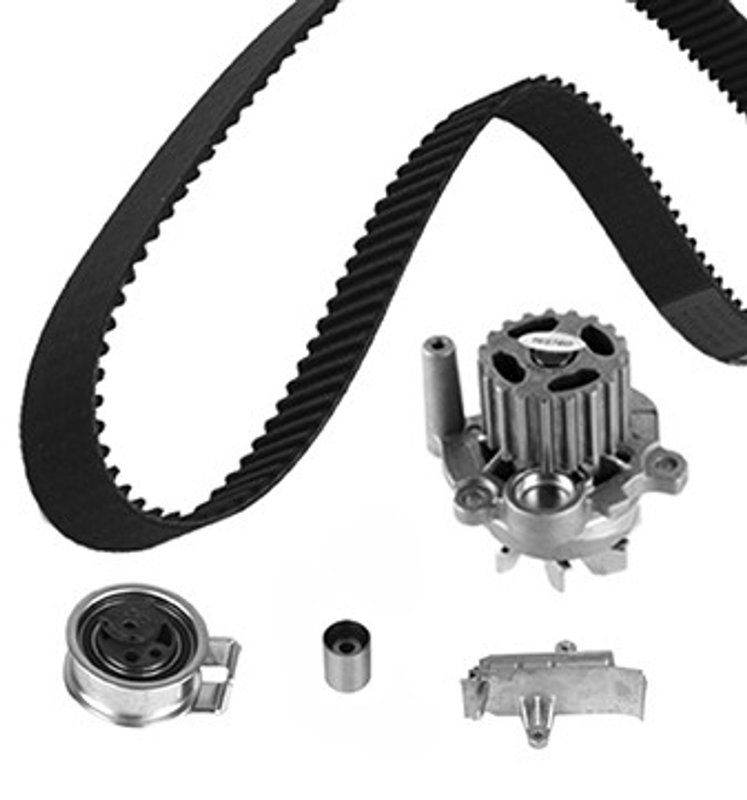

• Includes a water pump, timing belt, tensioner, tensioner roller, idler, damper, and O-ring
• Water pump housing made from aluminium with a metal impeller
• Impeller uses 7 vanes for coolant circulation
• Timing belt has 120 teeth and a 30 mm width
• Pulley included and gasket or seal included
• Bearing type: roller/ball
• New replacement part

Product Details

The Metelli KP1355-1 timing belt kit is built for service work where the belt drive and water pump are replaced together. The kit’s aluminium pump housing, metal impeller, and included seal components support a complete timing service on engines that use this configuration. This part number, KP1355-1, is listed for 2004-2006 Volkswagen Beetle, 2004-2006 Volkswagen Golf, and 2004-2005 Volkswagen Jetta. This part cross-references select OE and aftermarket numbers such as 03L 121 011B and CT1028WP7 for the same application.

Common Repair Uses

• Replacing a worn timing belt during scheduled engine service
• Addressing coolant leaks from the water pump assembly
• Correcting belt noise from tensioner, idler, or roller wear
• Restoring proper engine timing after belt system maintenance
• Servicing a Volkswagen Beetle, Golf, or Jetta timing drive with matched components

Installation Notes

Verify engine code and OE reference before installation, since timing belt kits can vary by engine configuration. Replace the belt drive components and water pump together when the service interval calls for it, and follow factory timing marks, torque specifications, and coolant refill procedures. Confirm pulley tooth count, belt width, and pump seal fitment before assembly. Fits 2004-2006 Volkswagen Beetle, N/A; Fits 2004-2006 Volkswagen Golf, N/A; Fits 2004-2005 Volkswagen Jetta, N/A.

Quality Assurance

Metelli supplies engine timing components and water pumps for service replacement applications. KP1355-1 is a new part built with the listed materials and included seals for a complete timing belt and water pump service.
