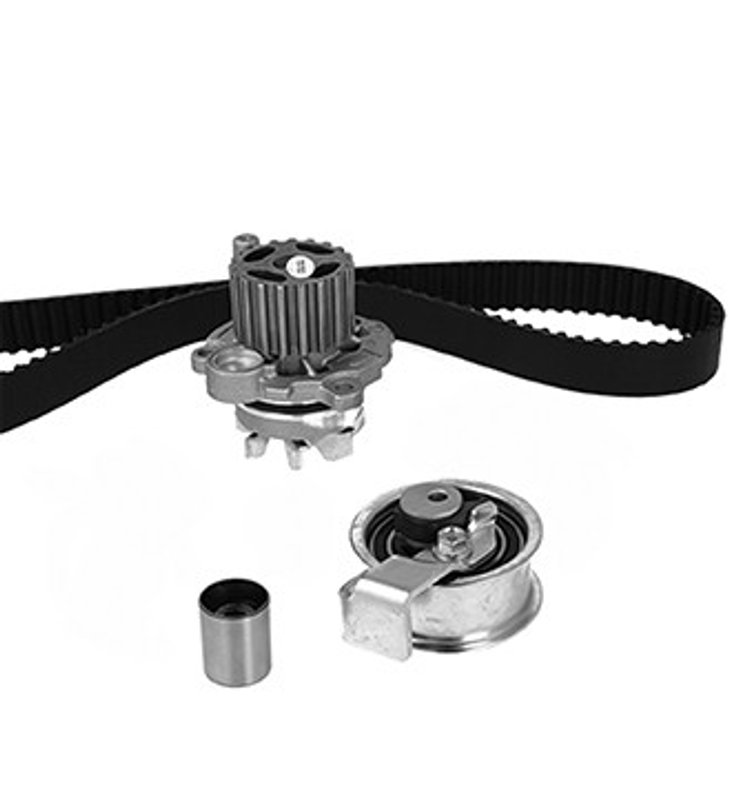

Metelli KP1355-6 Engine Timing Belt Kit with Water Pump
| Brand | Metelli KP1355-6 |
|---|---|
| Pulley Included | Yes |
| Gasket Or Seal Included | Yes |
| Housing Material | Aluminium |
| Impeller Material | Metal |
| Bearing Outside Diameter | 30 |
| Bearing Type | Roller/ball |
| Impeller Vane Quantity | 7 |
| Impeller Outside Diameter | 64 |
| Belt Teeth | 120 |
| Belth Width | 30 |
| New Or Remanufactured | New |
| Package Contents | Water pump, timing belt, tensioner, 1 idler, o-ring |
| Pulley Teeth Quantity | 19 |
| Pulley Width | 34 |
| Product line | Water Pump, Timing Belt, Tensioner, 1 Idler |
| Fits | Volkswagen · 8 vehicles |
Complete kit. Includes the water pump, timing belt, tensioner, and idler for a full service.
Aluminum housing. Metal impeller and roller/ball bearing construction for dependable cooling performance.
Seal included. Comes with a gasket or seal and O-ring for a cleaner installation.
Cross-references 1 987 946 474, 03L 109 244A and 03L 109 244C for the same application. See all 39.
Engine Timing Belt Kit with Water Pump
Metelli KP1355-6 is an engine timing belt kit with water pump for Volkswagen Beetle, Golf, and Jetta applications from 2004 through 2006. It combines timing components and cooling-system service parts in one OE-style replacement package for 2004-2006 Volkswagen Beetle, 2004-2006 Volkswagen Golf, and 2004-2005 Volkswagen Jetta service needs.
Key Features
- Includes a water pump, timing belt, tensioner, 1 idler, and O-ring
- Aluminium pump housing with metal impeller
- Roller/ball bearing design for smooth operation
- Water pump features a 7-vane impeller and 64 mm impeller outside diameter
- Timing belt specifications: 120 teeth and 30 mm width
- Pulley included, with gasket or seal included
- New replacement part, not remanufactured
- Metelli KP1355-6 for Volkswagen Beetle, Golf, and Jetta timing service
Product Details
The Metelli Water Pump, Timing Belt, Tensioner, 1 Idler line is built for timing system service where the belt drive and coolant circulation components are replaced together. KP1355-6 is specified with a metal impeller, aluminium housing, and roller/ball bearing construction, along with a pulley and sealing components for a complete service-oriented installation. This part cross-references 1 987 946 474 and 03L 109 244A for the same application.
Compatible with 2004-2006 Volkswagen Beetle, 2004-2006 Volkswagen Golf, and 2004-2005 Volkswagen Jetta, this kit is a direct-fit timing belt and water pump solution for diesel engine maintenance schedules where belt wear, tensioner condition, and pump service are addressed together. The KP1355-6 part number is also useful when searching for replacement timing components by OE reference.
Common Service Issues Addressed
- Timing belt wear, cracking, or age-related deterioration
- Noisy or worn tensioner and idler operation
- Coolant leaks from the water pump assembly
- Impeller or bearing wear affecting coolant circulation
- Timing service intervals requiring coordinated component replacement
Installation Notes
Verify engine code and vehicle application before installation, since timing belt kits are engine-specific. Inspect belt routing, pulley alignment, and sealing surfaces during service, and replace coolant as required after water pump installation. Follow factory timing marks and torque specifications to maintain correct engine timing on Volkswagen Beetle, Golf, and Jetta applications.
Quality Assurance
Metelli KP1355-6 is a new replacement timing kit built with aluminium and metal pump components for service use in Volkswagen timing applications. Confirm fitment against the vehicle’s engine configuration and OE references before ordering.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Volkswagen | Beetle | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2006 | Volkswagen | Golf | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2005 | Volkswagen | Beetle | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2005 | Volkswagen | Golf | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2005 | Volkswagen | Jetta | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2004 | Volkswagen | Beetle | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2004 | Volkswagen | Golf | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
| 2004 | Volkswagen | Jetta | 1.9L | L4 | N/A | Engine Timing Belt Kit with Water Pump includes Water Pump, Timing Belt, Tensioner, and 1 Idler.; Water Pump, Timing Belt, Tensioner, 1 Idler |
