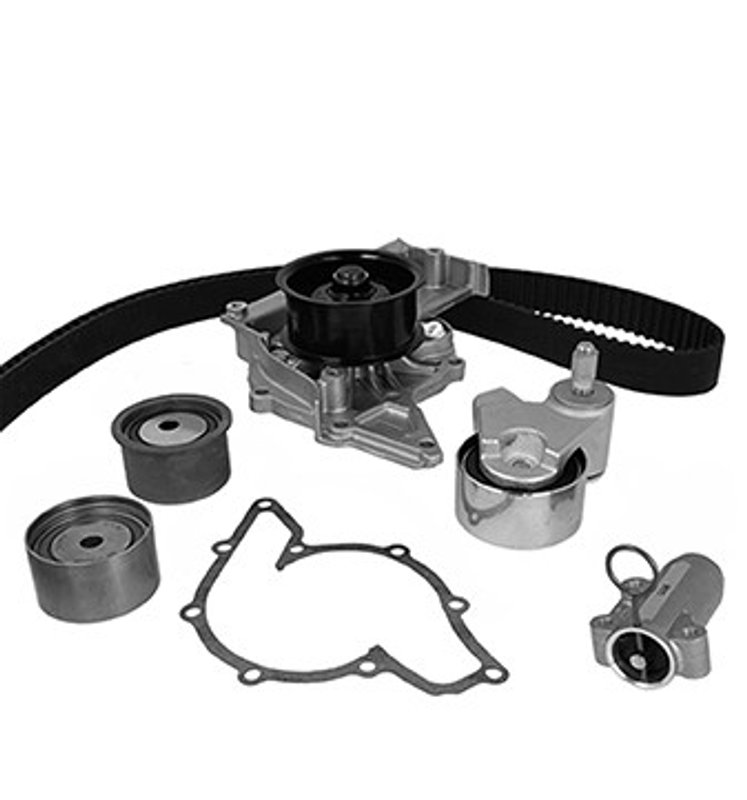

Metelli KP881-1 Engine Timing Belt Kit with Water Pump

Engine Timing Kit With Water Pump

Metelli KP881-1 is an engine timing belt kit with water pump for select Audi applications. It combines the timing belt, tensioner, tensioner roller, two idlers, water pump, and gasket in one service package for timing system maintenance on covered vehicles.

Key Features

• Includes a water pump, gasket, timing belt, tensioner, tensioner roller, and 2 idlers
• Aluminium pump housing with cast iron impeller
• Roller/ball bearing design for the pump assembly
• Impeller features 5 vanes and a 79.5 mm outside diameter
• Timing belt specifications: 281 teeth and 30 mm width
• New replacement part for engine timing service
• Cross-reference: Hepu PK05752

Product Details

The Metelli KP881-1 timing belt kit with water pump is built for engine timing service where the belt drive and cooling system are serviced together. The aluminium housing, cast iron impeller, and included gasket support a complete water pump replacement, while the timing belt and related tensioning components address wear in the valve train drive system. This part number, KP881-1, is listed for Audi A4, Audi A4 Quattro, Audi A6, and Audi A6 Quattro applications within the confirmed fitment range.

Metelli’s Water Pump, Timing Belt, Tensioner, Tensioner Roller, 2 Idlers line groups the core timing components needed for a coordinated service on covered Audi engines. For buyers searching for an Audi A4 timing belt kit with water pump or an Audi A6 Quattro engine timing belt kit, KP881-1 provides the specified component set in one assembly.

Vehicle Fitment

• Fits 2002-2006 Audi A4 Quattro, N/A
• Fits 2002-2005 Audi A4, N/A
• Fits 2002-2004 Audi A6, N/A
• Fits 2002-2004 Audi A6 Quattro, N/A

Common Repair Uses

• Timing belt wear, cracking, or service interval replacement
• Water pump leakage or coolant seepage at the pump housing
• Bearing noise or rough operation in the tensioner or idler system
• Cooling system service performed during timing belt maintenance
• Restoring proper timing drive operation on covered Audi engines

Installation Notes

Confirm engine code and vehicle application before installation. Replace the timing components as a matched service set and verify belt routing, tensioner alignment, and pump sealing surfaces during assembly. Follow the manufacturer service procedure for timing marks and final tension adjustment.

Quality Assurance

Metelli KP881-1 is a new replacement part built with an aluminium housing, cast iron impeller, and included gasket for the water pump assembly. Confirmed interchange references include Hepu PK05752 and OE-style numbers 06C 109 244, 06C 109 244C, 06C 109 244D, 06C 109 479A, 06C 109 485A, 06C 121 004C, 06C 121 004G, 06C 121 004H, 06C 121 119, 06C 121 119C, 530048030, and WP564.
