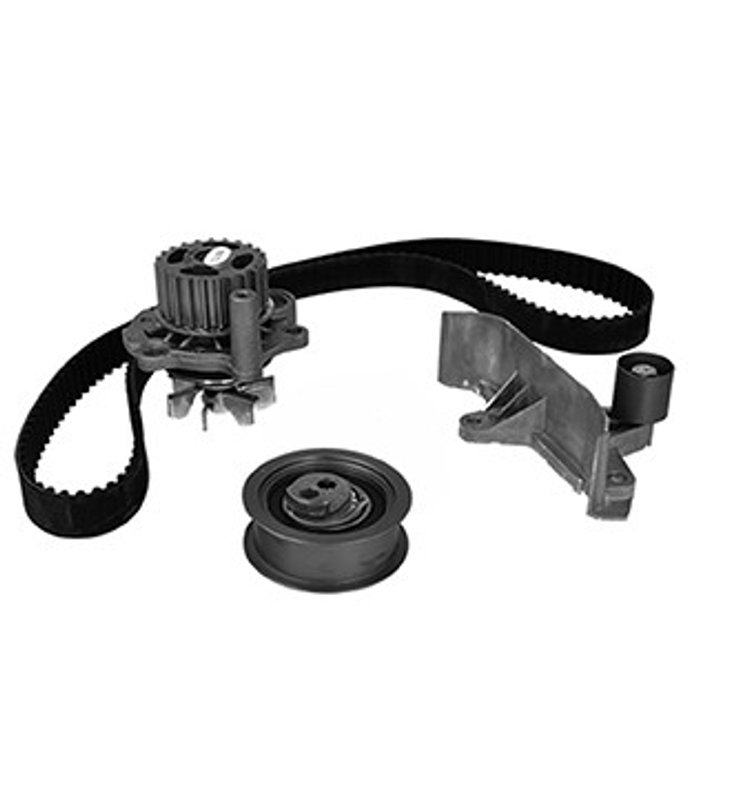

Metelli KP947-3 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump

Metelli KP947-3 is an engine timing belt kit with water pump for select Audi A4, Audi A4 Quattro, and Volkswagen Passat applications. It combines the timing belt, tensioner, damper, and water pump in one service package for vehicles from 2001 through 2006, with fitment notes for chassis 8D1042385 and later.

Key Features

• Brand: Metelli Water Pump, Timing Belt, Tensioner, Damper line
• Part number: KP947-3
• Includes water pump, timing belt, tensioner, damper, and O-ring
• Water pump housing material: aluminium
• Metal impeller with 7 vanes
• Gasket or seal included
• Pulley included
• Timing belt specification: 150 teeth, 23 mm width
• Pulley specification: 23 teeth, 26.5 mm width
• New replacement part

Product Details

The Metelli KP947-3 timing belt kit with water pump is built for engine service where synchronized valve timing and coolant circulation are both addressed in one repair. The water pump uses an aluminium housing, a metal impeller, and roller/ball bearing construction, with a 60 mm impeller outside diameter and 30 mm bearing outside diameter. This part cross-references Airtex Water Pumps AWK1322 and Continental TB306LK2-MI for the same application. It is a direct-fit service solution for Audi A4, Audi A4 Quattro, and Volkswagen Passat models listed below.

Vehicle Fitment

• Fits 2001-2006 Audi A4, N/A. Notes: Water pump, timing belt, tensioner, damper with included damper for vehicles from chassis 8D1042385.
• Fits 2001-2005 Audi A4 Quattro, N/A. Notes: Water pump, timing belt, tensioner, damper with included damper for vehicles from chassis 8D1042385.
• Fits 2001-2005 Volkswagen Passat, N/A. Notes: Water pump, timing belt, tensioner, damper with included damper for vehicles from chassis 8D1042385.

Common Repair Uses

• Replacing a worn timing belt during scheduled engine service
• Addressing coolant leaks from the water pump assembly
• Restoring proper belt tension and timing stability
• Correcting noise from a worn tensioner or damper
• Servicing a cooling system component with a new pump, seal, and pulley

Installation Notes

Verify chassis break information before ordering, especially for Audi A4 and Audi A4 Quattro applications from chassis 8D1042385. Confirm belt tooth count, belt width, and pulley dimensions against the original components before installation. Replace related timing components during the same service interval and follow factory timing procedures to maintain correct engine synchronization.

Quality Assurance

Metelli supplies engine timing components and water pump assemblies built to OE-style specifications for the listed applications. KP947-3 is a new replacement part with matched component details for the vehicles shown above.
