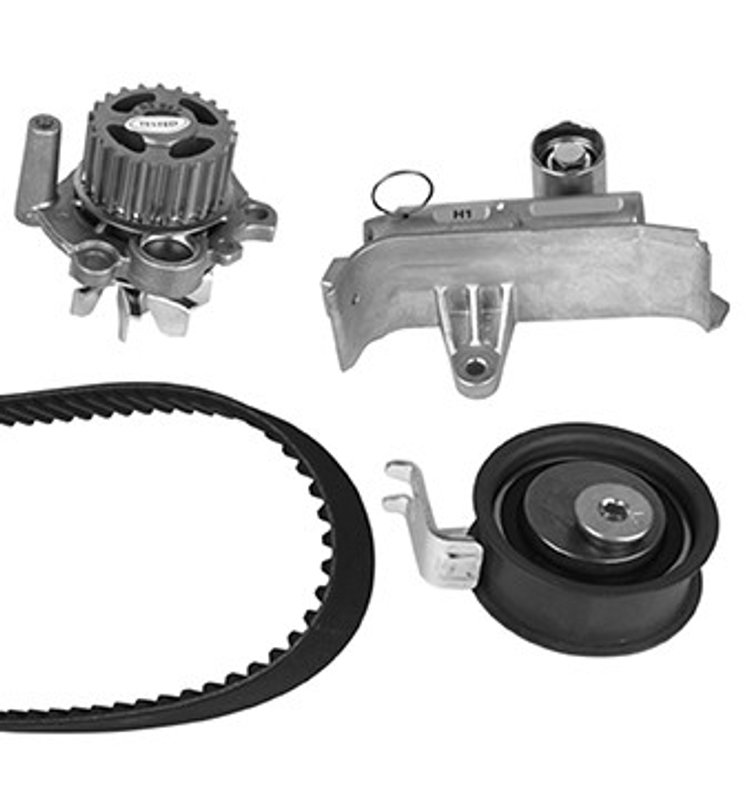

Metelli KP947-4 Engine Timing Belt Kit with Water Pump

Engine Timing Belt Kit with Water Pump

The Metelli KP947-4 is an engine timing belt kit with water pump for select Audi TT and Volkswagen applications. It combines the timing belt, water pump, tensioner, damper, and O-ring in one service kit for timing system maintenance on confirmed fitments.

Key Features

• Brand: Metelli Water Pump, Timing Belt, Tensioner, Damper line
• Part number: KP947-4
• Includes a water pump, timing belt, tensioner, damper, and O-ring
• Water pump housing material: aluminium
• Metal impeller with 7 vanes
• Pulley included with gasket or seal included
• Timing belt specification: 150 teeth, 23 mm width
• Pulley specification: 23 teeth, 26.5 mm width
• New, not remanufactured

Product Details

Metelli KP947-4 is built for timing service on vehicles that require a matched belt-and-pump setup. The water pump uses an aluminium housing, a metal impeller, a roller/ball bearing design, and a 60 mm impeller outside diameter, while the included timing belt is specified at 150 teeth and 23 mm width. This kit is a practical choice for Audi TT, Audi TT Quattro, Volkswagen Golf, Volkswagen Jetta, and Volkswagen Beetle timing belt service where the listed OE-style references apply. This part cross-references Hepu PK05474 for the same application.

Vehicle Fitment

• Fits 2001-2006 Audi TT, N/A. Notes: Water pump, timing belt, tensioner, and damper included in kit.
• Fits 2001-2002 Audi TT Quattro, N/A. Notes: Water pump, timing belt, tensioner, and damper included in kit.
• Fits 2000-2001 Audi TT, N/A. Notes: From chassis 8NY095001.
• Fits 2000 Audi TT Quattro, N/A. Notes: From chassis 8NY095001.
• Fits 2002-2006 Volkswagen Golf, N/A. Notes: Water pump, timing belt, tensioner, and damper included in kit.
• Fits 2002-2005 Volkswagen Jetta, N/A. Notes: Water pump, timing belt, tensioner, and damper included in kit.
• Fits 1999-2004 Volkswagen Beetle, N/A. Notes: From engine 028501; includes damper.
• Fits 2002-2004 Volkswagen Beetle, N/A. Notes: Water pump, timing belt, tensioner, and damper included in kit.

Common Service Uses

• Timing belt replacement on Audi TT and Volkswagen 1.8T applications
• Water pump service during scheduled timing belt maintenance
• Replacement of worn tensioner or damper components
• Correction of coolant seepage from the pump area
• Repair of belt noise, belt wear, or timing system instability

Installation Notes

Verify engine code, chassis breakpoints, and OE reference numbers before ordering, especially on Volkswagen Beetle and Audi TT applications with build-date or engine-number notes. Replace the timing components as a matched set during service, and confirm pulley and belt alignment during installation. Follow factory timing procedures and torque specifications for the engine platform.

Quality Assurance

Metelli supplies this kit as a new timing service assembly with OE-style component specifications and listed interchange references for confirmed applications. The included water pump features an aluminium housing, metal impeller, and sealed bearing construction for timing system service.
