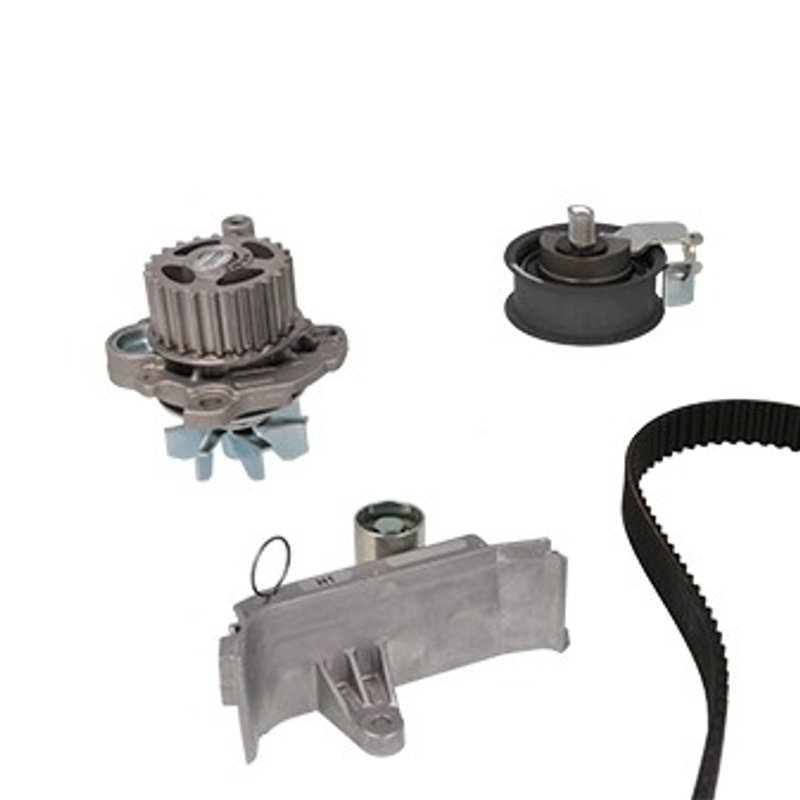

Metelli KP947-5 Engine Timing Belt Kit with Water Pump
OE Quality 60-Day Returns
Metelli
 Water Pump, Timing Belt, Tensioner,Damper

Metelli KP947-5 Engine Timing Belt Kit with Water Pump

Brand Metelli KP947-5
Bearing Outside Diameter 30
Bearing Type Roller/Ball
Belt Teeth 150
Belth Width 23
Gasket Or Seal Included YES
Housing Material Aluminium
Impeller Material Metal
Impeller Outside Diameter 60
Impeller Vane Quantity 7
New Or Remanufactured NEW
Package Contents Water Pump, Timing Belt, Tensioner, Damper, O-Ring
Pulley Included YES
Pulley Width 26.5
Product line Water Pump, Timing Belt, Tensioner,Damper
Fits Volkswagen and Audi · 9 vehicles

Complete timing kit. Includes water pump, timing belt, tensioner, and damper in one package.

Aluminum housing. Lightweight construction with a metal impeller for durable cooling performance.

Pulley and seal included. Comes ready with a pulley and gasket or seal for easier installation.

Cross-references Hepu PK05474, 03L121011B and 06A 121 011C for the same application. See all 40.

$134.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $134.32
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Belt Kit with Water Pump options

Engine Timing Belt Kit with Water Pump

Metelli KP947-5 is an engine timing belt kit with water pump for select Volkswagen Beetle and Audi TT applications. It combines the timing belt, tensioner, damper, and water pump in one service package for timing system maintenance on the listed vehicles.

Key Features

  • Brand: Metelli
  • Part number: KP947-5
  • Engine timing belt kit with water pump
  • Includes water pump, timing belt, tensioner, damper, and O-ring
  • Water pump housing material: aluminium
  • Metal impeller with 7 vanes
  • Pulley included with gasket or seal included
  • Timing belt: 150 teeth, 23 mm width
  • Pulley: 23 teeth, 26.5 mm width
  • New replacement part

Product Details

The Metelli timing belt kit and water pump assembly is built for timing service on 1999-2004 Volkswagen Beetle, 2000-2001 Audi TT, and 2000 Audi TT Quattro applications listed in the fitment data. KP947-5 is a direct service solution for engines that require coordinated replacement of the belt drive components and water pump during scheduled maintenance. This kit uses an aluminium pump housing, a metal impeller, and roller/ball bearing construction for the pump assembly. Metelli KP947-5 also cross-references Hepu PK05474 for the same application.

Vehicle Fitment

  • Fits 1999-2004 Volkswagen Beetle, N/A
  • Fits 2000-2001 Audi TT, N/A
  • Fits 2000 Audi TT Quattro, N/A

Common Service Reasons

  • Timing belt wear, cracking, or age-related replacement
  • Water pump leakage or coolant seepage
  • Noisy tensioner or damper operation
  • Cooling system service tied to timing belt maintenance
  • Restoring proper engine timing system operation

Installation Notes

Verify engine code and chassis breakpoints before ordering, especially for Volkswagen Beetle and Audi TT applications. Confirm pulley and belt dimensions against the original parts before installation. Replace the timing components as a matched set during service and follow the vehicle manufacturer’s timing alignment and torque procedures.

Quality Assurance

Metelli supplies new replacement engine components built to the listed specifications for timing belt and water pump service. Confirm fitment by year, make, model, and engine application before installation.

This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2004VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
2003VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
2002VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
2001AudiTT1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper; To Chassis 8NY095000; Includes Damper; Water Pump, Timing Belt, Tensioner,Damper
2001VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
2000AudiTT1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper; To Chassis 8NY095000; Includes Damper; Water Pump, Timing Belt, Tensioner,Damper
2000AudiTT Quattro1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper; To Chassis 8NY095000; Includes Damper; Water Pump, Timing Belt, Tensioner,Damper
2000VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
1999VolkswagenBeetle1.8LL4N/AWater Pump, Timing Belt, Tensioner, Damper included; To Engine 028500; Water Pump, Timing Belt, Tensioner,Damper
Directly replaces or cross-references 40 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Hepu — PK0547403L121011B06A 121 011C06A 121 011E06A 121 011F06A 121 011G06A 121 011H06A 121 011HV06A 121 011HX06A 121 011L06A 121 011LV06A 121 011LX06A 121 011T06A 121 01206A 121 012B06A 121 012E06A 121 012G06A 121 012GX06B 109 119 A06B 109 119 B06B 109 119 F06B 109 24306B 109 47706B 109 4794512245128557657115300345308647290023CT909WP4FP04380VKBU5113CKDP457.560KH166WP51KP15491XSKPA0646AKTBWP4870SK-1337AQ1VKMC01935WPK-937702
