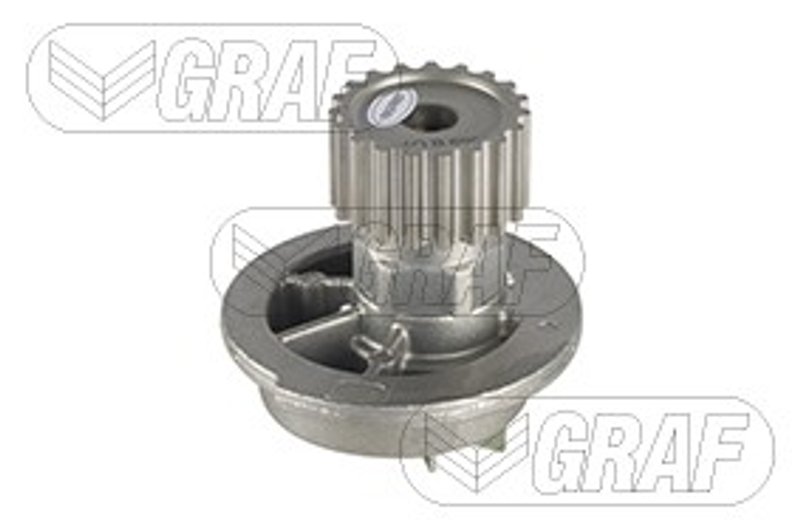

Metelli PA696 Engine Water Pump

Reliable Engine Water Pump for Chevrolet, Pontiac, and Suzuki

The Metelli PA696 engine water pump is designed to provide efficient cooling system performance for select Chevrolet, Pontiac, and Suzuki models. Engineered with durable materials and precise specifications, this water pump ensures consistent coolant circulation to maintain optimal engine temperature.

Key Features of the Metelli PA696 Water Pump

• Includes pulley with 19 teeth and 29.5 mm width for direct fitment
• Comes with gasket and o-ring to ensure a secure, leak-free installation
• Aluminium housing for lightweight durability and corrosion resistance
• Metal impeller with 7 vanes and 55 mm outside diameter for effective coolant flow
• Roller/ball bearing with 30 mm outside diameter for smooth operation and longevity
• New, not remanufactured, ensuring original quality and performance

Detailed Description of the Metelli PA696 Engine Water Pump

This new Metelli PA696 engine water pump is specifically compatible with Chevrolet Aveo, Aveo5, Pontiac Wave, Wave5, and Suzuki Swift+ models. The aluminium housing offers a balance of strength and weight savings, while the metal impeller with seven vanes optimizes coolant circulation through the engine’s cooling system. The included pulley features 19 teeth and a width of 29.5 mm, matching OEM specifications for seamless integration. The roller/ball bearing with a 30 mm outside diameter supports reliable rotation under various operating conditions. Additionally, the package includes a gasket and o-ring to help prevent leaks and ensure a proper seal during installation.

Common Applications and Issues Addressed

• Replacement for failing or leaking water pumps in Chevrolet Aveo and Pontiac Wave models
• Resolves overheating issues caused by inefficient coolant circulation
• Addresses bearing wear that leads to noise or pump failure
• Prevents coolant leaks due to worn seals or gaskets
• Restores proper engine temperature regulation in Suzuki Swift+ vehicles

Installation Notes and Tips

• Ensure compatibility with Chevrolet Aveo, Aveo5, Pontiac Wave, Wave5, or Suzuki Swift+ before installation
• Use the included gasket and o-ring to maintain a secure, leak-free seal
• Inspect the pulley alignment and belt tension during installation to avoid premature wear
• Follow manufacturer torque specifications for mounting bolts
• Flush the cooling system if necessary to remove debris before installing the new pump

Quality Assurance and Warranty Information

The Metelli PA696 engine water pump is a new, high-quality replacement part manufactured to meet or exceed OEM standards. Constructed with durable aluminium housing and metal impeller components, it is designed for long service life. The included roller/ball bearing supports smooth operation under normal driving conditions. While specific warranty details may vary, Metelli products typically come with a limited warranty against defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
