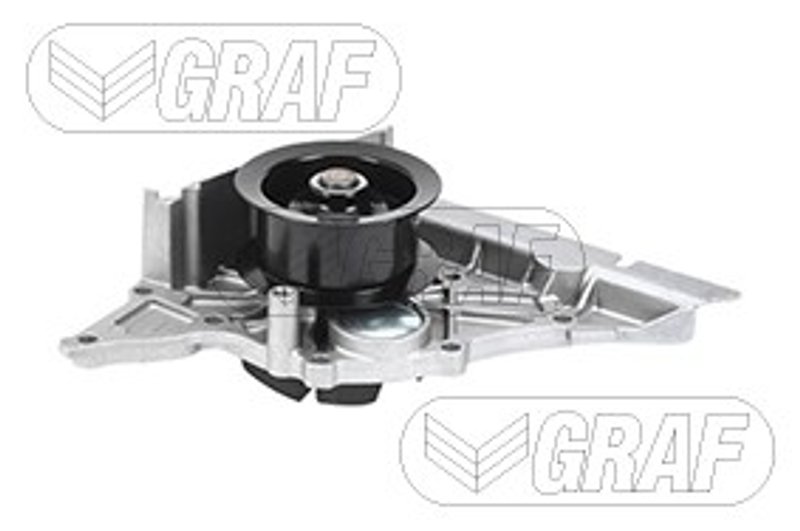

Metelli PA764 Engine Water Pump

Brand Metelli PA764
Bearing Outside Diameter 30
Bearing Type Roller/Ball
Gasket Or Seal Included YES
Housing Material Aluminium
Impeller Material Cast Iron
Impeller Outside Diameter 79.5
Impeller Vane Quantity 5
New Or Remanufactured NEW
Package Contents Water Pump, Gasket
Fits Volkswagen and Audi · 26 vehicles

New water pump. Fresh replacement part with gasket included for easier service.

Aluminium housing. Lightweight construction helps resist corrosion.

Cast iron impeller. Built with a durable impeller and roller/ball bearing design.

Cross-references Airtex AW9410, Anchor 9410 and Beck/Arnley 131-2261 for the same application. See all 51.

$56.82Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $56.82
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Engine Water Pump for Audi and Volkswagen

The Metelli PA764 engine water pump is a new replacement part built for select Audi and Volkswagen applications. It features an aluminium housing, a cast iron impeller, and a roller/ball bearing design for dependable coolant circulation in the engine cooling system.

Fits 2000-2006 Audi A8 Quattro, N/A. Fits 2000-2004 Audi A6 Quattro, N/A. Fits 2001-2003 Audi S8, N/A. Fits 2002-2003 Audi S6, N/A. Fits 2003-2004 Audi RS6, N/A. Fits 2004-2006 Volkswagen Phaeton, N/A. Fits 2004-2007 Volkswagen Touareg, N/A.

Key Features

  • Metelli PA764 engine water pump for select Audi and Volkswagen vehicles
  • New construction with gasket included
  • Aluminium housing for corrosion-resistant support
  • Cast iron impeller with 5 vanes for coolant movement
  • Roller/ball bearing design for rotating assembly support
  • Impeller outside diameter: 79.5 mm
  • Bearing outside diameter: 30 mm

Detailed Description

Built as a direct replacement water pump for the cooling system, the Metelli PA764 is engineered for vehicles that require a durable pump assembly with a metal housing and cast iron impeller. The included gasket supports a proper seal during installation, while the 5-vane impeller design helps move coolant through the engine circuit. This part cross-references Airtex AW9410 and GMB 180-2250 for the same application.

Use this water pump when servicing cooling system wear on Audi A8 Quattro, Audi A6 Quattro, Audi S8, Audi S6, Audi RS6, Volkswagen Phaeton, and Volkswagen Touareg applications listed above. The PA764 part number is also a useful reference when matching replacement components by catalog number.

What It Helps Address

  • Coolant circulation problems caused by a worn pump
  • Leakage at the pump mounting surface
  • Noise from a failing bearing assembly
  • Reduced cooling performance from impeller wear
  • Overheating concerns tied to pump deterioration

Installation Notes and Tips

Confirm engine code and vehicle fitment before installation, since these model years can vary by cooling system configuration. Replace the gasket supplied with the pump during installation and inspect the mating surfaces for corrosion, residue, or damage. Flush the cooling system if contamination is present, and refill with the correct coolant specification after installation.

Quality Assurance

Metelli supplies new cooling components built to meet replacement-service requirements. The PA764 is manufactured with an aluminium housing, cast iron impeller, and integrated gasket for a complete water pump replacement on the listed Audi and Volkswagen applications.

This part fits 26 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2007VolkswagenTouareg4.2LV8N/A—
2006AudiA8 Quattro4.2LV8N/A—
2006VolkswagenPhaeton4.2LV8N/A—
2006VolkswagenTouareg4.2LV8N/A—
2005AudiA8 Quattro4.2LV8N/A—
2005VolkswagenPhaeton4.2LV8N/A—
2005VolkswagenTouareg4.2LV8N/A—
2004AudiA6 Quattro4.2LV8N/A—
2004AudiA8 Quattro4.2LV8N/A—
2004AudiRS64.2LV8N/A—
2004VolkswagenPhaeton4.2LV8N/A—
2004VolkswagenTouareg4.2LV8N/A—
2003AudiA6 Quattro4.2LV8N/A—
2003AudiA8 Quattro4.2LV8N/A—
2003AudiRS64.2LV8N/A—
2003AudiS64.2LV8N/A—
2003AudiS84.2LV8N/A—
2002AudiA6 Quattro4.2LV8N/A—
2002AudiA8 Quattro4.2LV8N/A—
2002AudiS64.2LV8N/A—
2002AudiS84.2LV8N/A—
2001AudiA6 Quattro4.2LV8N/A—
2001AudiA8 Quattro4.2LV8N/A—
2001AudiS84.2LV8N/A—
2000AudiA6 Quattro4.2LV8N/A—
2000AudiA8 Quattro4.2LV8N/A—
Directly replaces or cross-references 51 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Airtex — AW9410Anchor — 9410Beck/Arnley — 131-2261CSF — 10600Dayco — DP432Dorman - HELP — 20786Dorman - HELP — 42348Eastern Catalytic — 30610Four Seasons — 65703GMB — 180-2250Hepu — P579Remy — 21831Saleri — PA1051AUS Motor Works — US94102-93408MP37680167130 93 061051-2205077 121 004M077 121 004MX077 121 004N077 121 004P077 121 004PX252-85920794233028506794571628942348980183558341753804061086002902811301200401130120047350982081000352316170024AQ-1073BWP-9340Feb-40FP7800FWP1998PA10021PWP83417T2262VKPC81808WE-VW12WP-9340WP0121WP2413WP6057
