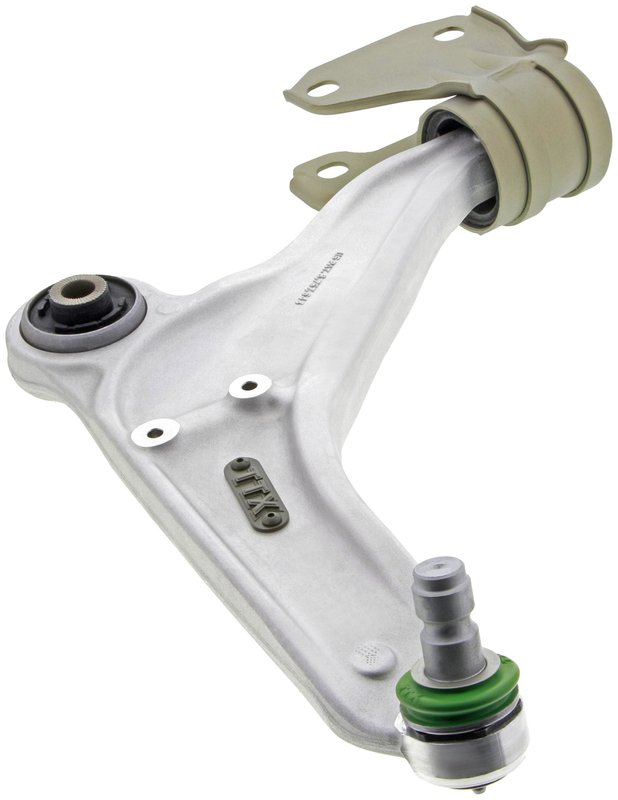

Mevotech CTXMS401247 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Front Left Lower Control Arm for Ford Edge

Mevotech TTX CTXMS401247 is a front left lower suspension control arm and ball joint assembly built for demanding service on the Ford Edge, Lincoln Nautilus, and Lincoln MKX. It combines an aluminum arm, pre-greased components, and a greaseable design to support consistent steering response and suspension movement.

Key Features

• Pre-greased with a grease fitting included for serviceability
• Ball joint included with threaded stud type
• Aluminum control arm construction with rubber bushings
• Dust boot included with neoprene boot material
• Mounting hardware and locking nut included
• Greaseable design for maintenance access
• Silver control arm finish with green boot color

Product Details

Mevotech TTX CTXMS401247 is engineered for high-usage passenger vehicles, SUVs, fleets, and working trucks, with a focus on durability and easier installation. The assembly includes the ball joint, bushings, dust boot, and mounting hardware in one service-ready unit. Bearing material is sintered metal, while the bushing material is rubber for controlled articulation and ride support. This part cross-references MOOG Chassis Products RK623491 for the same application.

Compatible With 2015-2024 Ford Edge, front left lower; 2019-2024 Lincoln Nautilus, front left lower; and 2016-2018 Lincoln MKX, front left lower. Use CTXMS401247 when replacing a worn front left lower control arm on these vehicles, including Ford Edge and Lincoln MKX service jobs where ball joint wear or bushing deterioration has affected suspension performance.

What It Helps Address

• Clunking or knocking from the front suspension
• Loose or inconsistent steering feel
• Uneven tire wear caused by worn control arm bushings or ball joint wear
• Excessive suspension play at the front left lower corner
• Service delays from replacing multiple separate components one at a time

Installation Notes

Confirm front left lower fitment before installation on the Ford Edge, Lincoln Nautilus, or Lincoln MKX. Inspect adjacent suspension components, fasteners, and alignment settings during replacement. Because this assembly includes a threaded ball joint stud and locking nut, follow the vehicle service procedure for torque specifications and final alignment after installation.

Quality Assurance

Mevotech TTX parts are built for demanding daily use and are engineered with installation efficiency in mind through Labor Saver designs, tools, and hardware. CTXMS401247 is a service-focused suspension assembly for consistent fitment and dependable front-end repair on the listed applications.
