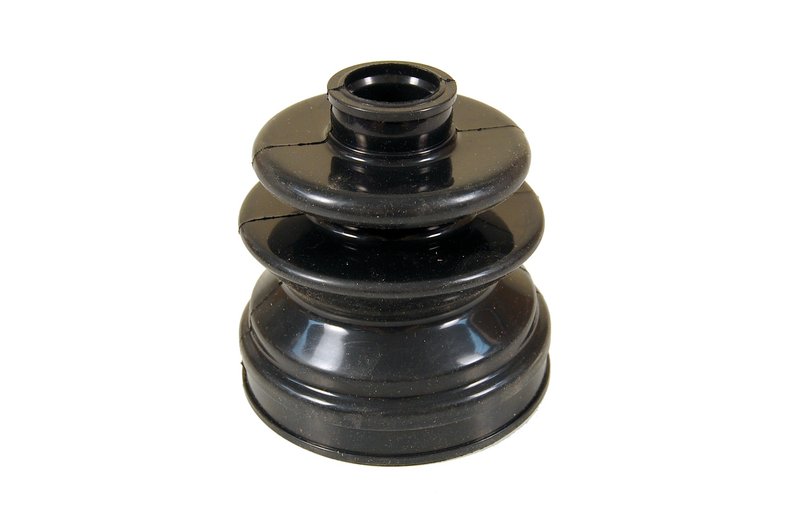

Mevotech DX211 CV Joint Boot
| Brand | Mevotech DX211 |
|---|---|
| Position | Front Inner, Rear Inner, Rear Outer, and Front Right Inner |
| Material | Neoprene |
| Clamps Included | Yes |
| Type | Cylindrical |
| Grease Included | Yes |
| Clamp Adjustable | Yes |
| Clamp Minimum Diameter Large End | 2.79 |
| Front or Rear | Rear |
| Number of Clamps | 2 |
| Fits | Geo, Isuzu, Subaru, and Suzuki · 22 vehicles |
Neoprene boot. Flexible material helps protect the CV joint from dirt and moisture.
Rear application. Built for the rear driveline position.
Grease included. Supplies the lubricant needed for service.
Cross-references Beck/Arnley 103-2549 and 86-2192 for the same application. See all 2.
CV Joint Boot for Rear and Front Inner Applications
Mevotech DX211 is a neoprene CV joint boot kit built for specific Subaru, Suzuki, Geo, and Isuzu driveline applications. It includes clamps and grease, giving you the core service parts needed to restore a damaged boot and protect the CV joint from contamination.
- Neoprene construction for flexible boot service
- Cylindrical boot design
- Includes 2 clamps
- Clamp adjustable for a secure fit
- Grease included
- Rear and front inner position coverage
Fitment and Application Details
Compatible With select rear inner and front inner CV axle positions across 1990-2009 model years. Fits 2001-2009 Subaru Impreza, rear inner; Fits 2003-2004 Subaru Forester, rear inner; Fits 2005 Subaru Forester, rear inner, to 1/13/2005; Fits 1995-1997 Suzuki Esteem, front inner; Fits 1990-1993 Geo Storm, front right inner; Fits 1991-1993 Isuzu Stylus, front right inner. Mevotech DX211 is also cross-referenced to Beck/Arnley 103-2549 for the same application.
What This Boot Helps Address
- Split or torn CV boot material
- Grease leakage from the CV joint area
- Road grit and moisture entering the joint
- Noise or vibration caused by boot failure and joint contamination
- Service replacement for rear inner Subaru Impreza and Forester applications
Installation Notes and Tips
Inspect the CV joint before installation and clean the axle area thoroughly. Use the included grease and clamps during assembly, and confirm the adjustable clamp is tightened evenly around the boot. Verify position-specific fitment before service, especially on 2005 Subaru Forester rear inner applications with the 1/13/2005 note.
Quality Assurance
Mevotech DX211 is built as a service replacement CV joint boot for the listed driveline applications. Confirm part number DX211 and vehicle position before installation to ensure the correct rear inner or front inner application is selected.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Subaru | Impreza | — | — | — | — | Rear Inner | — |
| 2008 | Subaru | Impreza | — | — | — | — | Rear Inner | — |
| 2007 | Subaru | Impreza | — | — | — | — | Rear Inner | — |
| 2006 | Subaru | Impreza | — | — | — | — | Rear Inner | — |
| 2005 | Subaru | Forester | — | — | — | — | Rear Inner | To 1/13/2005 |
| 2005 | Subaru | Impreza | AWD | — | 2.5L | H4 | Rear Inner | — |
| 2004 | Subaru | Forester | — | — | — | — | Rear Inner | — |
| 2004 | Subaru | Impreza | AWD | — | 2.5L | H4 | Rear Inner | — |
| 2003 | Subaru | Forester | — | — | — | — | Rear Inner | — |
| 2003 | Subaru | Impreza | AWD | — | — | — | Rear Inner | — |
| 2002 | Subaru | Impreza | AWD | — | — | — | Rear Inner | — |
| 2001 | Subaru | Impreza | AWD | — | — | — | Rear Inner | — |
| 1997 | Suzuki | Esteem | — | Automatic | — | — | Front Inner | — |
| 1996 | Suzuki | Esteem | — | Automatic | — | — | Front Inner | — |
| 1995 | Suzuki | Esteem | — | Automatic | — | — | Front Inner | — |
| 1993 | Geo | Storm | — | — | — | — | Front Right Inner | — |
| 1993 | Isuzu | Stylus | — | — | — | — | Front Right Inner | — |
| 1992 | Geo | Storm | — | — | — | — | Front Right Inner | — |
| 1992 | Isuzu | Stylus | — | — | — | — | Front Right Inner | — |
| 1991 | Geo | Storm | — | — | — | — | Front Right Inner | — |
| 1991 | Isuzu | Stylus | — | — | — | — | Front Right Inner | — |
| 1990 | Geo | Storm | — | — | — | — | Front Right Inner | — |
