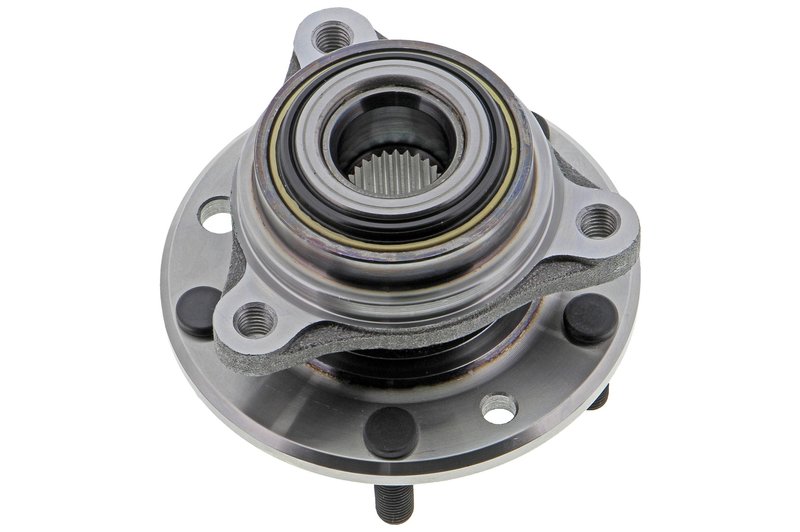

Mevotech G513013 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | Mevotech G513013 |
|---|---|
| Position | Front and Rear |
| Inside Diameter | 70.08 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Quantity | 5 |
| Bearing Generation | Gen 3 |
| Pre-Greased | Yes |
| Outside Diameter | 144.5 |
| Anti Lock Brake Sensor Included | No |
| Fits | Buick, Cadillac, Chevrolet, GMC, and Oldsmobile · 72 vehicles |
Exact-match replacement. Built to match original fit, form, and function for straightforward service.
Pre-greased design. Ready for installation with bearing lubrication already applied.
Gen 3 bearing. Modern hub construction for routine driving and commuter use.
Cross-references Centric Parts 400.62004E, Centric Parts 400.62010 and Centric Parts 400.62010E for the same application. See all 38.
Wheel Bearing and Hub Assembly
Mevotech Original Grade hub bearing assembly G513013 is built as an exact-match replacement for the original part’s fit, form, and function. It is made for regular commuting and routine driving, with pre-greased construction and Gen 3 bearing design for dependable service.
- Exact-match replacement for OE fit, form, and function.
- Pre-greased design for ready-to-install service.
- Gen 3 bearing generation for modern hub assembly construction.
- Five wheel studs and a three-bolt flange pattern.
- Compatible with vehicles that use a 70.08 mm inside diameter and 144.5 mm outside diameter hub specification.
Detailed Product Overview
Mevotech G513013 is a wheel bearing and hub assembly for select Chevrolet, GMC, Buick, Cadillac, and Oldsmobile applications. It is engineered to restore OE-level performance, handling, and ride quality in the same locations where the original hub assembly was used. This part number, G513013, is listed for Fits 1984-1996 Chevrolet Corvette, rear and Fits 1983-1990 Chevrolet S10, front, along with additional front applications for the S10 Blazer, S15, S15 Jimmy, Riviera, Eldorado, Seville, and Toronado.
This part cross-references MOOG Hub Assemblies (e.g., 513013) and Timken (e.g., 513020) for the same application.
Common Repair Uses
- Wheel bearing noise or rough rotation.
- Hub looseness that affects steering feel.
- Uneven wheel support from a worn assembly.
- ABS sensor omission replacement where the original setup does not use an included sensor.
Installation Notes
Verify the vehicle’s position, flange bolt pattern, stud count, and hub dimensions before installation. Confirm that the application does not require an included anti-lock brake sensor, since this assembly is listed without one. Use the vehicle service procedure for torque and bearing installation steps.
Quality Assurance
Mevotech Original Grade parts are positioned as exact-match replacements for original manufacturer fit, form, and function. G513013 is intended to restore OE performance characteristics in a hub assembly built for routine driving.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1996 | Chevrolet | Corvette | — | Rear | — |
| 1995 | Chevrolet | Corvette | — | Rear | — |
| 1994 | Chevrolet | Corvette | — | Rear | — |
| 1993 | Chevrolet | Corvette | — | Rear | — |
| 1992 | Chevrolet | Corvette | — | Rear | — |
| 1991 | Chevrolet | Corvette | — | Rear | — |
| 1990 | Chevrolet | Corvette | — | Rear | — |
| 1990 | Chevrolet | S10 | 4WD | Front | — |
| 1990 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1990 | GMC | S15 | 4WD | Front | — |
| 1990 | GMC | S15 Jimmy | 4WD | Front | — |
| 1989 | Chevrolet | Corvette | — | Rear | — |
| 1989 | Chevrolet | S10 | 4WD | Front | — |
| 1989 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1989 | GMC | S15 | 4WD | Front | — |
| 1989 | GMC | S15 Jimmy | 4WD | Front | — |
| 1988 | Chevrolet | Corvette | — | Rear | — |
| 1988 | Chevrolet | S10 | 4WD | Front | — |
| 1988 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1988 | GMC | S15 | 4WD | Front | — |
| 1988 | GMC | S15 Jimmy | 4WD | Front | — |
| 1987 | Chevrolet | Corvette | — | Rear | — |
| 1987 | Chevrolet | S10 | 4WD | Front | — |
| 1987 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1987 | GMC | S15 | 4WD | Front | — |
| 1987 | GMC | S15 Jimmy | 4WD | Front | — |
| 1986 | Chevrolet | Corvette | — | Rear | — |
| 1986 | Chevrolet | S10 | 4WD | Front | — |
| 1986 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1986 | GMC | S15 | 4WD | Front | — |
| 1986 | GMC | S15 Jimmy | 4WD | Front | — |
| 1985 | Buick | Riviera | — | Front | — |
| 1985 | Cadillac | Eldorado | — | Front | — |
| 1985 | Cadillac | Seville | — | Front | — |
| 1985 | Chevrolet | Corvette | — | Rear | — |
| 1985 | Chevrolet | S10 | 4WD | Front | — |
| 1985 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1985 | GMC | S15 | 4WD | Front | — |
| 1985 | GMC | S15 Jimmy | 4WD | Front | — |
| 1985 | Oldsmobile | Toronado | — | Front | — |
| 1984 | Buick | Riviera | — | Front | — |
| 1984 | Cadillac | Eldorado | — | Front | — |
| 1984 | Cadillac | Seville | — | Front | — |
| 1984 | Chevrolet | Corvette | — | Rear | — |
| 1984 | Chevrolet | S10 | 4WD | Front | — |
| 1984 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1984 | GMC | S15 | 4WD | Front | — |
| 1984 | GMC | S15 Jimmy | 4WD | Front | — |
| 1984 | Oldsmobile | Toronado | — | Front | — |
| 1983 | Buick | Riviera | — | Front | — |
| 1983 | Cadillac | Eldorado | — | Front | — |
| 1983 | Cadillac | Seville | — | Front | — |
| 1983 | Chevrolet | S10 | 4WD | Front | — |
| 1983 | Chevrolet | S10 Blazer | 4WD | Front | — |
| 1983 | GMC | S15 | 4WD | Front | — |
| 1983 | GMC | S15 Jimmy | 4WD | Front | — |
| 1983 | Oldsmobile | Toronado | — | Front | — |
| 1982 | Buick | Riviera | — | Front | — |
| 1982 | Cadillac | Eldorado | — | Front | — |
| 1982 | Cadillac | Seville | — | Front | — |
| 1982 | Oldsmobile | Toronado | — | Front | — |
| 1981 | Buick | Riviera | — | Front | — |
| 1981 | Cadillac | Eldorado | — | Front | — |
| 1981 | Cadillac | Seville | — | Front | — |
| 1981 | Oldsmobile | Toronado | — | Front | — |
| 1980 | Buick | Riviera | — | Front | — |
| 1980 | Cadillac | Eldorado | — | Front | — |
| 1980 | Cadillac | Seville | — | Front | — |
| 1980 | Oldsmobile | Toronado | — | Front | — |
| 1979 | Buick | Riviera | — | Front | — |
| 1979 | Cadillac | Eldorado | — | Front | — |
| 1979 | Oldsmobile | Toronado | — | Front | — |
