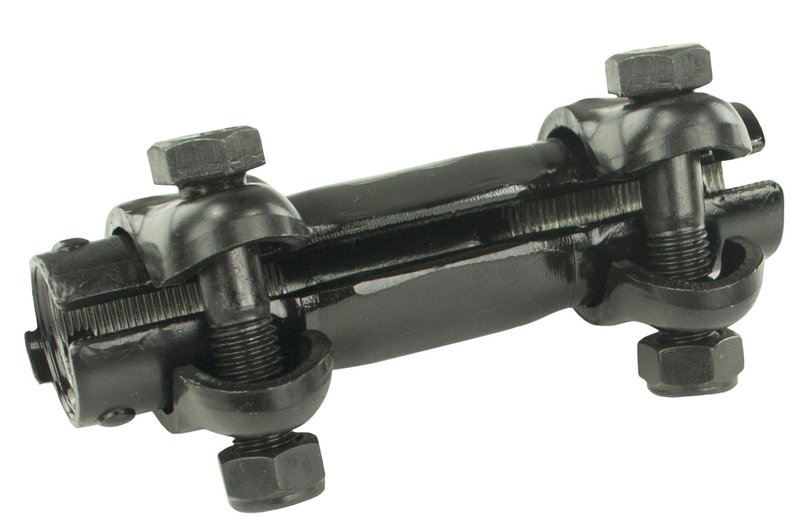

Mevotech GES2012S Steering Tie Rod End Adjusting Sleeve

Steering Tie Rod End Adjusting Sleeve for OE-Style Alignment

The Mevotech GES2012S steering tie rod end adjusting sleeve is a steel, adjustable steering hardware component built for vehicles that use a 1"-18 UNF thread. It features a black painted finish, medium thread type, and a two-female-end configuration for steering linkage adjustment during front-end service.

Compatible With Ford E-350 Super Duty, Jeep Wrangler, Dodge Ram 2500, and many other truck and van applications that use a 5.47-inch sleeve length and counterclockwise thread direction. The Mevotech GES2012S is built for direct steering linkage use where precise toe adjustment is required.

Key Features

• Steel construction for steering linkage durability
• Adjustable design for alignment and toe setting
• Two female ends with 1"-18 UNF thread size
• Counterclockwise thread direction
• Black painted finish
• Mounting hardware and clamps included
• Standard grade type with bracket mounting method

Detailed Product Overview

This steering tie rod end adjusting sleeve is used in front steering systems where the tie rod assembly must be lengthened or shortened to set alignment. The 5.47-inch length and 1.25-inch diameter match common heavy-duty steering linkage designs found on Ford E-150, Ford E-250, Ford E-350 Super Duty, Jeep Wrangler, and Dodge Ram 3500 applications. Mevotech GES2012S also cross-references MOOG Chassis Products ES362S and ES2012S for the same application.

Use this sleeve when servicing steering linkage on vehicles such as Ford E-350 Super Duty, Jeep Wrangler JK, and Dodge Ram 2500 where the correct thread direction and sleeve length are required for proper adjustment. The Mevotech GES2012S part number is also listed across multiple interchange references for broad application coverage.

Common Problems This Part Helps Address

• Loose or worn steering linkage adjustment points
• Difficulty setting front-end toe alignment
• Corrosion or damage to the existing adjusting sleeve
• Steering play caused by compromised tie rod hardware
• Incorrect sleeve thread direction or thread size during replacement

Installation Notes and Tips

Verify thread direction, thread size, and sleeve length before installation. This sleeve uses a counterclockwise thread direction and 1"-18 UNF threads, so it must match the existing steering linkage design. Confirm vehicle position and steering linkage layout against the fitment data before final assembly and alignment.

After installation, a professional wheel alignment is recommended to set toe and steering wheel position correctly. The GES2012S should be installed on the specified front steering location for the listed Ford, Jeep, Dodge, Chevrolet, GMC, and Mazda applications.

Quality Assurance

Mevotech steering hardware is built for service replacement use in steering systems that require accurate adjustment and consistent fitment. The GES2012S is a steel, standard-grade adjusting sleeve designed around common OE-style dimensions and thread specifications.

Compatible vehicle coverage includes 1966-2021 Ford, Jeep, Dodge, Chevrolet, GMC, and Mazda applications, with fitment listed for front, front right, front left, and pitman arm to connecting rod positions depending on the vehicle.
