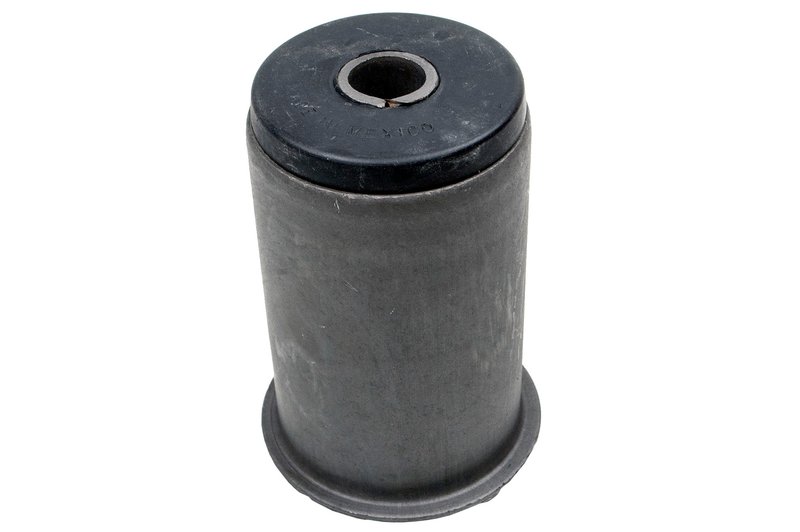

Mevotech GS254152 Leaf Spring Bushing - Rear Fixed End or Rear Upper
| Brand | Mevotech GS254152 |
|---|---|
| Position | Rear Fixed End and Rear Upper |
| Material | Natural rubber |
| Wall Thickness | 0.76 |
| Length | 3.722 |
| Color | Grey |
| Inside Diameter | 0.51 |
| Outside Diameter | 2.02 |
| Height | 2.34 |
| Bushing Quantity | 1 |
| Fits | Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac · 131 vehicles |
Natural rubber construction. Provides compliant suspension isolation for leaf spring service.
Application-specific sizing. Published dimensions help match the original bushing profile.
OE-style replacement. Cataloged for classic GM suspension service and interchange searches.
Cross-references Cloyes B298, Delphi TD5007W and Four Seasons 35216 for the same application. See all 21.
Overview
Mevotech GS254152 is a leaf spring bushing built for suspension service on classic GM applications. It uses natural rubber construction and the listed dimensions to support a precise replacement for rear leaf spring mounting points.
Compatible With Chevrolet Camaro, Pontiac Firebird, Buick Skylark, Oldsmobile Toronado, and other listed applications, this bushing is specified for rear fixed end and rear upper positions where the original part has worn, cracked, or lost shape. The GS254152 part number is also referenced in interchange listings for related replacement searches.
Key Features
- Natural rubber construction for suspension isolation and compliance.
- Grey finish with measured dimensions for application matching.
- Designed as a leaf spring bushing for rear suspension service.
- Fits rear fixed end and rear upper positions across listed vehicles.
- Mevotech GS254152 cross-references with common aftermarket replacement numbers.
Detailed Description
Mevotech GS254152 is a suspension bushing for leaf spring applications on a wide range of Chevrolet, Pontiac, Buick, Cadillac, and Oldsmobile vehicles. The natural rubber material helps restore the interface between the spring and mounting point, while the published inside diameter, outside diameter, length, height, and wall thickness support accurate part selection for the intended application. This part number, GS254152, is used across multiple classic platform searches, including Chevrolet Camaro and Pontiac Firebird rear suspension repairs.
This part cross-references MOOG Chassis Products SB298 and Delphi TD5007W for the same application.
Common Uses
- Replacing a worn leaf spring bushing that causes looseness in the rear suspension.
- Addressing noise from deteriorated rubber at the spring mounting point.
- Restoring proper spring location after cracking, flattening, or deformation.
- Correcting fitment issues during rear suspension refurbishment on classic GM vehicles.
Installation Notes
Verify the vehicle position and mounting style before installation, since this bushing is listed for rear fixed end and rear upper applications. Compare the dimensions and material specification against the removed part to confirm match before assembly. Professional suspension service practices are recommended for removal and installation.
Quality Assurance
Mevotech supplies suspension components for replacement service across a broad range of chassis applications. GS254152 is cataloged with OE-style interchange references for direct replacement searches and application matching.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1981 | Chevrolet | Camaro | Rear Fixed End | — |
| 1981 | Pontiac | Firebird | Rear Fixed End | — |
| 1980 | Chevrolet | Camaro | Rear Fixed End | — |
| 1980 | Pontiac | Firebird | Rear Fixed End | — |
| 1979 | Buick | Skylark | Rear Fixed End | — |
| 1979 | Cadillac | Seville | Rear Fixed End | — |
| 1979 | Chevrolet | Camaro | Rear Fixed End | — |
| 1979 | Chevrolet | Nova | Rear Fixed End | — |
| 1979 | Oldsmobile | Omega | Rear Fixed End | — |
| 1979 | Pontiac | Firebird | Rear Fixed End | — |
| 1979 | Pontiac | Phoenix | Rear Fixed End | — |
| 1978 | Buick | Skylark | Rear Fixed End | — |
| 1978 | Cadillac | Seville | Rear Fixed End | — |
| 1978 | Chevrolet | Camaro | Rear Fixed End | — |
| 1978 | Chevrolet | Nova | Rear Fixed End | — |
| 1978 | Oldsmobile | Omega | Rear Fixed End | — |
| 1978 | Pontiac | Firebird | Rear Fixed End | — |
| 1978 | Pontiac | Phoenix | Rear Fixed End | — |
| 1977 | Buick | Skylark | Rear Fixed End | — |
| 1977 | Cadillac | Seville | Rear Fixed End | — |
| 1977 | Chevrolet | Camaro | Rear Fixed End | — |
| 1977 | Chevrolet | Nova | Rear Fixed End | — |
| 1977 | Oldsmobile | Omega | Rear Fixed End | — |
| 1977 | Pontiac | Astre | Rear Upper | — |
| 1977 | Pontiac | Firebird | Rear Fixed End | — |
| 1977 | Pontiac | Phoenix | Rear Fixed End | — |
| 1977 | Pontiac | Sunbird | Rear Upper | — |
| 1977 | Pontiac | Ventura | Rear Fixed End | — |
| 1976 | Buick | Estate Wagon | Rear Fixed End | — |
| 1976 | Buick | Skylark | Rear Fixed End | — |
| 1976 | Cadillac | Seville | Rear Fixed End | — |
| 1976 | Chevrolet | Camaro | Rear Fixed End | — |
| 1976 | Chevrolet | Caprice | Rear Fixed End | — |
| 1976 | Chevrolet | Impala | Rear Fixed End | — |
| 1976 | Chevrolet | Nova | Rear Fixed End | — |
| 1976 | Oldsmobile | 98 | Rear Upper | — |
| 1976 | Oldsmobile | Custom Cruiser | Rear Upper | — |
| 1976 | Oldsmobile | Delta 88 | Rear Upper | — |
| 1976 | Oldsmobile | Omega | Rear Fixed End | — |
| 1976 | Pontiac | Astre | Rear Upper | — |
| 1976 | Pontiac | Bonneville | Rear Fixed End | — |
| 1976 | Pontiac | Firebird | Rear Fixed End | — |
| 1976 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1976 | Pontiac | Parisienne | Rear Fixed End | — |
| 1976 | Pontiac | Sunbird | Rear Upper | — |
| 1976 | Pontiac | Ventura | Rear Fixed End | — |
| 1975 | Buick | Apollo | Rear Fixed End | — |
| 1975 | Buick | Estate Wagon | Rear Fixed End | — |
| 1975 | Buick | Skylark | Rear Fixed End | — |
| 1975 | Chevrolet | Bel Air | Rear Fixed End | — |
| 1975 | Chevrolet | Camaro | Rear Fixed End | — |
| 1975 | Chevrolet | Caprice | Rear Fixed End | — |
| 1975 | Chevrolet | Impala | Rear Fixed End | — |
| 1975 | Chevrolet | Nova | Rear Fixed End | — |
| 1975 | Oldsmobile | Omega | Rear Fixed End | — |
| 1975 | Pontiac | Bonneville | Rear Fixed End | — |
| 1975 | Pontiac | Catalina | Rear Fixed End | — |
| 1975 | Pontiac | Firebird | Rear Fixed End | — |
| 1975 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1975 | Pontiac | Ventura | Rear Fixed End | — |
| 1974 | Buick | Apollo | Rear Fixed End | — |
| 1974 | Buick | Estate Wagon | Rear Fixed End | — |
| 1974 | Chevrolet | Bel Air | Rear Fixed End | — |
| 1974 | Chevrolet | Camaro | Rear Fixed End | — |
| 1974 | Chevrolet | Caprice | Rear Fixed End | — |
| 1974 | Chevrolet | Impala | Rear Fixed End | — |
| 1974 | Chevrolet | Nova | Rear Fixed End | — |
| 1974 | Oldsmobile | Omega | Rear Fixed End | — |
| 1974 | Pontiac | Bonneville | Rear Fixed End | — |
| 1974 | Pontiac | Catalina | Rear Fixed End | — |
| 1974 | Pontiac | Firebird | Rear Fixed End | — |
| 1974 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1974 | Pontiac | Parisienne | Rear Fixed End | — |
| 1974 | Pontiac | Ventura | Rear Fixed End | — |
| 1973 | Buick | Apollo | Rear Fixed End | — |
| 1973 | Buick | Estate Wagon | Rear Fixed End | — |
| 1973 | Chevrolet | Bel Air | Rear Fixed End | — |
| 1973 | Chevrolet | Camaro | Rear Fixed End | — |
| 1973 | Chevrolet | Caprice | Rear Fixed End | — |
| 1973 | Chevrolet | Impala | Rear Fixed End | — |
| 1973 | Chevrolet | Nova | Rear Fixed End | — |
| 1973 | Oldsmobile | Omega | Rear Fixed End | — |
| 1973 | Pontiac | Bonneville | Rear Fixed End | — |
| 1973 | Pontiac | Catalina | Rear Fixed End | — |
| 1973 | Pontiac | Firebird | Rear Fixed End | — |
| 1973 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1973 | Pontiac | Parisienne | Rear Fixed End | — |
| 1973 | Pontiac | Ventura | Rear Fixed End | — |
| 1972 | Buick | Estate Wagon | Rear Fixed End | — |
| 1972 | Chevrolet | Bel Air | Rear Fixed End | — |
| 1972 | Chevrolet | Biscayne | Rear Fixed End | — |
| 1972 | Chevrolet | Brookwood | Rear Fixed End | — |
| 1972 | Chevrolet | Camaro | Rear Fixed End | — |
| 1972 | Chevrolet | Caprice | Rear Fixed End | — |
| 1972 | Chevrolet | Impala | Rear Fixed End | — |
| 1972 | Chevrolet | Kingswood | Rear Fixed End | — |
| 1972 | Chevrolet | Townsman | Rear Fixed End | — |
| 1972 | Pontiac | Bonneville | Rear Fixed End | — |
| 1972 | Pontiac | Catalina | Rear Fixed End | — |
| 1972 | Pontiac | Firebird | Rear Fixed End | — |
| 1972 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1972 | Pontiac | Parisienne | Rear Fixed End | — |
| 1972 | Pontiac | Ventura | Rear Fixed End | — |
| 1971 | Buick | Estate Wagon | Rear Fixed End | — |
| 1971 | Chevrolet | Bel Air | Rear Fixed End | — |
| 1971 | Chevrolet | Biscayne | Rear Fixed End | — |
| 1971 | Chevrolet | Brookwood | Rear Fixed End | — |
| 1971 | Chevrolet | Camaro | Rear Fixed End | — |
| 1971 | Chevrolet | Caprice | Rear Fixed End | — |
| 1971 | Chevrolet | Impala | Rear Fixed End | — |
| 1971 | Chevrolet | Kingswood | Rear Fixed End | — |
| 1971 | Chevrolet | Townsman | Rear Fixed End | — |
| 1971 | Pontiac | Bonneville | Rear Fixed End | — |
| 1971 | Pontiac | Catalina | Rear Fixed End | — |
| 1971 | Pontiac | Firebird | Rear Fixed End | — |
| 1971 | Pontiac | Grand Safari | Rear Fixed End | — |
| 1971 | Pontiac | Parisienne | Rear Fixed End | — |
| 1971 | Pontiac | Ventura | Rear Fixed End | — |
| 1970 | Chevrolet | Camaro | Rear Fixed End | — |
| 1970 | Oldsmobile | Toronado | Rear Upper | — |
| 1970 | Pontiac | Firebird | Rear Fixed End | — |
| 1969 | Chevrolet | Camaro | Rear Fixed End | — |
| 1969 | Oldsmobile | Toronado | Rear Upper | — |
| 1969 | Pontiac | Firebird | Rear Fixed End | — |
| 1968 | Chevrolet | Camaro | Rear Fixed End | — |
| 1968 | Oldsmobile | Toronado | Rear Fixed End | — |
| 1968 | Pontiac | Firebird | Rear Fixed End | — |
| 1967 | Chevrolet | Camaro | Rear Fixed End | — |
| 1967 | Oldsmobile | Toronado | Rear Fixed End | — |
| 1967 | Pontiac | Firebird | Rear Fixed End | — |
| 1966 | Oldsmobile | Toronado | Rear Fixed End | — |
