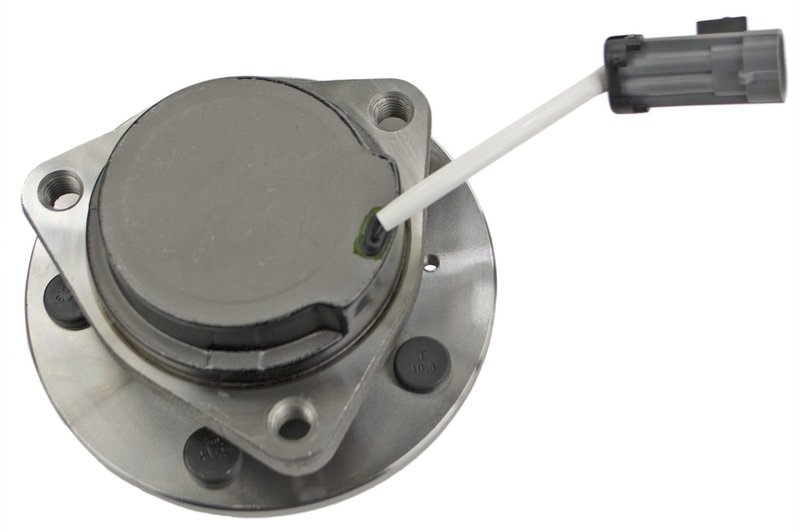

Mevotech H512246 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | Mevotech H512246 |
|---|---|
| Position | Front |
| ABS Sensor | Sensor Included |
| Design Type | Gen 3 |
| Flange Bolt Hole Quantity | 3 |
| Inside Diameter | 78 mm |
| Number of Bolt Holes | 5 |
| Outside Diameter | 145.5 mm |
| Pre Greased | Yes |
| Fits | Cadillac, Saturn, Buick, Chevrolet, and Pontiac · 21 vehicles |
Gen 3 design. Engineered for a modern wheel bearing and hub assembly.
Sensor included. Built with ABS sensing integrated into the assembly.
Pre-greased. Ready for smooth operation right out of the box.
Cross-references Centric Parts 407.62004, Centric Parts 407.62004E and DuraGo 295-13186 for the same application. See all 36.
Wheel Bearing Hub Assembly for Cadillac, Saturn, Buick, and Chevrolet
Mevotech H512246 is a front or rear wheel bearing and hub assembly built for specific Cadillac, Saturn, Buick, Chevrolet, and Pontiac applications. It features a Gen 3 design, a pre-greased bearing, and an ABS sensor included for direct replacement service.
Key Features
- Mevotech H512246 wheel bearing and hub assembly
- Gen 3 design for OE-style hub replacement
- ABS sensor included
- Pre-greased for service-ready installation
- Inside diameter: 78 mm
- Outside diameter: 145.5 mm
- 5-bolt wheel mounting pattern
- 3 flange bolt holes
Detailed Description
This Mevotech hub assembly is built for vehicles that require a precise wheel bearing and hub replacement with integrated ABS sensing. It fits 2003-2007 Cadillac CTS, front; 2005-2011 Cadillac STS, front with 5 stud hub and without Brembo brake system; 2005-2007 Saturn Relay, rear with 3 hole triangular flange; 2005 Buick Terraza, rear with 3 hole triangular flange; 2005 Chevrolet Uplander, rear with 3 hole triangular flange; and 2005 Pontiac Montana, rear with 3 hole triangular flange. The H512246 is a practical choice when servicing wheel-end noise, hub wear, or ABS-related faults on these applications.
This part cross-references Timken 513186 and MOOG 512246 for the same application.
What It Helps Fix
- Wheel bearing noise or growling from the hub area
- Excessive hub play or looseness at the wheel end
- ABS warning light concerns tied to the wheel speed sensor
- Uneven wheel rotation caused by hub wear
- Front or rear hub failure on listed Cadillac, Saturn, Buick, Chevrolet, and Pontiac models
Installation Notes and Tips
Verify axle position, brake package, and flange style before ordering. This part is listed for front use on Cadillac CTS and Cadillac STS, and rear use on Saturn Relay, Buick Terraza, Chevrolet Uplander, and Pontiac Montana with the specified triangular flange configuration. Confirm the 5-stud hub requirement on 2005-2011 Cadillac STS and the note excluding Brembo brake systems. Inspect the mounting surface, fasteners, and ABS connector condition during installation.
Quality Assurance
Mevotech manufactures this hub assembly with a Gen 3 design and pre-greased bearing construction for direct replacement service. The included ABS sensor supports proper wheel speed signal transfer on the listed applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Cadillac | STS | Platinum | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2011 | Cadillac | STS | Base | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2010 | Cadillac | STS | — | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2009 | Cadillac | STS | Platinum | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2009 | Cadillac | STS | Base | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2008 | Cadillac | STS | Platinum | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2008 | Cadillac | STS | Base | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2007 | Cadillac | CTS | Base | — | Front | — |
| 2007 | Cadillac | STS | Base | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2007 | Saturn | Relay | — | FWD | Rear | 3 Hole Triangular Flange |
| 2006 | Cadillac | CTS | Base | — | Front | — |
| 2006 | Cadillac | STS | Base | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2006 | Saturn | Relay | — | FWD | Rear | 3 Hole Triangular Flange |
| 2005 | Buick | Terraza | — | FWD | Rear | 3 Hole Triangular Flange |
| 2005 | Cadillac | CTS | Base | — | Front | — |
| 2005 | Cadillac | STS | — | RWD | Front | with 5 Stud Hub; without Brembo Brake System |
| 2005 | Chevrolet | Uplander | — | FWD | Rear | 3 Hole Triangular Flange |
| 2005 | Pontiac | Montana | — | FWD | Rear | 3 Hole Triangular Flange |
| 2005 | Saturn | Relay | — | FWD | Rear | 3 Hole Triangular Flange |
| 2004 | Cadillac | CTS | Base | — | Front | — |
| 2003 | Cadillac | CTS | Base | — | Front | — |
