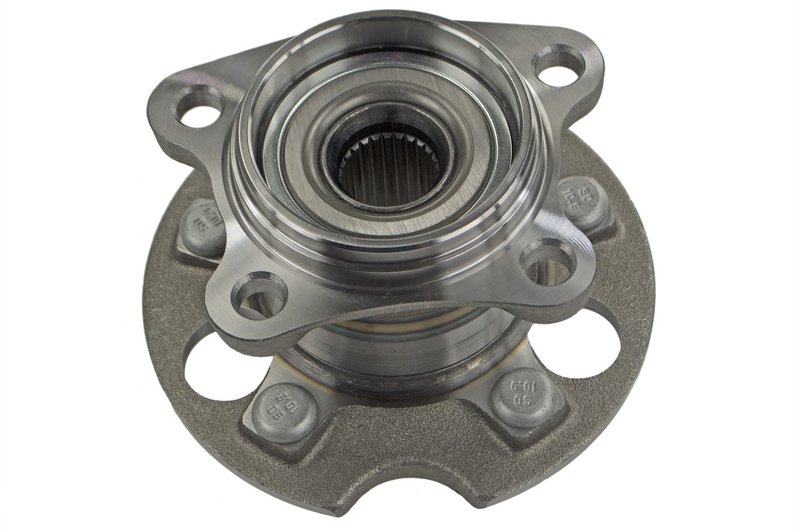

Mevotech H512284 Wheel Bearing and Hub Assembly - Rear
| Brand | Mevotech H512284 |
|---|---|
| Position | Rear |
| ABS Sensor | Non Integral |
| Design Type | Gen 3 |
| Flange Bolt Hole Quantity | 4 |
| Inside Diameter | 62 mm |
| Number of Bolt Holes | 5 |
| Outside Diameter | 152 mm |
| Pre Greased | Yes |
| Fits | Toyota and Lexus · 27 vehicles |
Gen 3 design. Engineered for smooth, reliable wheel bearing and hub performance.
Pre-greased. Ready for installation with reduced prep time.
Non-integral ABS sensor. Keeps the sensor separate from the hub assembly.
Cross-references Centric Parts 400.44006, Centric Parts 400.44006E and DuraGo 295-12284 for the same application. See all 24.
Rear Wheel Bearing Hub Assembly
Mevotech H512284 is a rear wheel bearing and hub assembly for select Toyota and Lexus applications. It is a pre-greased Gen 3 hub assembly with a 62 mm inside diameter, 152 mm outside diameter, 5 bolt holes, and a non-integral ABS sensor design.
Compatible with rear wheel service on 2004-2013 Toyota Highlander, 2009-2016 Toyota Venza, 2004-2006 Lexus RX330, 2006-2008 Lexus RX400h, and 2007-2009 Lexus RX350. The Mevotech H512284 is built for direct replacement use where the original rear hub assembly has worn or developed noise.
- Rear wheel bearing and hub assembly for select Toyota Highlander, Toyota Venza, and Lexus RX models
- Gen 3 design for OE-style hub replacement
- Pre-greased for ready-to-install service
- Non-integral ABS sensor configuration
- 5-bolt hub pattern with 4 flange bolt holes
- 62 mm inside diameter and 152 mm outside diameter
Detailed Product Overview
This hub assembly is engineered for rear axle service on the Toyota Highlander, Toyota Venza, Lexus RX330, Lexus RX400h, and Lexus RX350. Mevotech H512284 cross-references Timken HA590338 and SKF BR930338 for the same application. It is a direct-fit wheel bearing and hub assembly intended to restore proper wheel support and hub function when the original rear unit is worn, noisy, or loose.
Common Repair Applications
- Rear wheel bearing noise or growling
- Excessive wheel play from a worn hub assembly
- ABS warning concerns related to hub service on non-integral sensor setups
- Uneven rear wheel rotation caused by bearing wear
- Replacement of a damaged rear hub on Toyota Highlander, Toyota Venza, or Lexus RX models
Installation Notes
Verify rear fitment by year, make, model, and ABS configuration before installation. Confirm the 5-bolt hub pattern, 4 flange bolt holes, and the non-integral ABS sensor layout match the original part. Clean the mounting surface thoroughly and inspect related rear suspension and brake components during service.
Quality Assurance
Mevotech supplies this wheel bearing and hub assembly as a direct replacement part for confirmed rear applications. The pre-greased design supports installation readiness, and the Gen 3 construction follows the dimensional and configuration requirements listed for the vehicle coverage above.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Toyota | Venza | AWD | Rear | — |
| 2015 | Toyota | Venza | AWD | Rear | — |
| 2014 | Toyota | Venza | AWD | Rear | — |
| 2013 | Toyota | Highlander | AWD | Rear | — |
| 2013 | Toyota | Venza | AWD | Rear | — |
| 2012 | Toyota | Highlander | AWD | Rear | — |
| 2012 | Toyota | Venza | AWD | Rear | — |
| 2011 | Toyota | Highlander | AWD | Rear | — |
| 2011 | Toyota | Venza | AWD | Rear | — |
| 2010 | Toyota | Highlander | AWD | Rear | — |
| 2010 | Toyota | Venza | AWD | Rear | — |
| 2009 | Lexus | RX350 | AWD | Rear | — |
| 2009 | Toyota | Highlander | AWD | Rear | — |
| 2009 | Toyota | Venza | AWD | Rear | — |
| 2008 | Lexus | RX350 | AWD | Rear | — |
| 2008 | Lexus | RX400h | AWD | Rear | — |
| 2008 | Toyota | Highlander | AWD | Rear | — |
| 2007 | Lexus | RX350 | AWD | Rear | — |
| 2007 | Lexus | RX400h | AWD | Rear | — |
| 2007 | Toyota | Highlander | AWD | Rear | — |
| 2006 | Lexus | RX330 | AWD | Rear | — |
| 2006 | Lexus | RX400h | AWD | Rear | — |
| 2006 | Toyota | Highlander | AWD | Rear | — |
| 2005 | Lexus | RX330 | AWD | Rear | — |
| 2005 | Toyota | Highlander | AWD | Rear | — |
| 2004 | Lexus | RX330 | AWD | Rear | — |
| 2004 | Toyota | Highlander | AWD | Rear | — |
