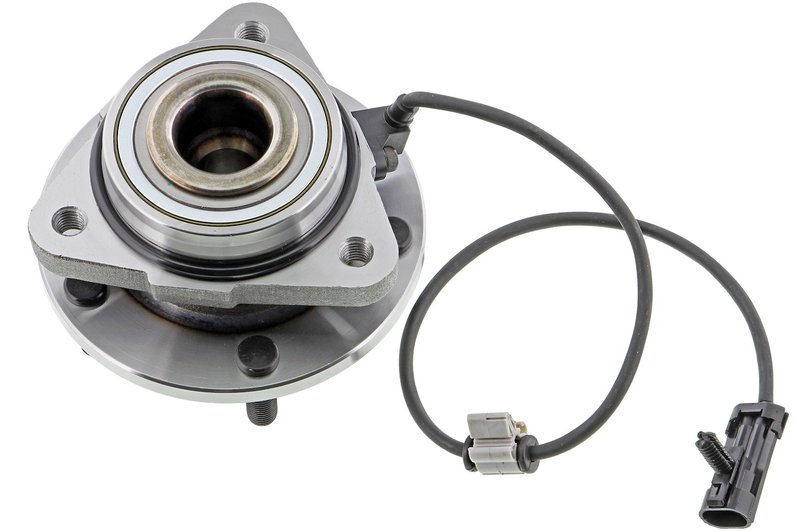

Mevotech H513200 Wheel Bearing and Hub Assembly - Front
| Brand | Mevotech H513200 |
|---|---|
| Position | Front |
| ABS Sensor | Sensor Included |
| Design Type | Gen 3 (Roll-Form Design) |
| Flange Bolt Hole Quantity | 3 |
| Inside Diameter | 70.5 mm |
| Number of Bolt Holes | 5 |
| Outside Diameter | 145.5 mm |
| Pre Greased | Yes |
| Fits | Chevrolet and GMC · 12 vehicles |
Gen 3 design. Roll-form construction helps deliver a precise wheel bearing and hub assembly.
Pre-greased. Ready for installation with less prep time.
ABS sensor included. Integrated sensor simplifies replacement of the hub assembly.
Cross-references Centric Parts 407.66002, Centric Parts 407.66002E and DuraGo 295-13200 for the same application. See all 21.
Front Wheel Bearing and Hub Assembly
Mevotech H513200 is a front wheel bearing and hub assembly for select Chevrolet Blazer and GMC Jimmy applications. It is built with a Gen 3 roll-form design, comes pre-greased, and includes the ABS sensor for a direct replacement on the front axle.
Fits 1998-2005 Chevrolet Blazer, front. Fits 1998-2001 GMC Jimmy, front. This part cross-references Timken SP450300 for the same application.
Key Features
- Wheel bearing and hub assembly for front driveline service
- Gen 3 roll-form design for a modern hub construction
- ABS sensor included for vehicles equipped with wheel speed sensing
- Pre-greased for ready-to-install service
- 5-bolt wheel mounting pattern
- 3 flange bolt holes
- Inside diameter: 70.5 mm
- Outside diameter: 145.5 mm
Detailed Description
Mevotech H513200 is a front wheel bearing and hub assembly engineered for Chevrolet Blazer and GMC Jimmy models listed in the fitment data. The assembly uses a Gen 3 roll-form design and is pre-greased to support straightforward hub replacement service. With the ABS sensor included, it addresses front wheel speed sensor-equipped applications without requiring a separate sensor component.
For 1998-2005 Chevrolet Blazer front wheel bearing replacement and 1998-2001 GMC Jimmy front hub assembly service, H513200 provides the core dimensions and mounting features needed for a direct-fit repair. The 5-bolt wheel pattern and 3 flange bolt holes should be verified against the removed part before installation. Mevotech H513200 also cross-references Timken SP450300 for the same application.
Common Repair Uses
- Front wheel bearing noise or roughness
- Wheel hub play or looseness
- ABS warning light related to a failed hub sensor
- Uneven wheel rotation caused by worn hub components
- Front-end vibration traced to hub wear
Installation Notes
Confirm the vehicle year, make, model, and front position before ordering. Compare the flange bolt hole count, bolt pattern, and dimensions to the original hub assembly to ensure proper fitment. Clean the mounting surface thoroughly and inspect the knuckle, axle interface, and ABS wiring before installing the replacement hub.
Quality Assurance
Mevotech supplies driveline and chassis components for service replacement applications. H513200 is built as a pre-greased hub assembly with an integrated ABS sensor and roll-form construction for the listed Chevrolet Blazer and GMC Jimmy front applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chevrolet | Blazer | RWD | Front | — |
| 2004 | Chevrolet | Blazer | RWD | Front | — |
| 2003 | Chevrolet | Blazer | RWD | Front | — |
| 2002 | Chevrolet | Blazer | RWD | Front | — |
| 2001 | Chevrolet | Blazer | RWD | Front | — |
| 2001 | GMC | Jimmy | RWD | Front | — |
| 2000 | Chevrolet | Blazer | RWD | Front | — |
| 2000 | GMC | Jimmy | RWD | Front | — |
| 1999 | Chevrolet | Blazer | RWD | Front | — |
| 1999 | GMC | Jimmy | RWD | Front | — |
| 1998 | Chevrolet | Blazer | RWD | Front | — |
| 1998 | GMC | Jimmy | RWD | Front | — |
