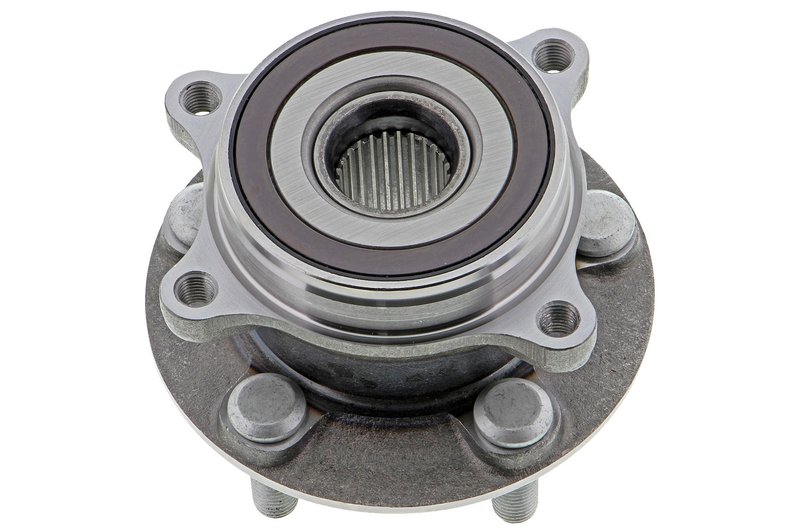

Mevotech H513287 Wheel Bearing and Hub Assembly - Front
| Brand | Mevotech H513287 |
|---|---|
| Position | Front |
| ABS Sensor | Non Integral |
| Design Type | Gen 3 |
| Flange Bolt Hole Quantity | 4 |
| Inside Diameter | 55 mm |
| Number of Bolt Holes | 5 |
| Outside Diameter | 125 mm |
| Pre Greased | Yes |
| Fits | Lexus and Toyota · 16 vehicles |
Gen 3 design. Engineered for smooth, reliable wheel bearing and hub performance.
Pre-greased. Ready for installation with less prep time.
Non-integral ABS sensor. Keeps the sensor separate from the hub assembly.
Cross-references Centric Parts 401.44002, Centric Parts 401.44002E and DuraGo 295-13287 for the same application. See all 16.
Front Wheel Bearing Hub Assembly for Toyota and Lexus
Mevotech H513287 is a front wheel bearing and hub assembly for select Toyota Prius, Prius Plug-In, and Lexus CT200h applications. It is built as a Gen 3 design, pre-greased, and configured with a non-integral ABS sensor for direct replacement service.
Key Features
- Front wheel bearing and hub assembly
- Gen 3 design for the specified applications
- Pre-greased for installation readiness
- Non-integral ABS sensor configuration
- Inside diameter: 55 mm
- Outside diameter: 125 mm
- 5 bolt holes with 4 flange bolt holes
Detailed Description
Mevotech H513287 is a replacement wheel bearing and hub assembly for front axle service on 2010-2015 Toyota Prius, 2013-2015 Toyota Prius Plug-In, and 2011-2017 Lexus CT200h models. This hub assembly is specified with a 55 mm inside diameter, 125 mm outside diameter, and a 5-bolt pattern, making it a direct-fit service part for the listed front applications. This part cross-references Timken HA590411 and SKF BR930660 for the same application.
What It Helps Address
- Front wheel bearing noise or growling
- Excessive wheel play or looseness at the hub
- ABS warning concerns related to the hub sensor setup
- Uneven wheel rotation caused by worn hub components
- Service replacement for worn front hub assemblies on Toyota Prius and Lexus CT200h models
Installation Notes and Tips
- Verify front axle fitment by year, make, and model before installation.
- Confirm the ABS sensor configuration matches the vehicle’s original setup.
- Inspect the knuckle, axle, and mounting surfaces for wear or damage during service.
- Follow factory torque specifications for hub and wheel fasteners.
- Check for proper wheel rotation and ABS operation after installation.
Quality Assurance
Mevotech manufactures replacement driveline and chassis components for service applications that require accurate fitment and OE-style replacement characteristics. H513287 is built for the listed Toyota Prius, Prius Plug-In, and Lexus CT200h front applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Lexus | CT200h | Front | — |
| 2016 | Lexus | CT200h | Front | — |
| 2015 | Lexus | CT200h | Front | — |
| 2015 | Toyota | Prius | Front | — |
| 2015 | Toyota | Prius Plug-In | Front | — |
| 2014 | Lexus | CT200h | Front | — |
| 2014 | Toyota | Prius | Front | — |
| 2014 | Toyota | Prius Plug-In | Front | — |
| 2013 | Lexus | CT200h | Front | — |
| 2013 | Toyota | Prius | Front | — |
| 2013 | Toyota | Prius Plug-In | Front | — |
| 2012 | Lexus | CT200h | Front | — |
| 2012 | Toyota | Prius | Front | — |
| 2011 | Lexus | CT200h | Front | — |
| 2011 | Toyota | Prius | Front | — |
| 2010 | Toyota | Prius | Front | — |
