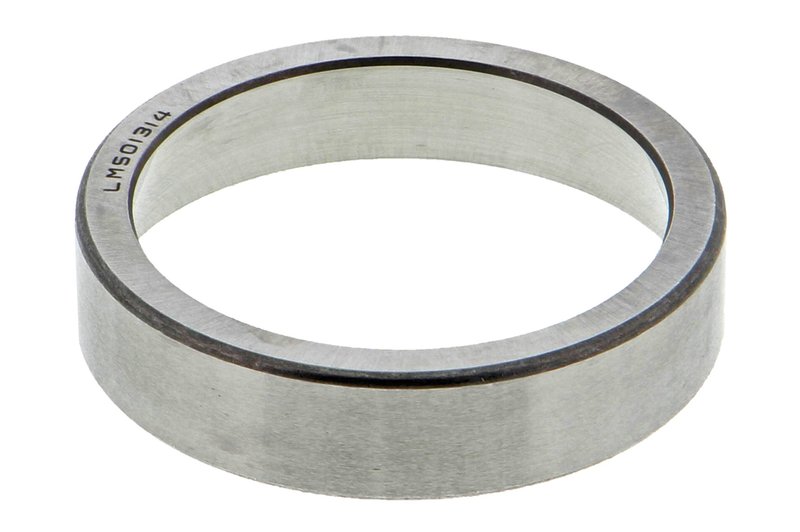

Mevotech HLM501314 Wheel Bearing Race - Rear

Wheel Bearing Race for Volvo Rear Applications

Mevotech HLM501314 is a rear wheel bearing race for select Volvo applications. It is built with a Gen 1 design, a 73.45 outside diameter, and a 60.15 x 68.5 mm inside diameter to match the specified bearing setup.

Use this wheel bearing race when servicing rear hub and bearing components on Volvo S70, V70, S90, V90, 960, 940, and 780 models. Mevotech HLM501314 is a non-integral ABS sensor design and is not pre-greased.

Key Features

• Part number: HLM501314
• Wheel bearing race for rear driveline and axle service
• Gen 1 design
• Outside diameter: 73.45
• Inside diameter: 60.15 x 68.5 mm
• Width: 2.89
• ABS sensor: Non Integral
• Pre-greased: No

Detailed Description

Mevotech HLM501314 is a wheel bearing race used in rear wheel bearing assemblies for select Volvo vehicles. The listed dimensions help match the race to the bearing and hub interface, while the non-integral ABS sensor specification confirms it is not built with an integrated sensor. This part cross-references National LM501314 for the same application.

Compatible With Volvo rear bearing service on 1999-2000 Volvo S70, 1998-2000 Volvo V70 except Nivomat suspension, 1997-1998 Volvo S90, 1997-1998 Volvo V90, 1992-1997 Volvo 960, 1995 Volvo 940, and 1987 Volvo 780. If you are replacing a worn rear wheel bearing race on a Volvo S70 or Volvo V70, verify the dimensions and suspension notes before installation.

What It Helps Address

• Rear wheel bearing noise
• Rough or uneven wheel rotation
• Excessive bearing play
• Wear at the bearing race surface
• Service replacement for damaged rear bearing components

Installation Notes and Tips

Confirm the bearing dimensions, inside diameter, outside diameter, and width before pressing the race into place. Clean the hub and bearing surfaces thoroughly, and inspect the mating components for scoring or heat damage. Because this part is not pre-greased, apply the correct bearing grease during assembly where required by the service procedure.

For Volvo rear wheel bearing repair, match the application carefully on 1999-2000 Volvo S70, 1998-2000 Volvo V70, and other listed rear fitments. Mevotech HLM501314 should be installed according to the vehicle service manual and bearing service specifications.

Quality Assurance

Mevotech supplies driveline and chassis service parts with application-specific dimensions and fitment data for accurate replacement selection. HLM501314 is listed with direct interchange references, including National LM501314, to support parts matching for the correct Volvo rear wheel bearing race application.

• Fits 1999-2000 Volvo S70, Rear
• Fits 1998-2000 Volvo V70, Rear, Except Nivomat Suspension
• Fits 1997-1998 Volvo S90, Rear
• Fits 1997-1998 Volvo V90, Rear
• Fits 1992-1997 Volvo 960, Rear
• Fits 1995 Volvo 940, Rear
• Fits 1987 Volvo 780, Rear
