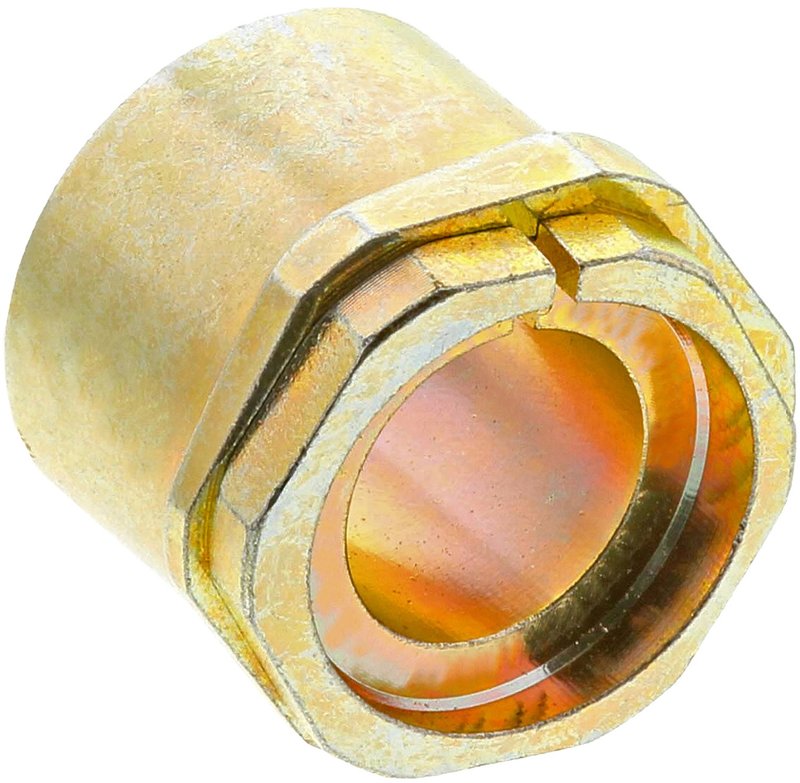

Mevotech MK80109 Alignment Caster / Camber Bushing - Front

Alignment Caster/Camber Bushing for Ford and Mazda

The Mevotech MK80109 alignment caster/camber bushing is an adjustable front suspension component used to fine-tune camber and caster during wheel alignment. With a hex head adjustment design and a stated adjustment range of plus or minus 0.00 to plus or minus 4.0 degrees, it supports precise alignment correction on a wide range of Ford truck, van, and SUV applications.

• Adjustable caster/camber bushing for front suspension alignment
• Hex head adjustment design for alignment correction
• Adjustment range: plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster
• Inside diameter: 0.84
• Outside diameter: 1.41
• Height: 1.26
• Length: 1.61
• Thickness: 0.57
• Gold finish

Detailed Product Overview

Mevotech MK80109 is an alignment caster/camber bushing built for front-end suspension correction where factory geometry needs adjustment. It is used on applications such as Ford F-250 Super Duty, Ford F-350 Super Duty, Ford E-350 Super Duty, and Ford Ranger, along with select Mazda B-Series trucks and Ford/Mazda SUV and van platforms. This part cross-references MOOG Chassis Products K80109 and Dorman - Premium AK851216PR for the same application. The MK80109 part number is also referenced in interchange listings with AA3950, AK851216, AK851245, AK851245PR, and TK80109.

Vehicle Fitment

• Fits 1999-2017 Ford E-350 Super Duty, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1999-2017 Ford F-250 Super Duty, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1999-2017 Ford F-350 Super Duty, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2003-2014 Ford E-150, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2003-2014 Ford E-250, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2003-2005 Ford E-150 Club Wagon, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2003-2005 Ford E-350 Club Wagon, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2000-2005 Ford Excursion, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1992-2002 Ford E-150 Econoline, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1992-2002 Ford E-150 Econoline Club Wagon, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1992-2002 Ford E-250 Econoline, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 2001-2002 Ford E-350 Econoline Club Wagon, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1992-1998 Ford E-350 Econoline Club Wagon, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1992-1998 Ford E-350 Econoline, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1987-1998 Ford F-250, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1997 Ford F-250 HD, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1987-1997 Ford F-350, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1989-1997 Ford Ranger, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1994-1997 Mazda B2300, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1994-1997 Mazda B3000, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1994-1997 Mazda B4000, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1987-1996 Ford F-150, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1991-1994 Ford Explorer, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1991-1994 Mazda Navajo, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1989-1990 Ford Bronco II, front. Hex head adjustment for alignment caster/camber bushing: range of plus or minus 0.00 to plus or minus 4.0 degrees for camber and/or caster.
• Fits 1990 Ford Bronco II, front. Hex head adjustment; plus or minus 0.00 degree to plus or minus 4.0 degree camber and/or caster; with Dana 35 axle.

Common Alignment Issues It Can Address

• Front-end camber or caster that is out of specification after suspension service
• Steering pull caused by alignment angles that need correction
• Uneven tire wear related to incorrect front suspension geometry
• Alignment adjustment needs on Ford Super Duty, Econoline, Ranger, Explorer, and Bronco II platforms
• Front suspension setup changes after replacing worn steering or suspension components

Installation Notes and Tips

Install this bushing in the front suspension and set alignment angles to the vehicle’s specified range after installation. The hex head adjustment design is used to make camber and/or caster correction during a professional wheel alignment. Verify the exact vehicle application, including notes such as the Dana 35 axle requirement on the 1990 Ford Bronco II, before ordering or installing. For best results, complete a full alignment check after any suspension repair.

Quality Assurance

Mevotech MK80109 is built as an adjustable alignment bushing for direct-fit front suspension applications listed above. Its published dimensions and adjustment range provide the key specifications needed for application matching on Ford and Mazda vehicles.
