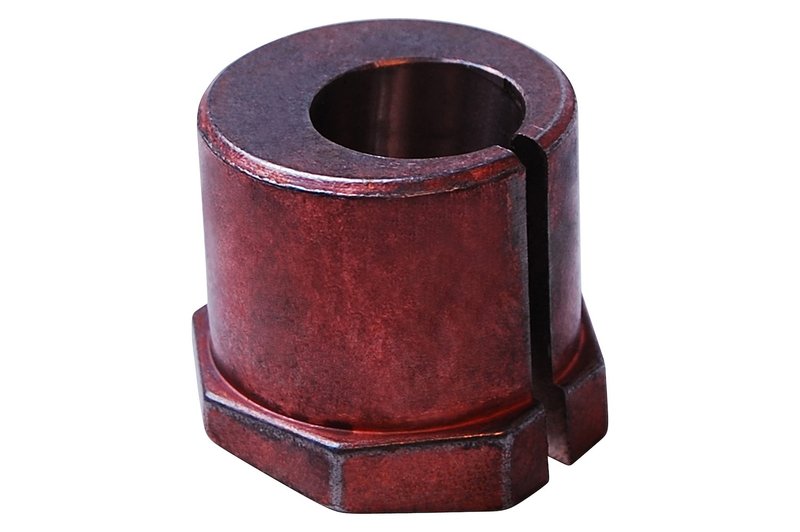

Mevotech MS40054 Alignment Caster / Camber Bushing - Front

Front Alignment Bushing for Super Duty Steering Geometry

Mevotech MS40054 is an adjustable alignment caster/camber bushing for the front suspension on Ford F-250 Super Duty and Ford F-350 Super Duty trucks. It is built for solid axle, coil spring applications and provides plus or minus 1.75 degrees of camber and/or caster adjustment to help set front-end alignment on 2005-2018 Ford Super Duty models.

Key Features

• Adjustable caster/camber bushing for front suspension alignment
• Fits 2005-2018 Ford F-250 Super Duty, front
• Fits 2005-2018 Ford F-350 Super Duty, front
• Hex head adjustment for alignment correction
• Plus or minus 1.75 degrees of camber and/or caster adjustment
• For solid axle, coil spring front suspension setups
• Inside diameter: 0.77 in.
• Outside diameter: 1.52 in.

Detailed Description

Mevotech MS40054 is an alignment caster/camber bushing used to fine-tune front suspension geometry on Ford F-250 Super Duty and Ford F-350 Super Duty trucks. This part number MS40054 is intended for vehicles with a solid axle and coil spring front suspension, where precise camber and caster correction is needed after service or alignment work. The hex head adjustment design allows the technician to set the required correction, and the application notes specify using sleeve MS40056 to determine the change needed before installing the correct sleeve. This part cross-references MOOG Chassis Products K80123 for the same application.

Common Alignment Issues It Can Address

• Front-end camber or caster readings outside specification
• Steering pull after suspension service
• Uneven tire wear caused by alignment angle error
• Difficulty bringing a Ford Super Duty into alignment range
• Front suspension geometry changes after component replacement

Installation Notes and Tips

Fits 2005-2018 Ford F-250 Super Duty, front, and 2005-2018 Ford F-350 Super Duty, front. Confirm the truck has a solid axle and coil spring front suspension before installation. The adjustment uses a hex head design, and the notes call for installing 0.00 degree sleeve MS40056 first to determine the change needed, then installing the correct sleeve for the final alignment setting. Verify alignment specifications after installation.

Quality Assurance

Mevotech manufactures suspension and steering components for alignment service applications, and MS40054 is built to support precise front-end adjustment on Ford Super Duty trucks. The listed dimensions and adjustment range help ensure the correct part is selected for the vehicle and suspension setup.
