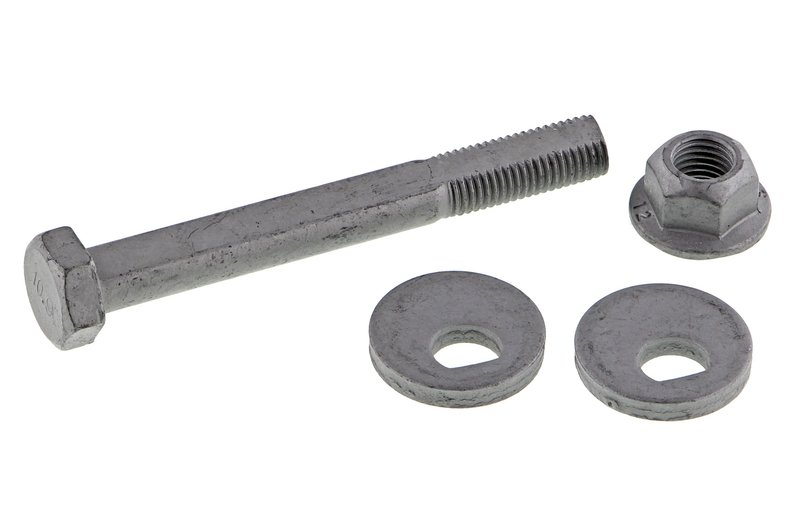

Mevotech MS500191 Alignment Cam Bolt Kit - Rear
OE Quality 60-Day Returns
Mevotech

Mevotech MS500191 Alignment Cam Bolt Kit - Rear

Brand Mevotech MS500191
Position Rear
Bolt Head Type Hexagonal
Adjustment Type Toe
Color Silver
Nut Included Yes
Bolt Length 3.9
Thread Size M12 - 1.5
Fits Buick and Cadillac · 23 vehicles

Toe adjustment kit. Helps fine-tune alignment settings with a cam bolt design.

Hexagonal bolt head. Provides a familiar wrenching surface for easier installation.

Nut included. Comes with the matching nut for a complete hardware kit.

Cross-references K100238 for the same application. See all 1.

$30.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $30.36
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Alignment Cam Bolt Kit options

Mevotech MS500191 Rear Toe Adjustment Cam Bolt Kit

Mevotech MS500191 is a rear alignment cam bolt kit built for toe adjustment on select Buick and Cadillac applications. It provides a direct service solution for rear suspension alignment correction where factory adjustment range is needed.

Key Features

  • Alignment cam bolt kit for rear toe adjustment
  • Hexagonal bolt head for standard service tool engagement
  • Silver finish
  • Thread size: M12 - 1.5
  • Bolt length: 3.9
  • Nut included
  • Interchanges with K100238

Fitment and Application Details

Compatible With rear toe adjustment applications on 2010-2018 Buick LaCrosse, rear; 2011-2017 Buick Regal, rear; 2010 Buick Allure, rear; 2014-2018 Cadillac XTS, rear; and 2013 Cadillac XTS, rear with notes for specific suspension configurations. This Mevotech MS500191 part number is used where rear toe correction is required within the listed factory adjustment range.

What This Part Helps Address

  • Rear toe alignment that is out of specification
  • Need for adjustment after suspension service
  • Alignment correction on vehicles with factory rear toe adjustment provisions
  • Replacement of worn or serviceable alignment hardware
  • Restoring proper rear wheel tracking on Buick LaCrosse, Buick Regal, and Cadillac XTS applications

Installation Notes and Tips

Verify suspension configuration before ordering, especially on Cadillac XTS and Buick LaCrosse applications with performance suspension exclusions. Install using the correct rear alignment procedure and torque specifications for the vehicle. After installation, perform a professional wheel alignment to confirm rear toe settings are within specification. Mevotech MS500191 should be matched to the exact application notes listed for the vehicle.

Quality Assurance

Mevotech is a recognized suspension and steering parts brand with OE-style service hardware offerings. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

This part fits 23 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2018BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2018CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2017BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2017BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2017CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2016BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2016BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2016CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2015BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2015BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2015CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2014BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2014BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2014CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2013BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2013BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2013CadillacXTS—RearToe Adjustment Plus or Minus 2.00 Degree(s); without High Performance Suspension (California)
2012BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2012BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2011BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2011BuickRegal—RearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2010BuickAllureFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
2010BuickLaCrosseFWDRearToe Adjustment Plus or Minus 2.00 Degree(s); without Performance Suspension
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
K100238
