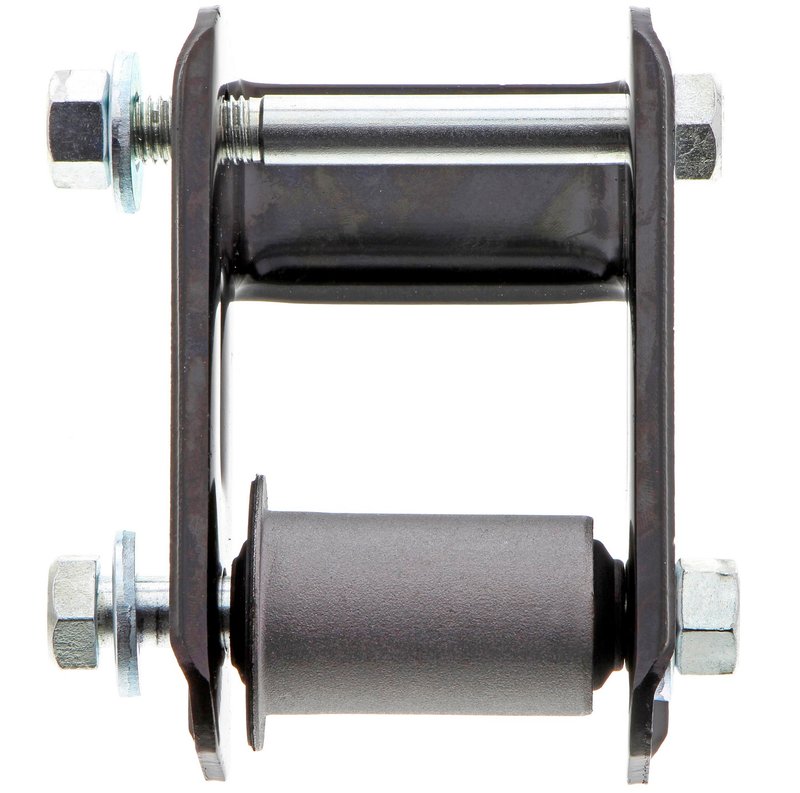

Mevotech MS500314 Leaf Spring Shackle - Rear
| Brand | Mevotech MS500314 |
|---|---|
| Position | Rear |
| Bolt Material | Steel |
| Bushing Color | Black |
| Mounting Hardware Included | Yes |
| Bushing Included | Yes |
| Bolt Quantity | 2 |
| Bushing Quantity | 1 |
| Fits | Chevrolet, GMC, and Oldsmobile · 54 vehicles |
Leaf spring shackle. Connects the spring for a secure suspension pivot point.
Steel bolt construction. Provides a strong, durable mounting connection.
Hardware included. Comes ready for a more complete repair.
Cross-references Mevotech Supreme MS500314, MOOG Chassis Products K150382 and 15665302 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Leaf Spring Shackle for S10 and Blazer
Mevotech MS500314 is a rear leaf spring shackle built for select Chevrolet, GMC, and Oldsmobile applications. It includes a steel bolt, one black bushing, and mounting hardware for a direct replacement on the rear suspension.
Key Features
- Leaf spring shackle for rear suspension service
- Steel bolt material for strength and durability
- Black bushing included
- One bushing and two bolts included
- Mounting hardware included
- Mevotech MS500314 replacement part
Detailed Description
Mevotech MS500314 is a rear leaf spring shackle for vehicles using a leaf spring rear suspension. It is compatible with 1994-2005 Chevrolet Blazer, 1994-2004 Chevrolet S10, 1994-2005 GMC Jimmy, 1994-2004 GMC Sonoma, and 1994 and 1996-2001 Oldsmobile Bravada rear applications. This part cross-references MOOG Chassis Products K150382 for the same application. Use Mevotech MS500314 when replacing worn rear shackle components on Chevrolet S10, GMC Sonoma, or Blazer rear suspension systems.
Common Repair Uses
- Rear suspension noise from worn shackle bushings
- Loose or unstable leaf spring mounting points
- Corrosion or wear in the rear shackle assembly
- Uneven rear suspension movement
- Replacement of damaged OE-style shackle hardware
Installation Notes and Tips
Install on the rear suspension only and verify vehicle year, make, and model before ordering. Inspect the leaf spring eye, mounting points, and surrounding hardware for wear or corrosion during replacement. Torque fasteners to the vehicle manufacturer’s specifications after installation.
Quality Assurance
Mevotech Supreme parts are built for service replacement applications and are engineered to match the needs of the listed rear suspension fitments. Confirm fitment by vehicle application before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Chevrolet | Blazer | Rear | — |
| 2005 | GMC | Jimmy | Rear | — |
| 2004 | Chevrolet | Blazer | Rear | — |
| 2004 | Chevrolet | S10 | Rear | — |
| 2004 | GMC | Jimmy | Rear | — |
| 2004 | GMC | Sonoma | Rear | — |
| 2003 | Chevrolet | Blazer | Rear | — |
| 2003 | Chevrolet | S10 | Rear | — |
| 2003 | GMC | Jimmy | Rear | — |
| 2003 | GMC | Sonoma | Rear | — |
| 2002 | Chevrolet | Blazer | Rear | — |
| 2002 | Chevrolet | S10 | Rear | — |
| 2002 | GMC | Jimmy | Rear | — |
| 2002 | GMC | Sonoma | Rear | — |
| 2001 | Chevrolet | Blazer | Rear | — |
| 2001 | Chevrolet | S10 | Rear | — |
| 2001 | GMC | Jimmy | Rear | — |
| 2001 | GMC | Sonoma | Rear | — |
| 2001 | Oldsmobile | Bravada | Rear | — |
| 2000 | Chevrolet | Blazer | Rear | — |
| 2000 | Chevrolet | S10 | Rear | — |
| 2000 | GMC | Jimmy | Rear | — |
| 2000 | GMC | Sonoma | Rear | — |
| 2000 | Oldsmobile | Bravada | Rear | — |
| 1999 | Chevrolet | Blazer | Rear | — |
| 1999 | Chevrolet | S10 | Rear | — |
| 1999 | GMC | Jimmy | Rear | — |
| 1999 | GMC | Sonoma | Rear | — |
| 1999 | Oldsmobile | Bravada | Rear | — |
| 1998 | Chevrolet | Blazer | Rear | — |
| 1998 | Chevrolet | S10 | Rear | — |
| 1998 | GMC | Jimmy | Rear | — |
| 1998 | GMC | Sonoma | Rear | — |
| 1998 | Oldsmobile | Bravada | Rear | — |
| 1997 | Chevrolet | Blazer | Rear | — |
| 1997 | Chevrolet | S10 | Rear | — |
| 1997 | GMC | Jimmy | Rear | — |
| 1997 | GMC | Sonoma | Rear | — |
| 1997 | Oldsmobile | Bravada | Rear | — |
| 1996 | Chevrolet | Blazer | Rear | — |
| 1996 | Chevrolet | S10 | Rear | — |
| 1996 | GMC | Jimmy | Rear | — |
| 1996 | GMC | Sonoma | Rear | — |
| 1996 | Oldsmobile | Bravada | Rear | — |
| 1995 | Chevrolet | Blazer | Rear | — |
| 1995 | Chevrolet | S10 | Rear | — |
| 1995 | GMC | Jimmy | Rear | — |
| 1995 | GMC | Sonoma | Rear | — |
| 1994 | Chevrolet | Blazer | Rear | — |
| 1994 | Chevrolet | S10 | Rear | — |
| 1994 | Chevrolet | S10 Blazer | Rear | — |
| 1994 | GMC | Jimmy | Rear | — |
| 1994 | GMC | Sonoma | Rear | — |
| 1994 | Oldsmobile | Bravada | Rear | — |
